KK 120 + KM A

与其前身KM 100系列相比，新系统KM A / D可与体积较小的无源话筒头搭配使，同时保留了经典的声学设计。
全新的电子组件具有许多电声和操作优势，例如本底噪声降低、动态范围更大和非常高的抗电磁干扰性能。

The modular concept permits the capsule to be detached and used at a distance from the output stage of up to 100 m (330 ft), connected via a special cable. For usual applications, the LC 4 cable is available with a length of 5 or 10 meters (ca. 16½ or 33 ft.). Alternatively, capsule extensions of various lengths, swivel capsule joints, and swivel stand mounts, etc. may be used for a flexible microphone setup. The analog and digital output stages have identical dimensions (diameter: 22 mm, length: 93 mm). All accessory parts may thus be combined with both output stages.

A lot of examples for using the accessory portfolio can be found here.

The Output Stages

The analog, transformerless output stage KM A operates with P48 phantom power. A switchable -10 dB preattenuation allows for sound pressure levels of up to 152 dB (depending on capsule type) without distortion artifacts.

The digital output stage KM D is compliant to the AES 42 standard and opens entirely new possibilities, unattainable in the analog domain. The integrated DSP permits remote control of microphone parameters, such as digital gain, preattenuation (6, 12, 18 dB) and low cut (0, 40, 80, 160). An integrated peak limiter and a compressor/limiter with an additional de-esser function protect the audio signal from overload. Neumann’s patented A/D-converter technology ensures a very high dynamic range of up to 122 dB-A across the entire digital production chain.

At any time the user may opt to work in the analog or digital domain, without the expense of a complete system change, simply by using the KM A or KM D output stage. More information on Neumann’s digital microphone technology is available here.

Two popular combinations are available as complete sets with capsule, output stage and swivel mount: KM 183 A nx and KM 184 A nx. Any other components are offered separately.

Compability with the Neumann KM 100 System

On special request, a mechanical adapter (AR 100 KA) can be supplied for use of older KM 100 capsules (AK series) with the KM A and KM D output stages.

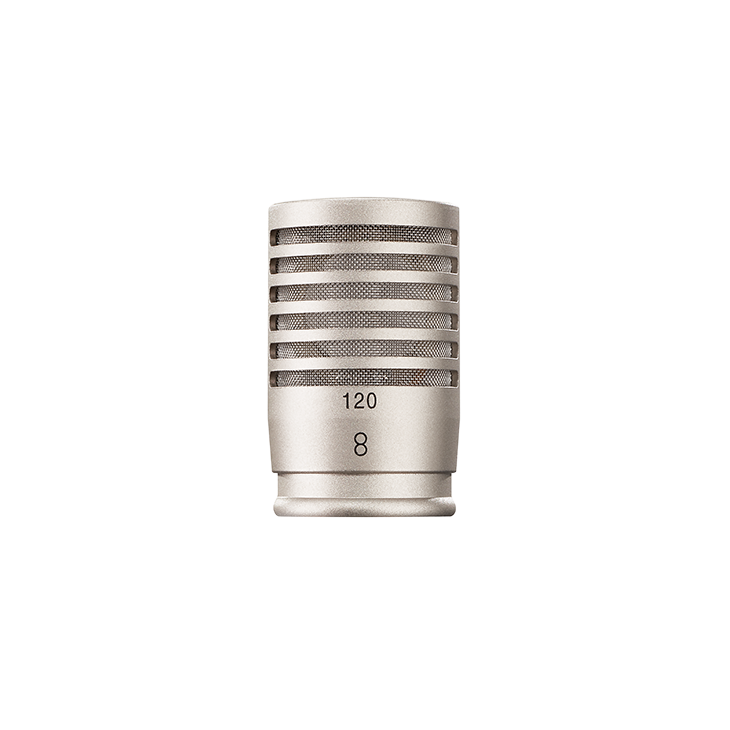

KK 120话筒头

KK 120是一种压力梯度式换能器，具有八字指向和侧向进声的特性。利用单个16 mm膜片实现八字指向。因此，所有声场能量均可直接到达膜片。所以，0°和180°的频率响应曲线和灵敏度相同。KK 120话筒头可与其他话筒头/话筒组合用于MS立体声录音。

The digital Neumann microphone technology (Solution-D) will no longer be part of the Neumann product portfolio from 2021. Last order date for dealers will be 31 July 2020. After that, the products will be available as long as stock lasts. Service for all Solution-D hardware products is guaranteed until 31 Dec 2030.

The Remote Control Software (32 Bit, available also as VST plug-in) for the digital Neumann microphones is compatible with Windows 98SE – Windows 10 and Mac OS 8.6 – Mac OS X 10.14.6. There will be no further updates of the RCS software.
