录音棚话筒

TLM 103 Studio Set

现代录音棚标杆

  • 话筒头设计源于具有传奇色彩的U 87 A
  • 均匀一致的心形指向
  • 临场感提升,提高了声音解析度
  • 非常低的本底噪声

颜色

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

适合于:

Max. SPL
138 dB
S/N Ratio
87 dB
Sensitivity
23 mV/Pa

现代经典

TLM 103已迅速成为诺音曼历史上最成功的作品之一。它质朴、清晰的声音是对经典U 87的一次现代化更新。TLM 103是一款无变压器心形指向电容话筒,频响曲线对临场感具有柔和的提升,能够以惊人的清晰度和超低噪声拾取震撼人心的真实声音。

新标杆

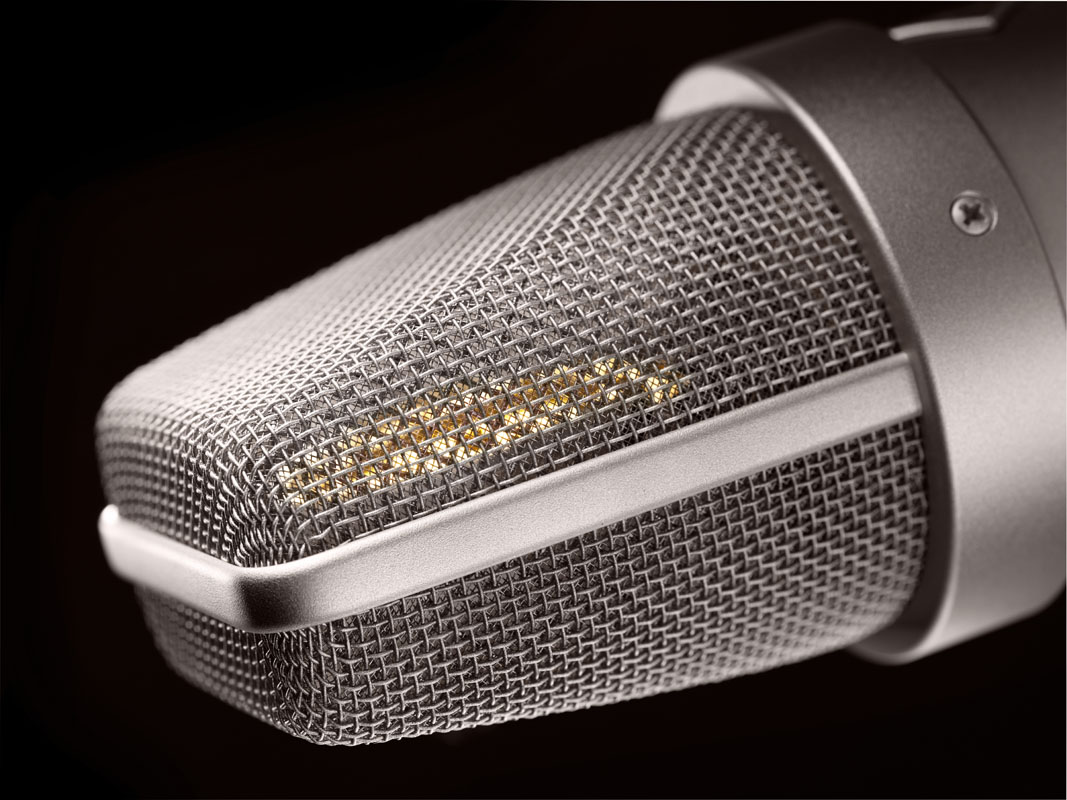

TLM 103于1997年作为经典的U 87的经济型替代品推出后备受喜欢迎,这便TLM 103也成为一款现代经典之作。今天,TLM 103定义了当代录音棚话筒的新标准。经典的锥形话筒罩网设计赋予了TLM 103 诺音曼所独有的外观。

TLM 103是一款带有大振膜电容话筒头的心形话筒,设计灵感源自具有传奇色彩的诺音曼 U 87的经典K67/87话筒头。然而,TLM 103的发声更具现代感, 5kHz以上的频率有均匀的临场感提升。它的声音直接而精致,非常适合人声,也能让独奏乐器毫不费力地从混音中凸显出来。当然,TLM 103还拥有诺音曼标志性的中频表现,这也是所有诺音曼话筒成为全球录音室首选的首要原因。TLM 103的一个独特之处是其极为出色的深沉而弹性的低频部分,非常适合浑厚的声音和强大的低音乐器。

技术卓越

TLM 103也为技术性能设定了新标准。它的本底噪声非常低,只有7 dB-A,是目前最安静的话筒之一。它的灵敏度高达23 mV / Pa,即使配套使用价格低廉的前置放大器和音频接口或老式电子管设备,也能确保超低噪音。同时,TLM 103可以处理高达138 dB的巨大声压级,而无需启用预衰减。TLM 103拥有131 dB的巨大动态范围,可以捕捉从轻柔的耳语到雷鸣般的低音鼓的任何声音,同时不会增加噪音或失真,这使得它成为一款非常易于使用的录音棚话筒。

作为诺音曼 TLM系列的一员,TLM 103采用无变压器输出级,可最大限度地减少传输损耗,并确保与原始声音一致的无失真的声音,以及清晰、强大的低频响应,即使在最高信号电平下也是如此。

应用

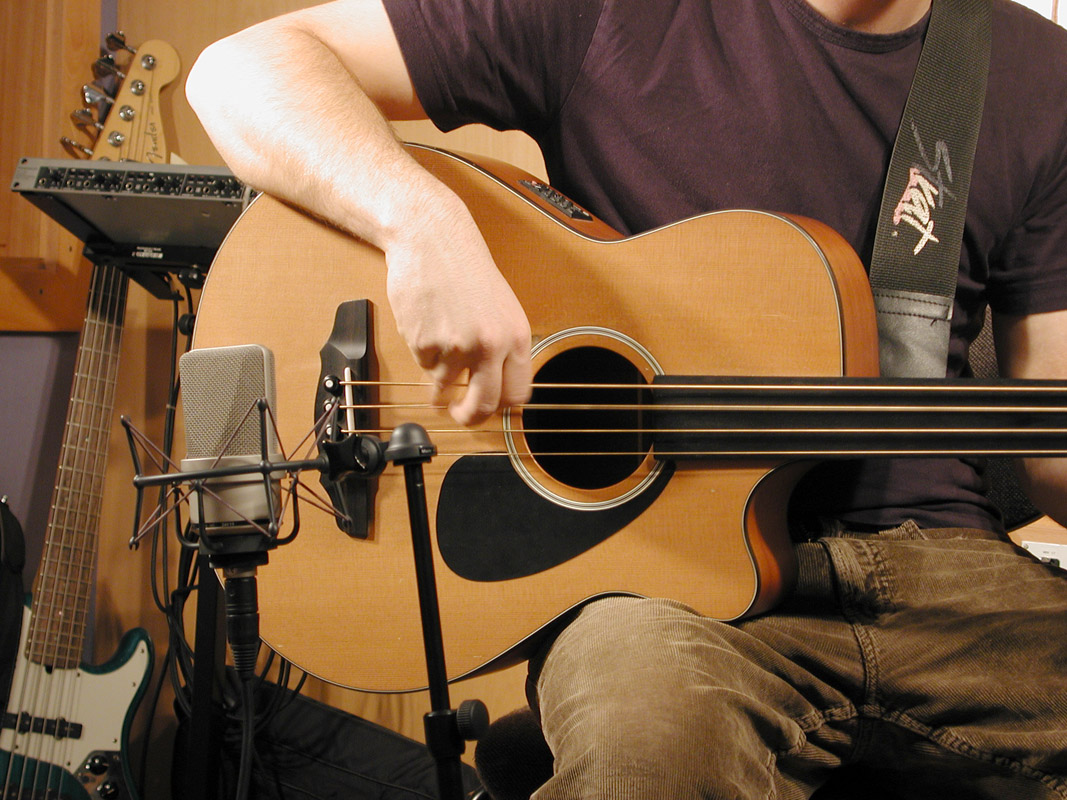

TLM 103主要面向小型录音棚和广播电视应用而设计,但由于其出色的性能,该产品很快被知名录音室所接受,作为U 87的更现代的替代品,其用途包括语音、人声、鼓、吉他放大器和钢琴等方面。TLM 103也经常用于古典音乐录音——例如大提琴和低音提琴的点话筒。

  • 大振膜电容话筒头的设计灵感源自经典U 87话筒头
  • 平衡的声音,具有增强的临场感
  • 心形模式
  • 无变压器电路,具有极高的声压级
  • 极低的本底噪声:只有7 dB-A
Acoustical operating principle Pressure gradient transducer
Directional Pattern Cardioid
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm 23 mV/Pa = –32.5 dBV ± 1 dB
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR¹⁾ 17.5 dB
Equivalent noise level, A-weighted¹⁾ 7 dB-A
Maximum SPL for THD 0.5%²⁾ 138 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 76.5 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 87 dB
Maximum output voltage 13 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3 mA
Matching connector XLR 3 F
Weight approx. 450 g
Diameter 60 mm
Length 132 mm

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Cardioid TLM 103

Cardioid TLM 103 Cardioid TLM 103
TLM 49 Set

EA 1

Shock Mount

EA 1
TLM 49 Set

EA 4

Shock Mount

EA 4
TLM 49 Set

PS 15

Popscreen

PS 15
TLM 49 Set

PS 20 a

Popscreen

PS 20 a
TLM 49 Set

WS 87

Windscreen

WS 87
TLM 49 Set

MF 3

Table Stand

MF 3
TLM 49 Set

MF 4

Floor Stand

MF 4
TLM 49 Set

MF 5

Floor Stand

MF 5
TLM 49 Set

STV 4

Stand Extension

STV 4
TLM 49 Set

STV 20

Stand Extension

STV 20
TLM 49 Set

STV 40

Stand Extension

STV 40
TLM 49 Set

STV 60

Stand Extension

STV 60
TLM 49 Set

Z 26 mt

Shock mount

Z 26 mt
TLM 49 Set

MNV 87

Auditorium Hanger

MNV 87
TLM 49 Set

DS 120

Double Mount

DS 120
TLM 49 Set

SG 2

Stand Mount

SG 2
TLM 49 Set

IC 3 mt

Microphone Cable

IC 3 mt
TLM 49 Set

IC 4

Microphone Cable

IC 4

TLM 103

Color nickel

CAT. NO. 8430

TLM 103
  • TLM 103 Microphone
  • SG 2 Swivel Mount
  • Wooden Box

TLM 103 mt

Color black

CAT. NO. 008431

TLM 103 mt
  • TLM 103 mt Microphone
  • SG 2 Swivel Mount
  • Wooden Box

TLM 103 Mono Set

Color nickel

CAT. NO. 008508

TLM 103 Mono Set
  • TLM 103 Microphone
  • EA 1 Shock Mount
  • Aluminium Case

TLM 103 mt Mono Set

Color black

CAT. NO. 008509

TLM 103 mt Mono Set
  • TLM 103 mt Microphone
  • EA 1 mt Shock Mount
  • Aluminium Case

TLM 103 Stereo Set

Color nickel

CAT. NO. 008501

TLM 103 Stereo Set
  • 2 x TLM 103 Microphone
  • 2 x EA 1 Shock Mount
  • Aluminium Case

TLM 103 mt Stereo Set

Color black

CAT. NO. 008502

TLM 103 mt Stereo Set
  • 2 x TLM 103 mt Microphone
  • 2 x EA 1 mt Shock Mount
  • Aluminium Case

TLM 103 Studio Set

Color nickel

CAT. NO. 008545

TLM 103 Studio Set
  • TLM 103 Microphone
  • EA 1 Shock Mount

TLM 103 mt Studio Set

Color black

CAT. NO. 008544

TLM 103 mt Studio Set
  • TLM 103 mt Microphone
  • EA 1 mt Shock Mount
