Reliable Monitoring Anywhere
Neumann’s Automatic Alignment software MA 1 is a dedicated tool for aligning network-enabled KH Line monitors in stereo systems and stereo systems with Bass Management via an additional subwoofer. Non-network-enabled (analog) KH Line monitors can be aligned via MA 1 when connected to a KH 750 DSP/AES67 subwoofer.
Unlike conventional correction software, MA 1 is an integrated solution with novel algorithms, specifically designed for Neumann studio monitors. No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered loudspeakers themselves. For analog Neumann studio monitors (i.e. without a network port) connected to a KH 750 DSP/AES67 subwoofer, MA 1 offers the added benefit of linearizing the phase response, too. This feature, which is already built into all network-enabled loudspeakers with digital electronics, is made possible for analog Neumann studio monitors by the KH 750’s DSP capabilities. The result is further increased accuracy in terms of tonality, impulse reproduction, and stereo localization.
How it works

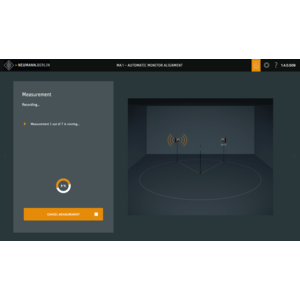

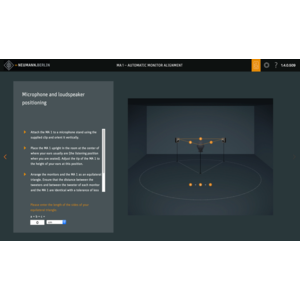

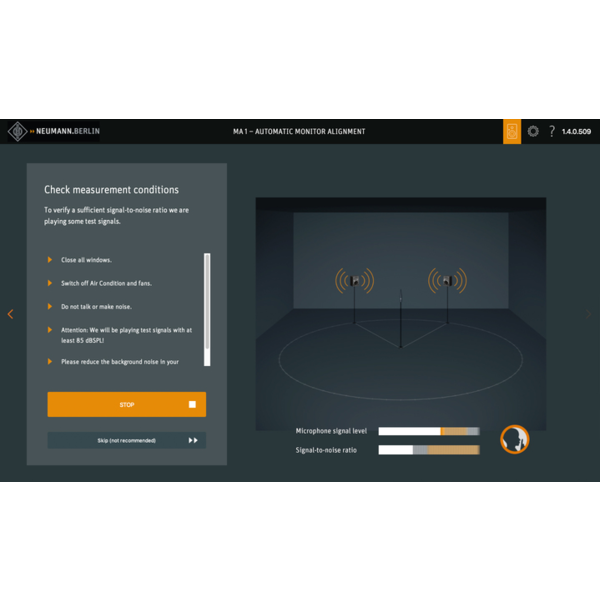

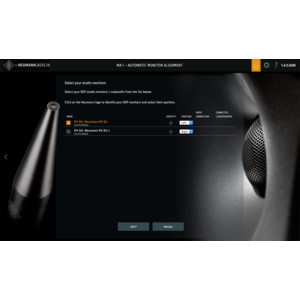

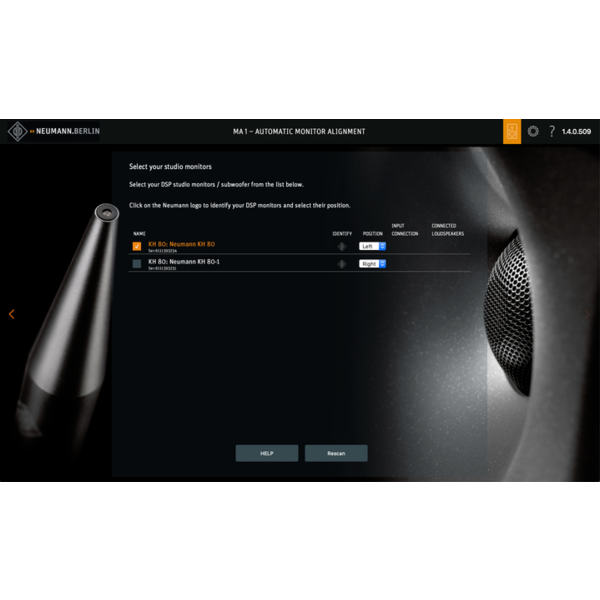

As a first step, the performance of each monitor in the listening environment is gathered in a guided process. No special acoustics knowledge is required. Simply connect your KH line monitors to the outputs and the MA 1 microphone to the input of your audio interface. This Class I measurement microphone was specifically developed for this software and comes individually calibrated. For communication, the network-enabled KH-line monitors must also be connected to your computer via a network, a standard ethernet switch supporting IPv6 will do.

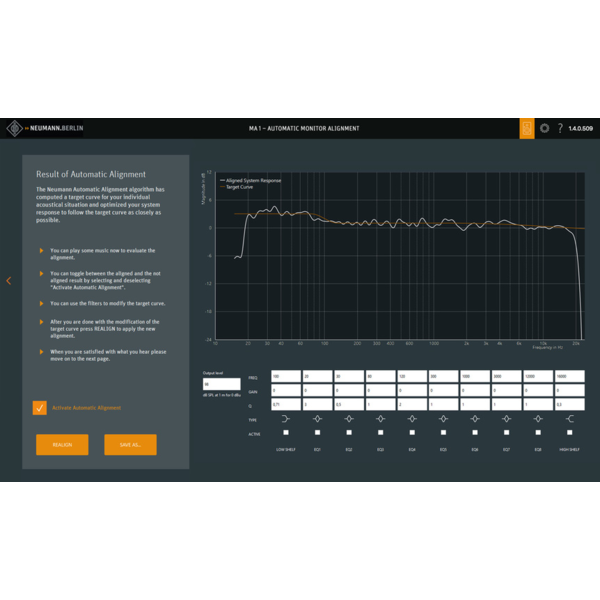

From the measurement data, the software ascertains the room’s acoustic properties. The individual correction parameters are generated according to a room-specific target curve calculated by MA 1. Decades of experience in aligning reference monitoring systems in studio control rooms has been incorporated into this process. Of course, you can modify the target curve to your needs.
When using Bass Management in stereo systems, the alignment algorithm ensures optimal summation between subwoofers and satellites. This achieves optimized time-of-arrival- and
phase-correct combination of the monitors and the subwoofer, thus preventing the subwoofer from being perceived as a separate sound source. The result is a unified playback system.
Multiple hardware systems and alignments can be conveniently saved, managed and recalled in MA 1.
All alignment parameters are stored and processed in the network-enabled monitors. So, once aligned, there is nothing to worry about anymore, no plug-ins, no driver issues.
After alignment, the ethernet connections can be removed from a technical perspective. However, keeping the network connections, the MA 1 software allows for advanced functions such as deactivating the subwoofer(s) or switching between different alignment presets (e.g. with a modified target curve).
For more information, please refer to the MA 1 user manual: https://ma1.neumann.com/manual.
Multichannel Extension
MA 1 Automatic Monitor Alignment delivers outstanding acoustic results for stereo setups. For aligning surround and immersive setups, Multichannel Extension for MA 1 is available as a paid extra license. For detailed information on Multichannel Extension for MA 1, go here.
