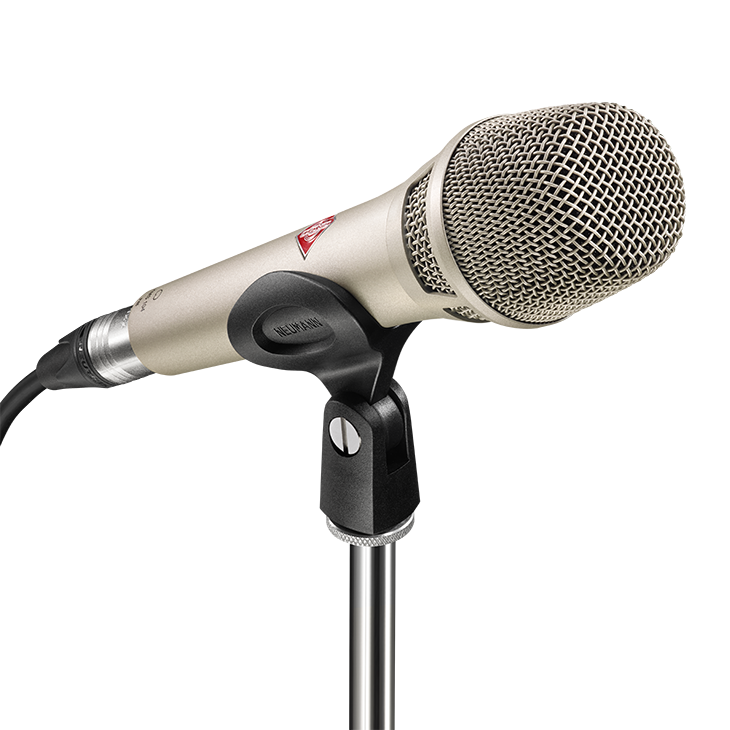

Stage Microphone

KMS 104

Studio grade stage microphone for vocalists. Cardioid pickup pattern.

  • Cardioid pattern with excellent feedback rejection
  • Studio quality condenser capsule
  • Transparent sound with a gentle treble lift
  • Excellent pop protection

COLORS AND VARIANTS

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

Suited for:

Max. SPL
150 dB
S/N Ratio
76 dB
Sensitivity
4.5 mV/Pa
Error displaying content.
Acoustical operating principle Pressure gradient transducer
Current consumption (P48, IEC 61938) 3.5 mA
Diameter 48 mm
Directional Pattern Cardioid
Equivalent noise level, A-weighted¹⁾ 18 dB-A
Equivalent noise level, CCIR¹⁾ 28 dB
Frequency Range 20 Hz ... 20 kHz
Length 180 mm
Matching connector XLR 3 F
Maximum SPL for THD 0.5% 150 dB
Maximum output voltage 12 dBu
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Sensitivity at 1 kHz into 1 kohm 4.5 mV/Pa ± 1 dB equ. -47 dBV
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 76 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 66 dB
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Weight approx. 300 g

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Cardioid KMS 104

IC 3 mt

Microphone Cable

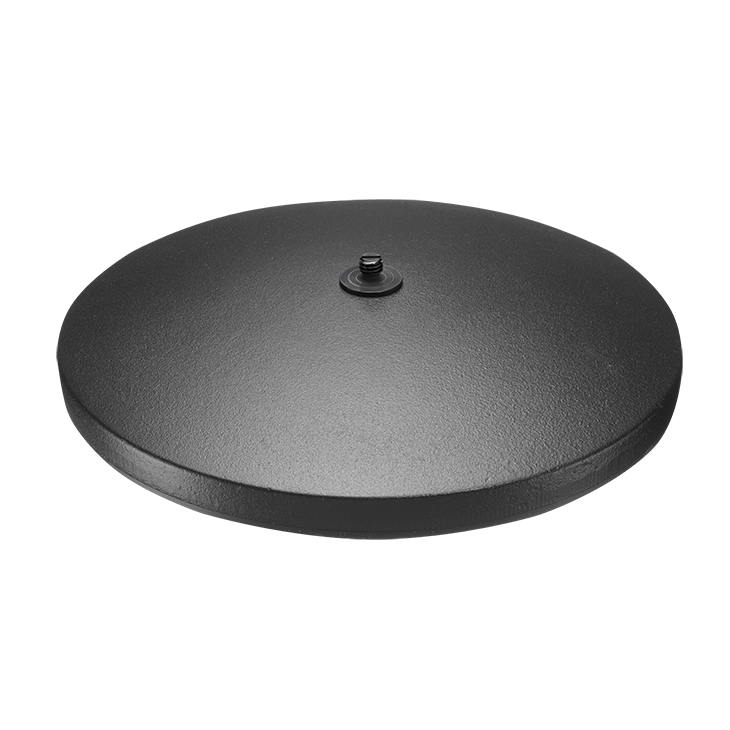

MF 3

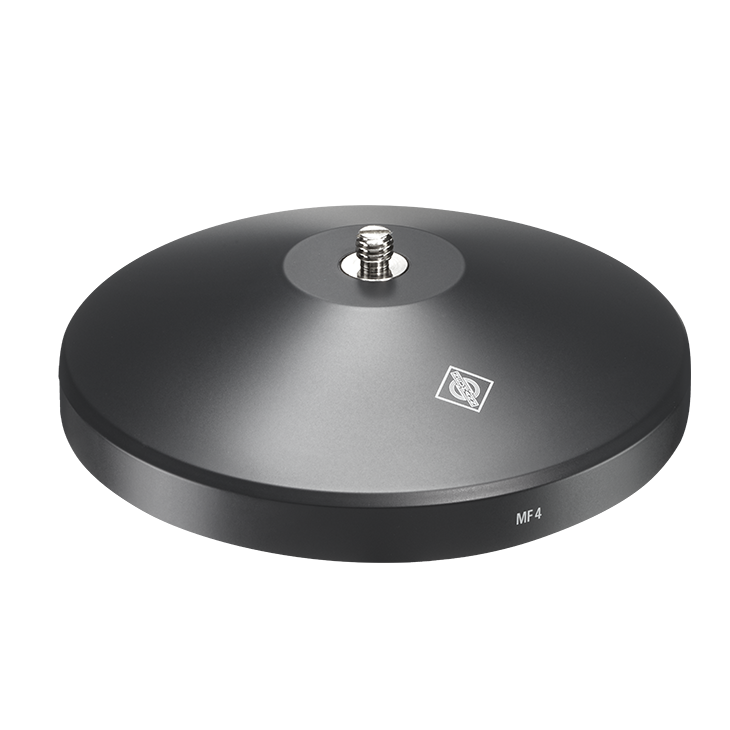

Table Stand

MF 4

Floor Stand

MF 5

Floor Stand

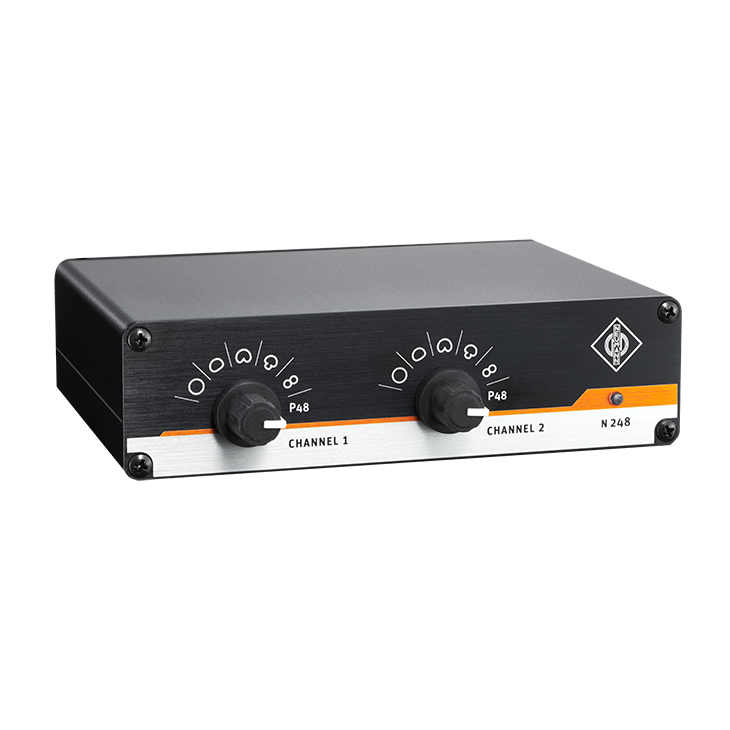

N 248

Power Supply

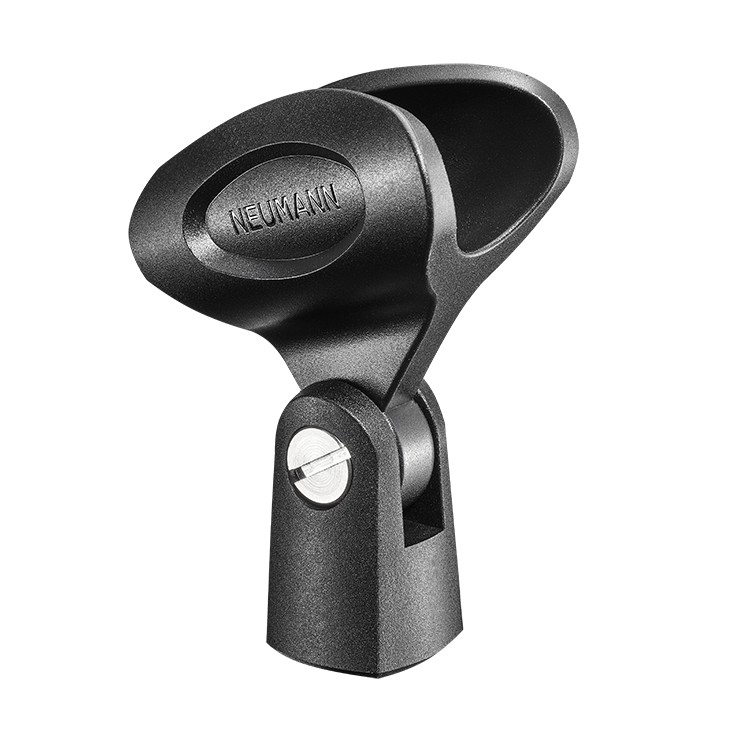

SG 105

Stand Mount

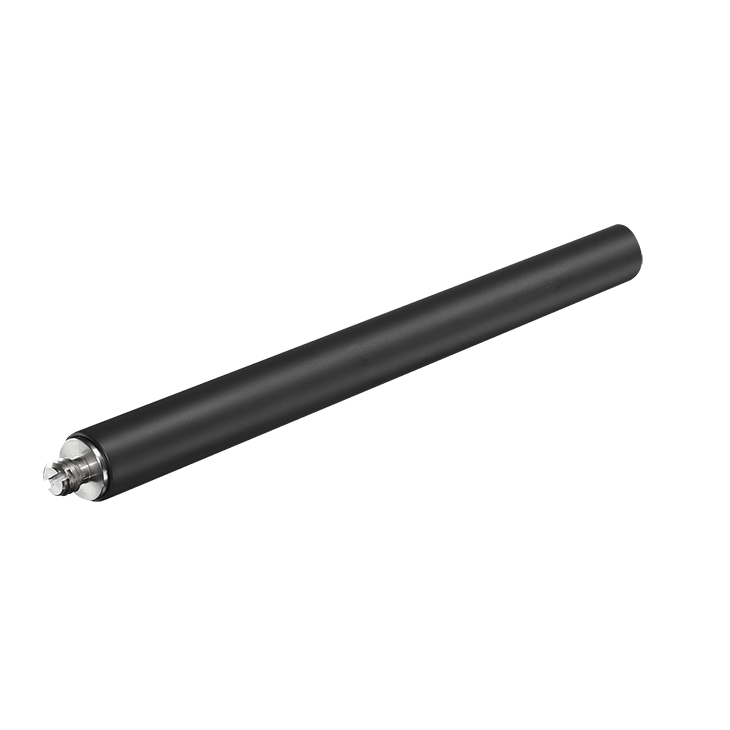

STV 20

Stand Extension

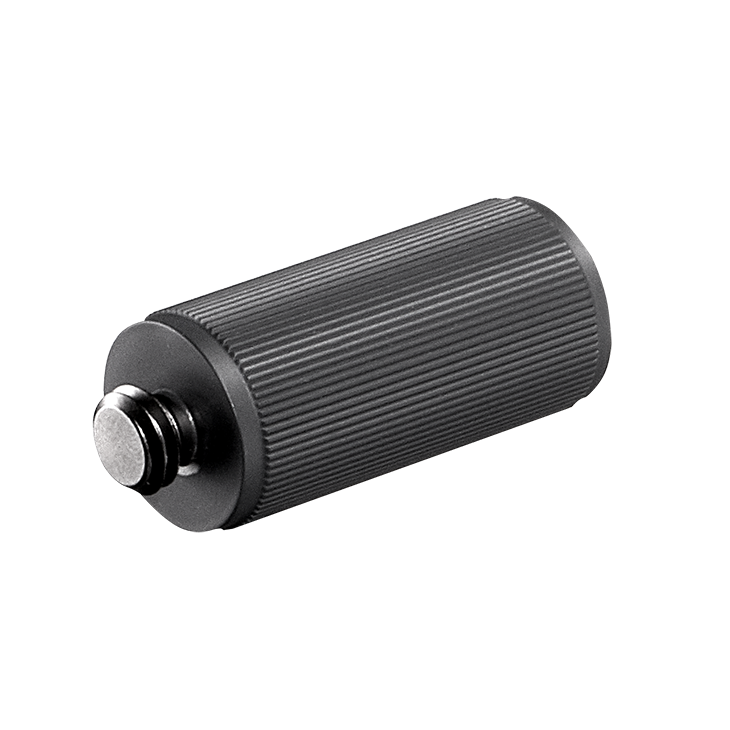

STV 4

Stand Extension

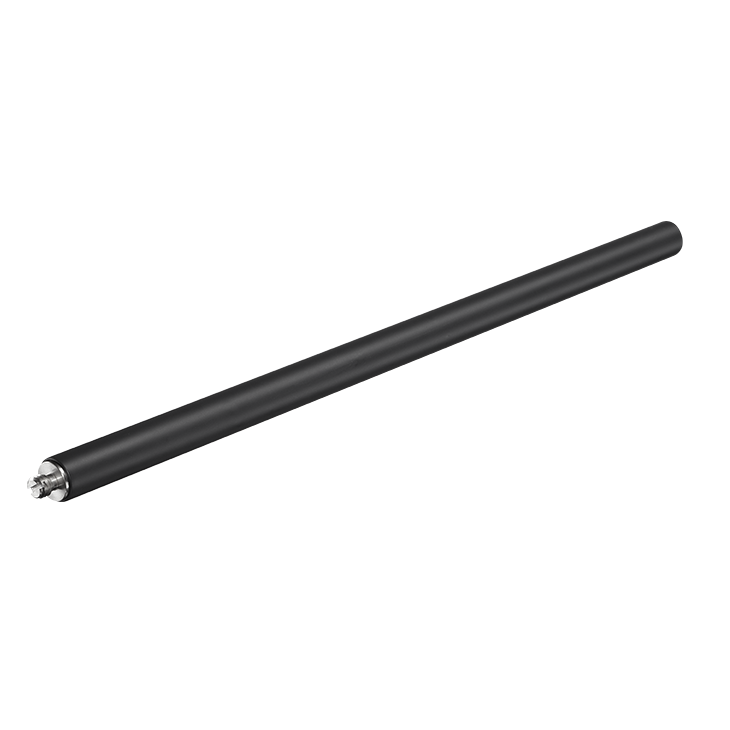

STV 40

Stand Extension

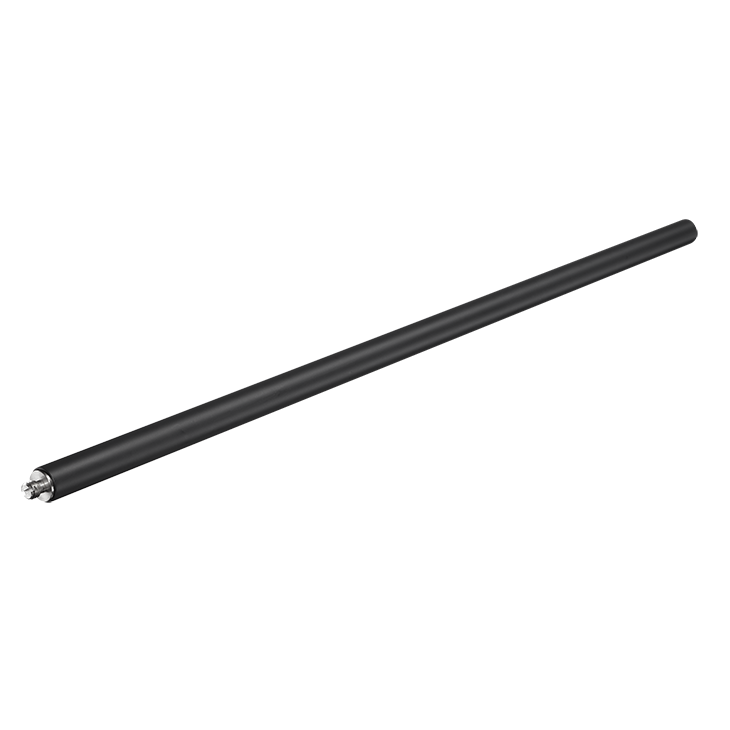

STV 60

Stand Extension

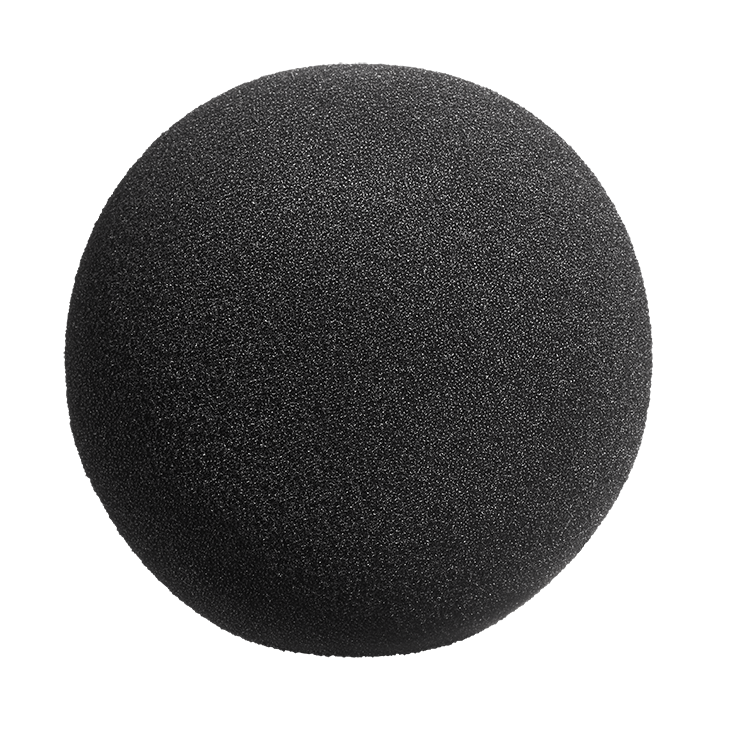

WSS 100

Windscreen

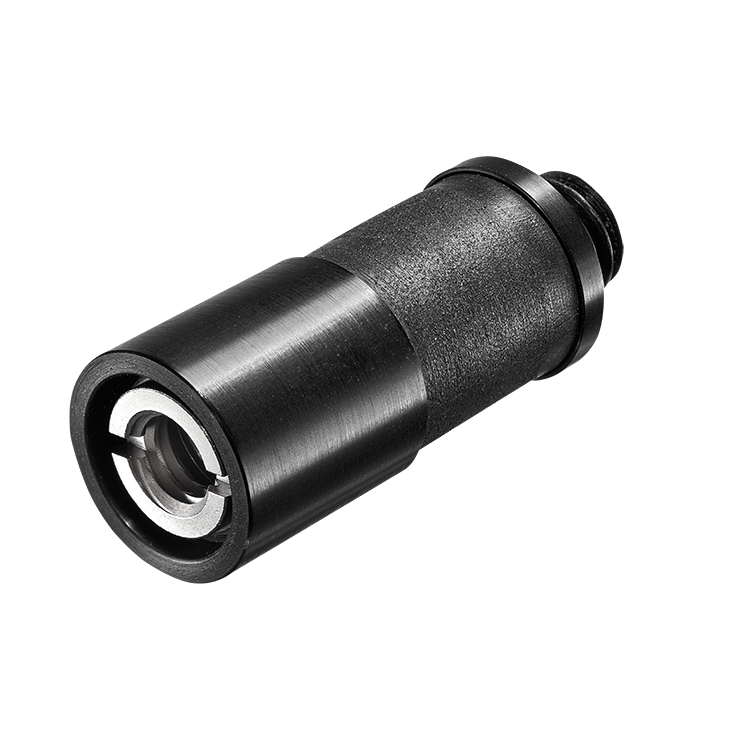

Z 26 mt

Shock mount

DOWNLOADS

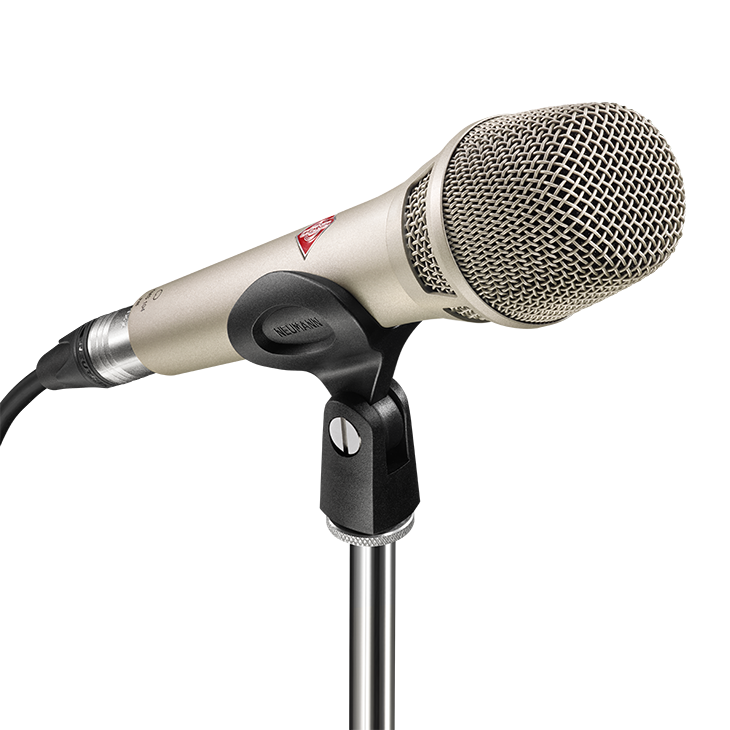

KMS 104

Color nickel

CAT. NO. 008548

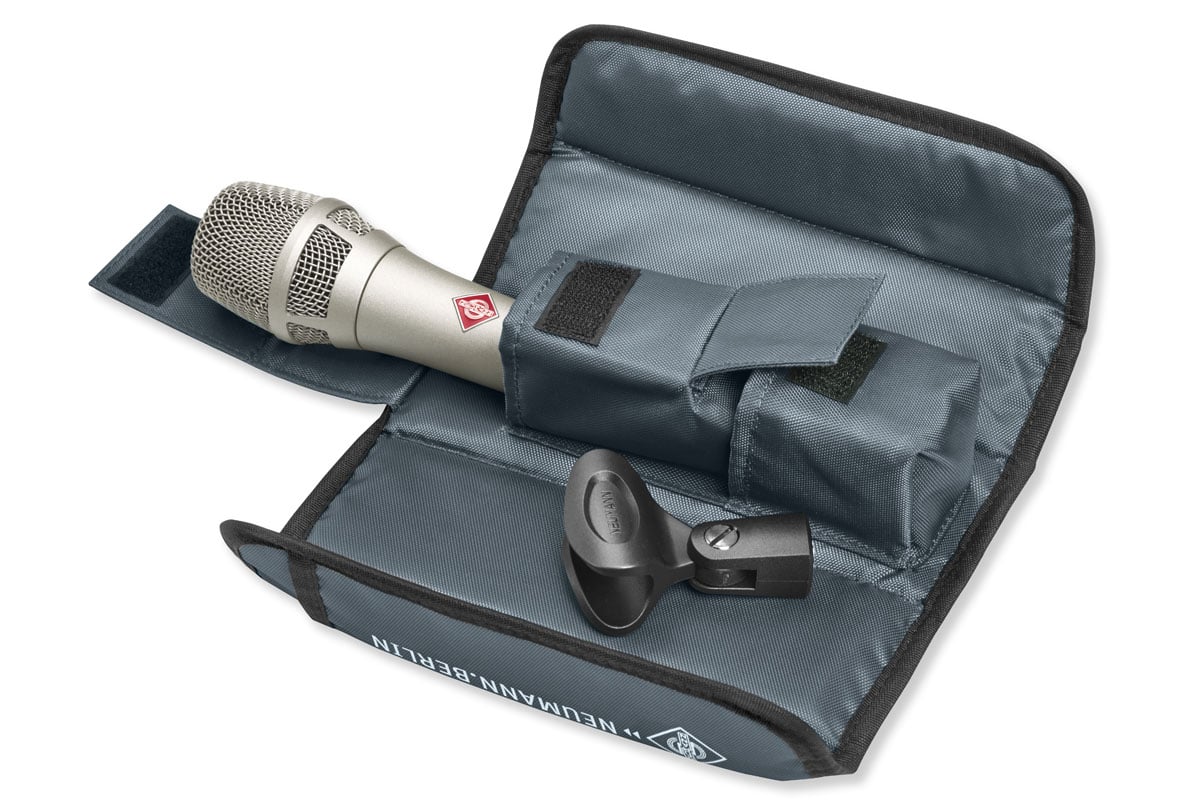

  • KMS 104 Microphone
  • SG 105 Stand clamp

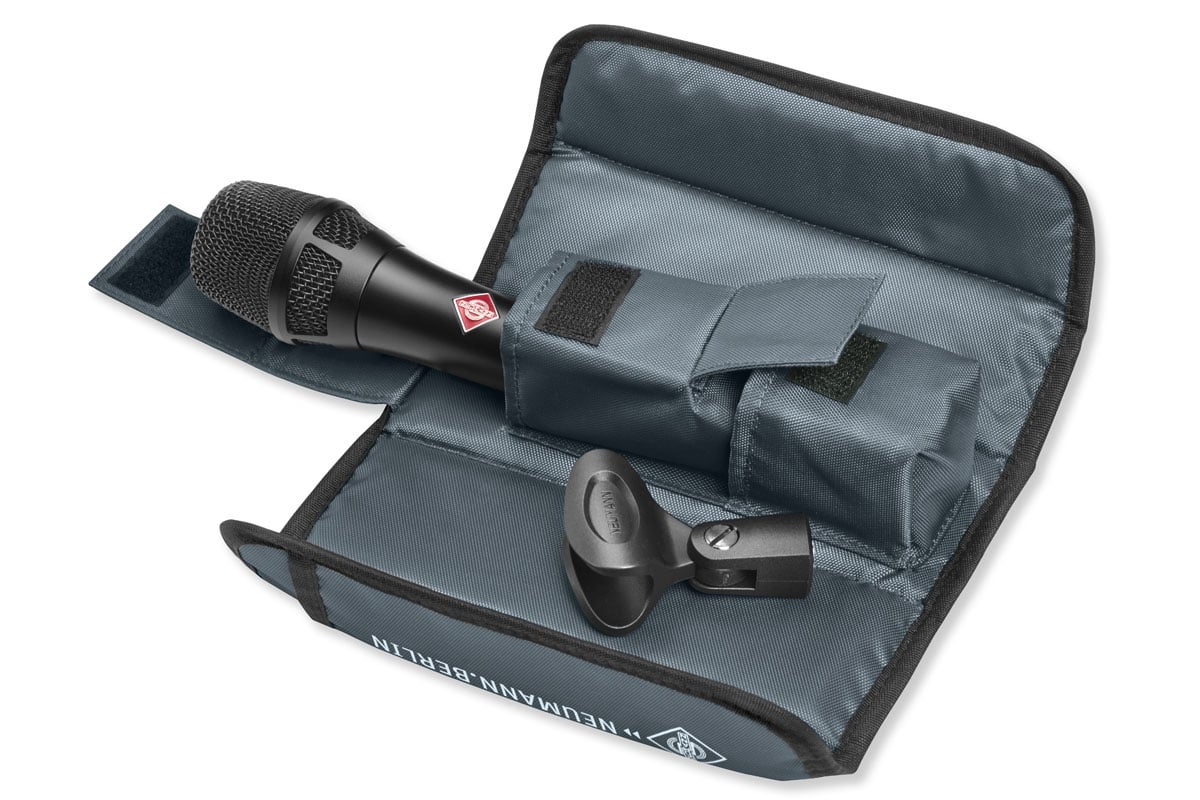

  • Padded nylon bag

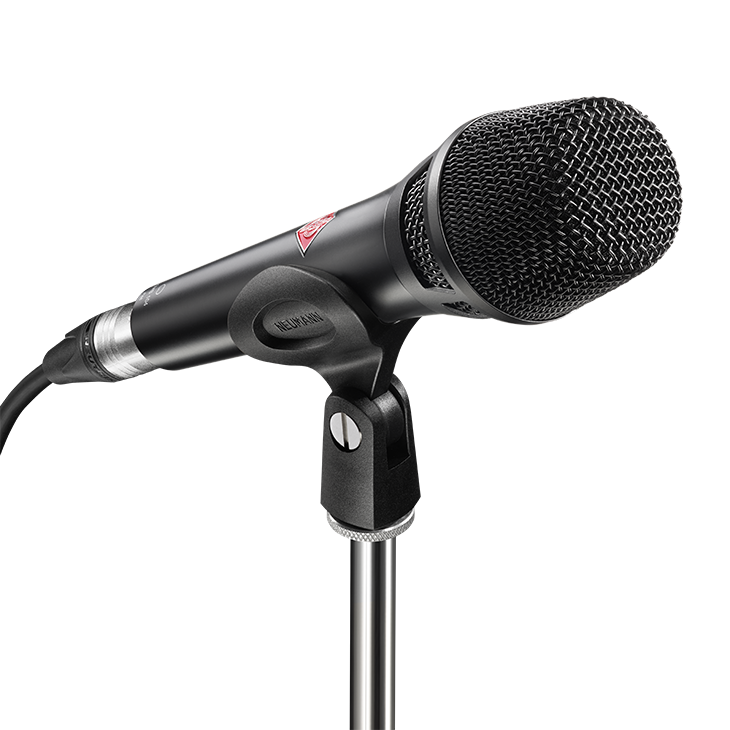

KMS 104 bk

Color black

CAT. NO. 008549

  • KMS 104 bk Microphone
  • SG 105 Stand clamp
  • Padded nylon bag
