The M 147 Tube brings back the classic sound of Neumann’s famous tube microphones of the 1950s. The M 147 tube is a cardioid microphone using the same large diaphragm capsule as the legendary U 47 but combines it with an innovative tube circuit for lowest noise. Its transformerless output stage ensures superb performance at an attractive price.
With digital recording and ultra-clean processing, many engineers find themselves looking for tube microphones to reinstate a more “analogue” sound character. The Neumann M 147 is a tube microphone specially designed for 21st century recording chains. Its acoustic design is inspired by the legendary U 47, which revolutionized studio recording in the 1950s with its superior sound quality and is still used daily in top studios around the world. The head amplifier of the M 147 combines classic tube circuitry with an advanced solid state output stage for vintage sound with a modern punch.

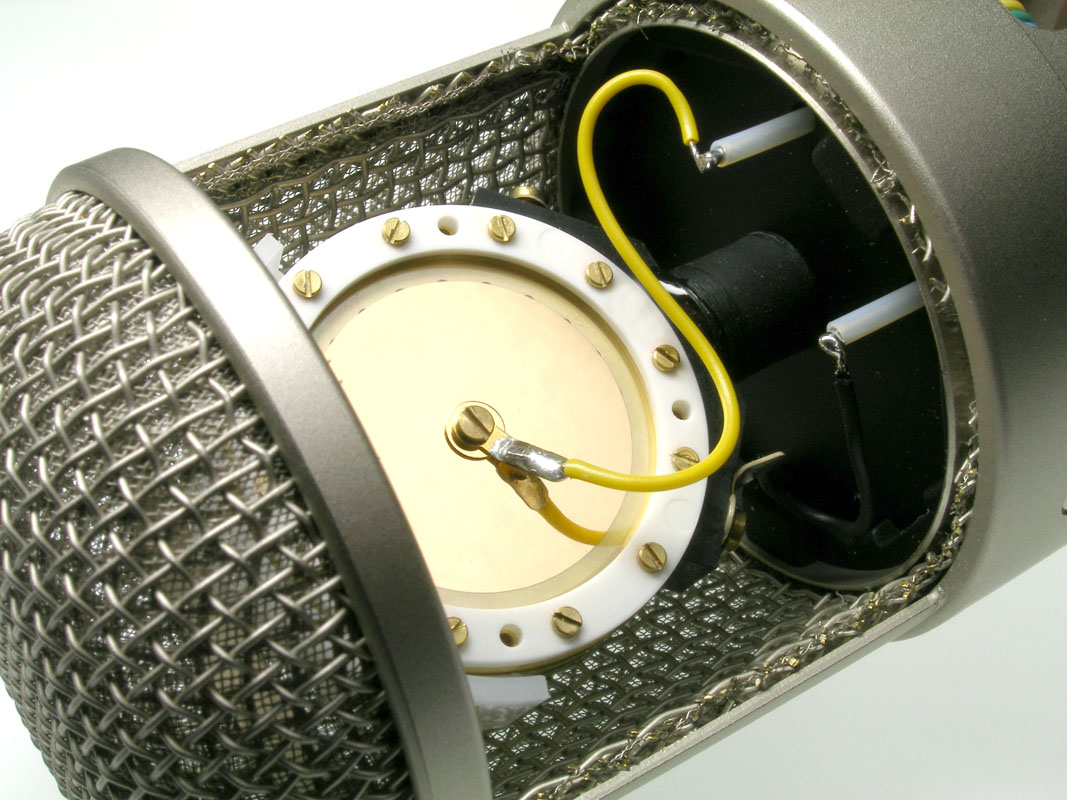

The headgrille of the M 147 is more than a visual statement: It is a slightly more compact version of the iconic U 47 capsule head, partly responsible for its legendary sound. Even more importantly, it shares the same sound transducer, the classic K 47 large diaphragm condenser capsule, known for its exceptional combination of warmth and presence. The capsule signal is amplified by a classic tube circuit using a specially selected subminiature triode. While vintage microphones relied on large and expensive audio transformers for the final impedance conversion, the M 147 uses a state-of-the-art transformerless solid state output stage, which allows for long cable runs up to 300 m without transmission losses and ensures a very direct sound with unrestricted bass response.
The M 147’s unique sound character with unsurpassed presence and a distinctive midrange focus is ideally suited for vocals, both male and female, as well as speech applications such as voice-over and film dubbing. The M 147 is also an excellent spot mic for any solo instruments. Unlike many other tube microphones, the M 147 can be used for quiet sources, due to its exceptionally low self-noise of only 12 dB-A. Although its max SPL figure of 114 dB appears low, the M 147 works well with louder sources, too, as distortion rises very slowly to 5% THD for 134 dB SPL. This behavior is intentional: The M 147 creates a sense of elevated loudness by means soft saturation – just like in the days of analog recording.
|Acoustical operating principle||Pressure gradient transducer|
|Frequency Range||20 Hz ... 20 kHz|
|Sensitivity at 1 kHz into 1 kohm||20 mV/Pa|
|Rated Impedance||50 ohms|
|Rated load impedance||1 kohms|
|Equivalent noise level, CCIR¹⁾||24 dB|
|Equivalent noise level, A-weighted¹⁾||12 dB-A|
|Typical SPL (tube characteristic) for K<0.5% 3²⁾||114 dB|
|Typical SPL (tube characteristic) for K<5% 4²⁾||134 dB|
|Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾||70 dB|
|Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾||82 dB|
|Maximum output voltage||8 dBu|
|Dynamic range of the amplifier, DIN/IEC 651, for THD < 0.5%²⁾||102 dB|
|Dynamic range of the amplifier, DIN/IEC 651, for THD < 5%²⁾||122 dB|
|Power supply||N 149 A|
|Matching connector||Microphone: DIN 8 F, Power Supply: XLR 3 F|
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
3) measured as equivalent el. input signal
CAT. NO. 008435
CAT. NO. 008434
"Reproduction of the nuances of the speaker´s voice and its smoky timbre is outstanding; very nice also the proximity effect even with nearly inaudible whispering." "The Neumann team has really done its homework. The M 147 puts an excellent tube mic into the hands of the recording community - at a price that is incredible for Neumann."
At Home At Circle Studios: Home recording with Neumann MicsDownload PDF
Quality at the Front EndDownload PDF
Desert Wind Records and the M 147 TubeDownload PDF
