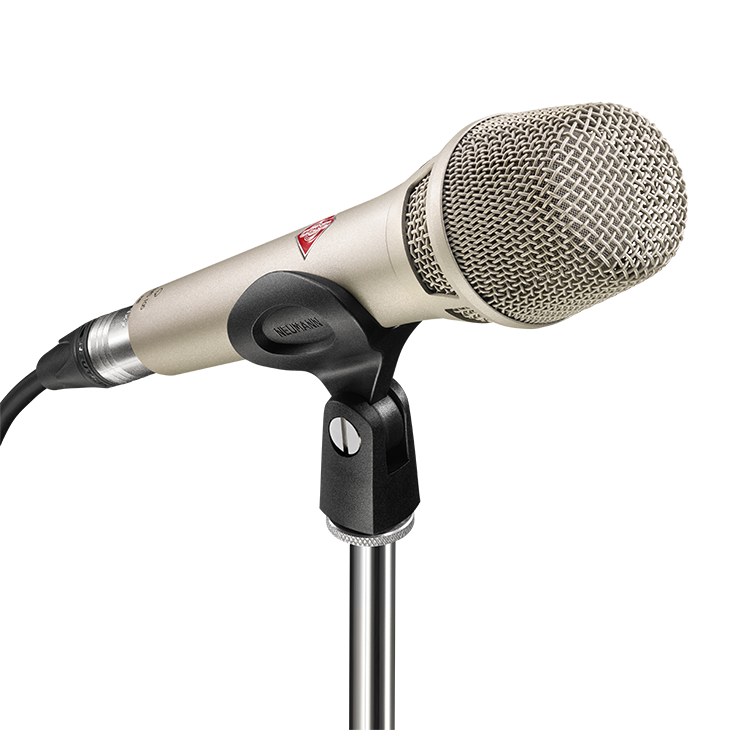

Stage Microphone

KMS 105

Studio grade stage microphone for vocalists. Supercardioid pickup pattern.

  • Supercardioid pattern with excellent feedback rejection
  • Studio quality condenser capsule
  • Transparent sound with a gentle treble lift
  • Highly effective, foam-free pop filter

COLORS AND VARIANTS

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

Suited for:

Max. SPL
150 dB
S/N Ratio
76 dB
Sensitivity
4.5 mV/Pa

Neumann Sound on Stage

The KMS 105 is a studio grade vocal microphone for stage use. Its precision manufactured condenser capsule offers true Neumann sound quality, combined with all the virtues of a rugged stage microphone: excellent pop protection, low handling noise, enormous SPL capability, and high feedback resistance, thanks to its tight supercardioid pattern.

Dealer Description

Studio Quality for Stage Vocals

The KMS 105 brings studio sound quality to the stage. Unlike usual stage microphones, which use dynamic capsules, the KMS 105 is equipped with a true condenser microphone capsule offering the superior clarity that made Neumann studio microphones famous all over the world. At the same time, the KMS 105 possesses the ruggedness required of a stage mic, thus refuting the myth that condenser microphones must be “fragile”. The KMS 105 can stand enormous sound pressure levels of up to 150 dB without clipping, and its tight, frequency-independent supercardioid pattern ensures high gain before feedback. The KMS 105 has a much smoother frequency response than dynamic microphones and an airy top-end. Compared to dynamic microphones, the Neumann KMS 105 has a vastly superior transient response resulting in a more immediate, more emotional vocal sound. In practical terms: effortless intelligibility, without the usual EQ boosts – which further improves feedback resistance.

As a stage microphone, the KMS 105 is optimized for close miking; a fixed low cut filter compensates for the proximity effect and ensures clear bass, even if the singer’s lips touch the microphone. The headgrille is made of hardened steel and features a carefully designed multi-level pop filter made of wire gauze. Despite its effectiveness, this acoustic filter does not cause any sibilance problems or compromise the capsule’s directivity. The head amplifier is protected by a thick-walled housing. Its transformerless output minimizes electromagnetic interference, such as hum. Because of its low output impedance of only 50 ohms, the KMS 105 can drive very long cable runs of up to 300 m (1000 ft) without transmission losses.

Applications

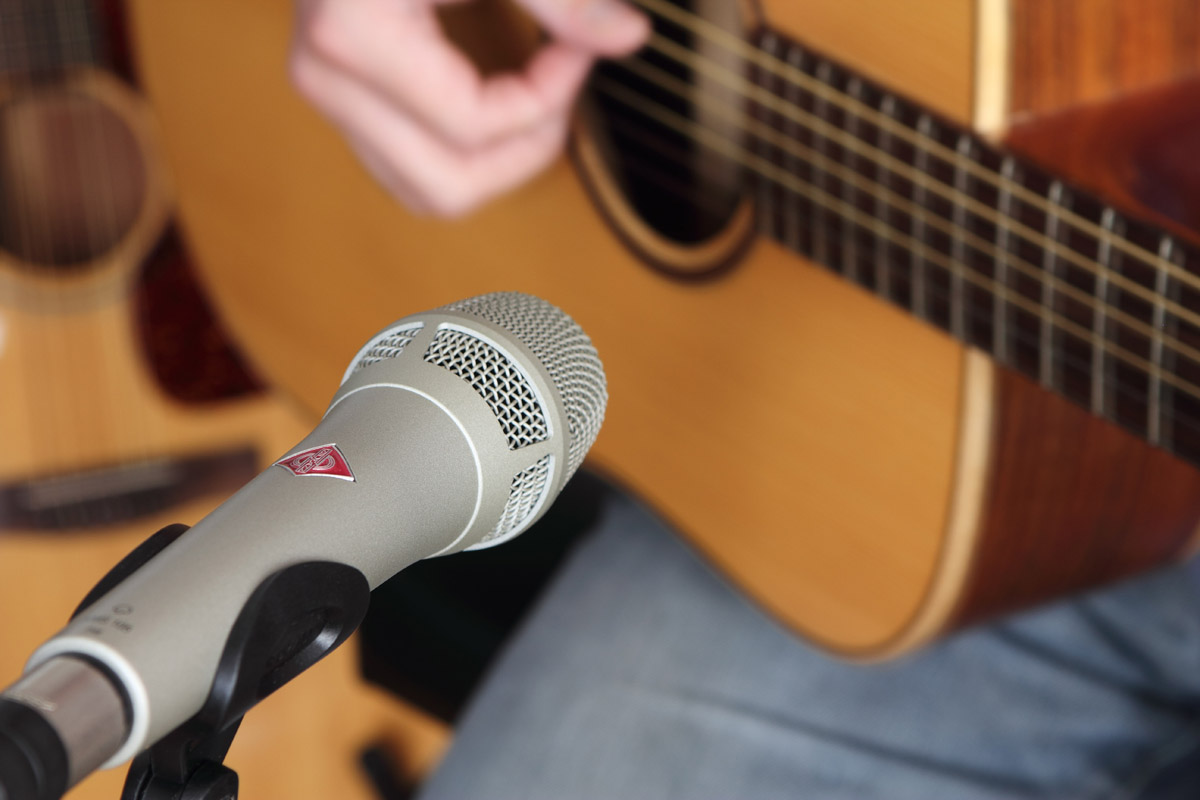

The KMS 105 is primarily designed as a handheld vocal microphone but can be used for other stage applications as well, due to its high SPL capability and wide dynamic range. Examples include percussion, saxophone, trumpet, trombone, harmonica, acoustic guitar, and guitar cabinets. Thanks to its superior sound quality, the KMS 105 is also an excellent microphone for home recording and broadcast applications. Because it is optimized for close mic placement, the KMS 105 will pick up a dry sound with very little ambience, which is a big advantage in untreated rooms.

  • Tight supercardioid pattern without off-axis coloration
  • Unaffected by extreme sound pressure levels
  • Rugged construction
  • Feedback resistant
  • Built-in pop screen
  • Very low handling noise
Acoustical operating principle Pressure gradient transducer
Directional Pattern Supercardioid
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm 4.5 mV/Pa ± 1 dB equ. -47 dBV
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR¹⁾ 28 dB
Equivalent noise level, A-weighted¹⁾ 18 dB-A
Maximum SPL for THD 0.5%²⁾ 150 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 66 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 76 dB
Maximum output voltage 12 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3.5 mA
Matching connector XLR 3 F
Weight approx. 300 g
Diameter 48 mm
Length 180 mm

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Hypercardioid KMS 105

Hypercardioid KMS 105 Hypercardioid KMS 105
TLM 49 Set

WSS 100

Windscreen

WSS 100
TLM 49 Set

N 248

Power Supply

N 248
TLM 49 Set

MF 3

Table Stand

MF 3
TLM 49 Set

MF 4

Floor Stand

MF 4
TLM 49 Set

MF 5

Floor Stand

MF 5
TLM 49 Set

STV 4

Stand Extension

STV 4
TLM 49 Set

STV 20

Stand Extension

STV 20
TLM 49 Set

STV 40

Stand Extension

STV 40
TLM 49 Set

STV 60

Stand Extension

STV 60
TLM 49 Set

Z 26 mt

Shock mount

Z 26 mt
TLM 49 Set

SG 105

Stand Mount

SG 105
TLM 49 Set

IC 3 mt

Microphone Cable

IC 3 mt

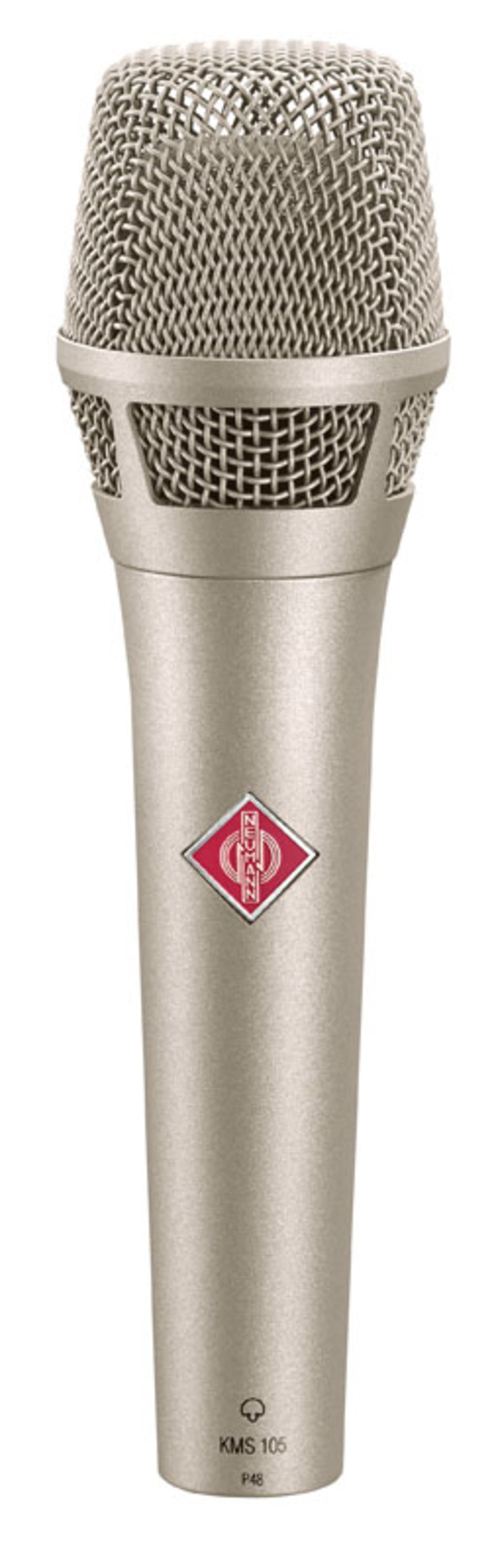

KMS 105

Color nickel

CAT. NO. 008454

KMS 105
  • KMS 105 Microphone
  • SG 105 Stand clamp
  • Padded nylon bag

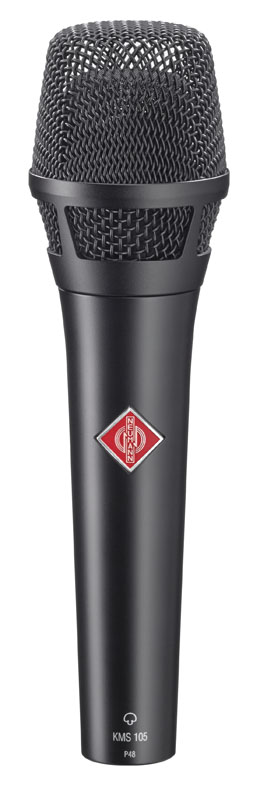

KMS 105 bk

Color black

CAT. NO. 008455

KMS 105 bk
  • KMS 105 bk Microphone
  • SG 105 Stand clamp
  • Padded nylon bag
