Ovation 11: Trigger the Moment, Control the Show
Ovation is Merging Technologies audio playout system and show controller.
Ideal for theme parks, broadcast, live events and museums, it offers powerful cue management and interaction, precise show control through industry-standard protocols, and advanced audio mixing and routing for even the most complex immersive setups.
Ovation is available in three versions to suit different needs and budgets (ELEMENTS, PRO and PREMIUM).
Running on Windows 10/11, Ovation manages up to 128 I/O (PREMIUM) with an ASIO sound card, or uses the low-latency MASSCORE audio engine (available as an additional product) for up to 384 I/O.

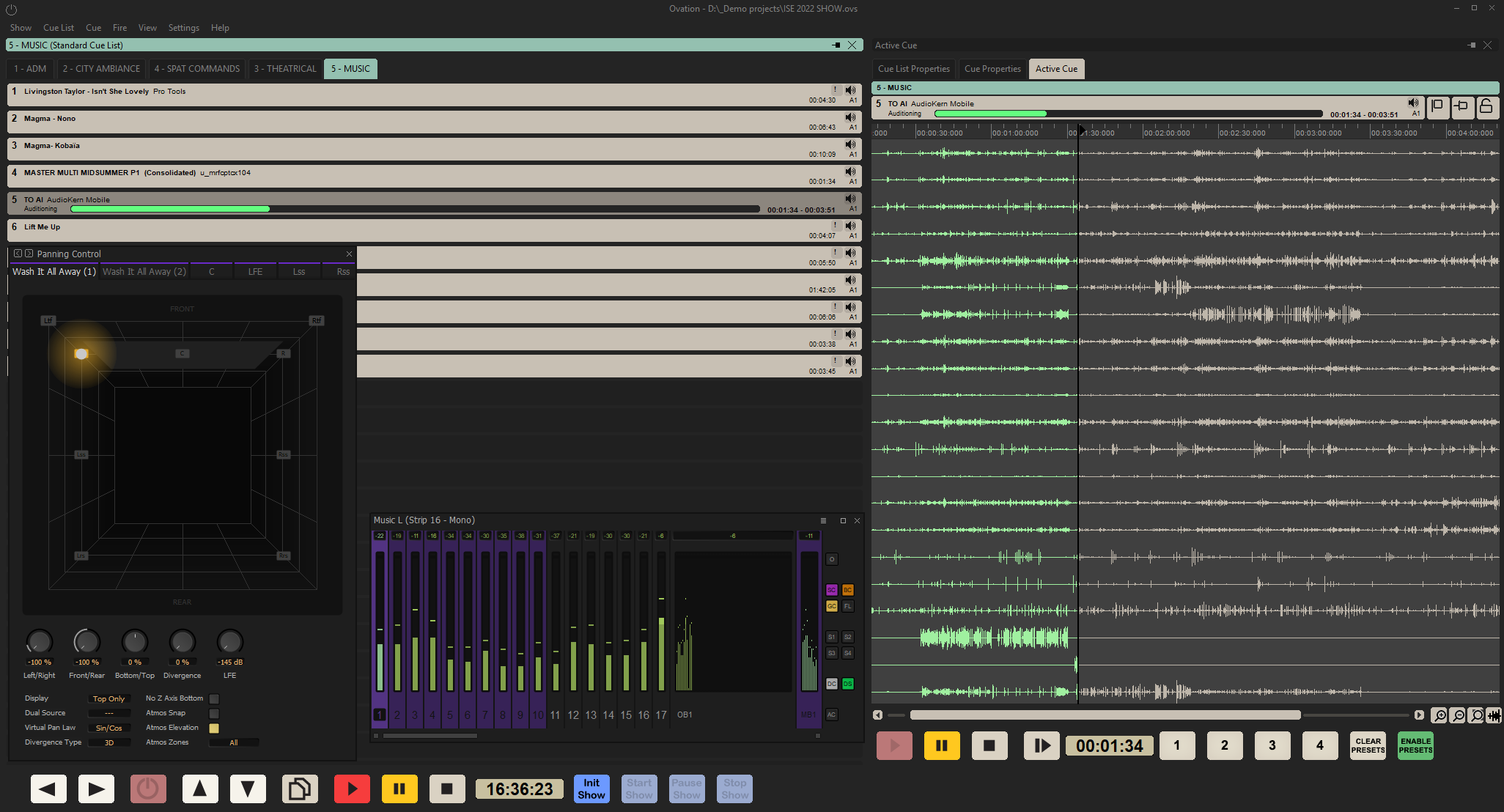

Advanced Cues Management
Ovation cues can be triggered by almost anything — a button press on its customizable user interface, another internal cue, a command from a third-party system, or even from another Ovation system (PREMIUM pack only).
Cues can do just about anything: play any type of audio direct from Ovation, open a live microphone via the internal mixer, recall mixer presets or automation (PRO and PREMIUM packs only), trigger video playback from a Dataton server (PREMIUM pack only), launch fireworks — the possibilities are endless.
Adjusting a show is easy!
During show rehearsals, last-minute adjustments are inevitable. The creative glue is still setting, and the magic is still forming — changes need to happen fast. There's no time to re-export and re-import between applications.

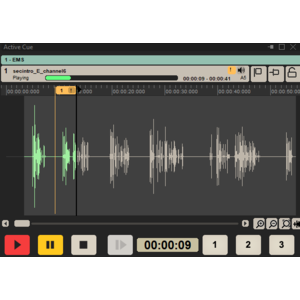

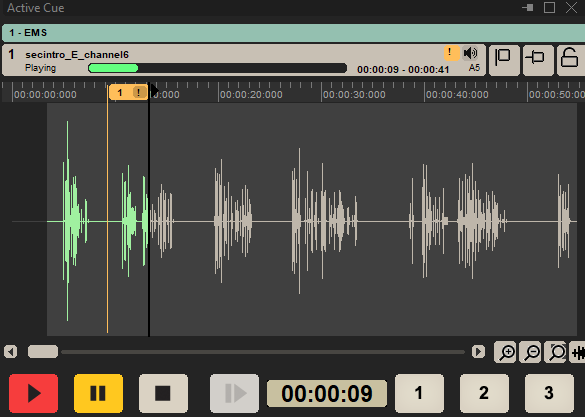

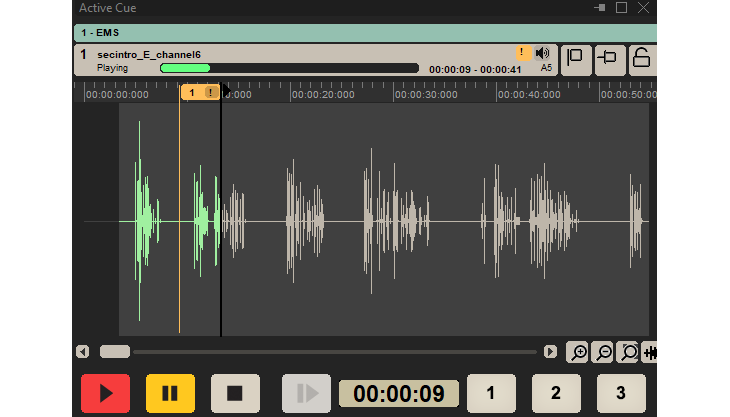

With Ovation, recording audio directly into a cue is simple, no matter the format. Editing is just as smooth, thanks to a tight integration with Merging Technologies’ Pyramix DAW. With the push of a button, a cue can be opened in Pyramix, edited in detail, and sent straight back to Ovation — instantly.
No need to fear changes — embrace them. The show can be fine-tuned down to the last detail, effortlessly.
This flexibility also applies to automation (PRO and PREMIUM only). For example, accurately writing pan automation is often only possible once you're in the venue.
Recording new automation into a cue is just as straightforward (PRO and PREMIUM packs only).

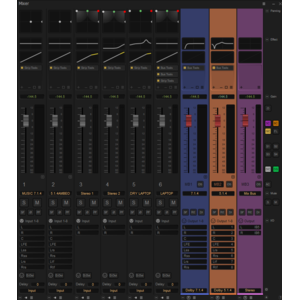

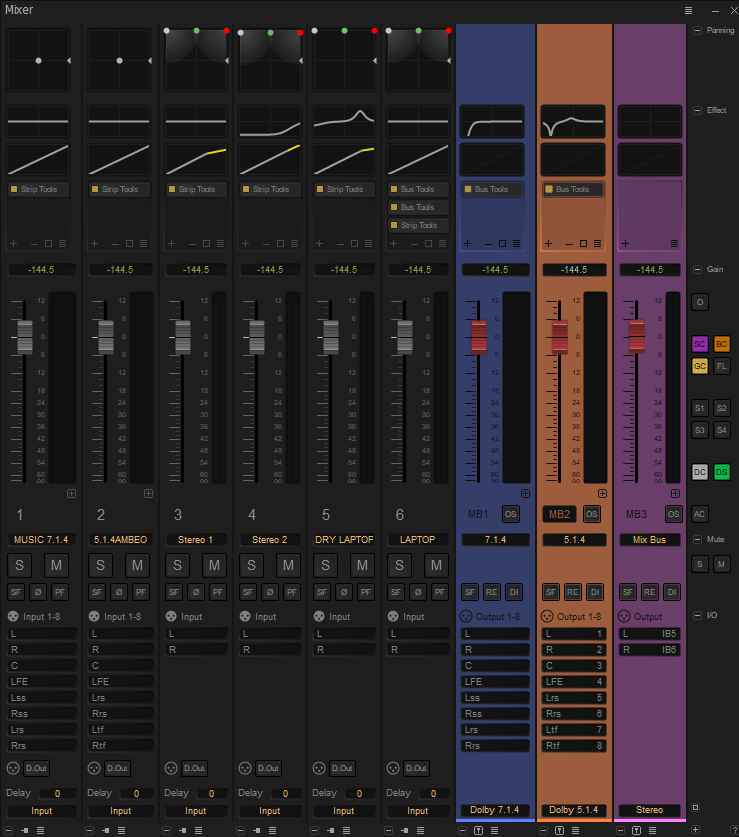

Built-in Mixer
Ovation features a powerful integrated audio mixer, supporting up to 48 I/O in Native mode (128 I/O with the PREMIUM pack). When powered by the MASSCORE engine, this expands to an impressive 384 I/O, with ultra-low latency that enables real-time mixing of live inputs — just like a digital console or dedicated DSP.

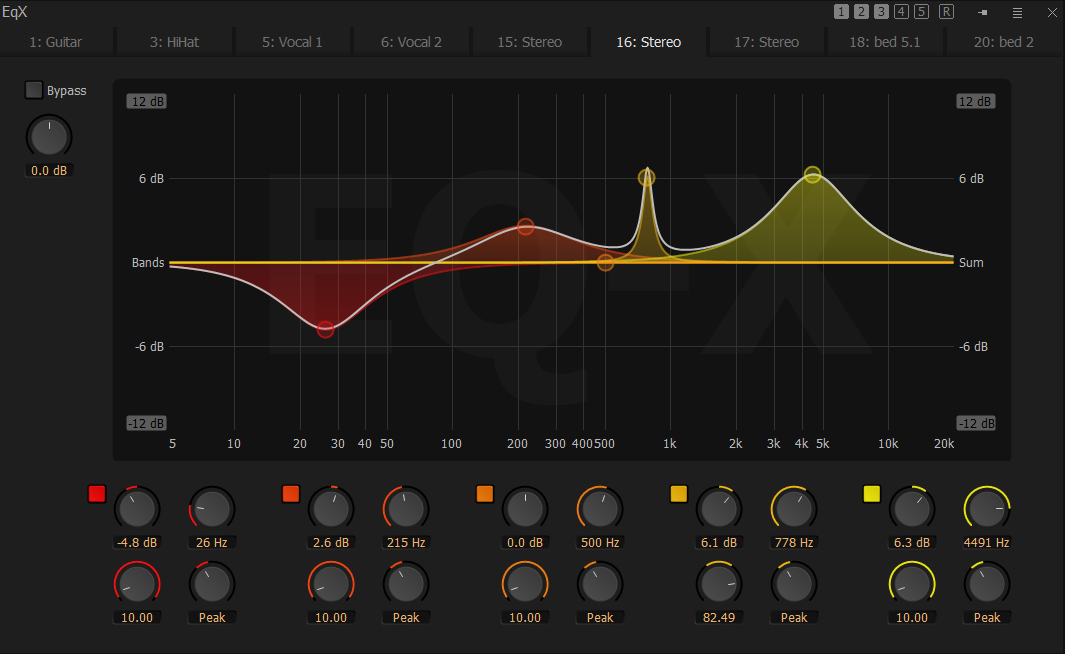

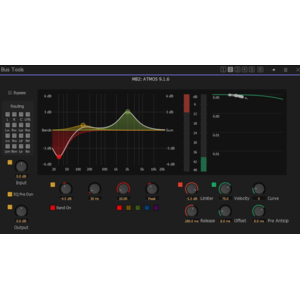

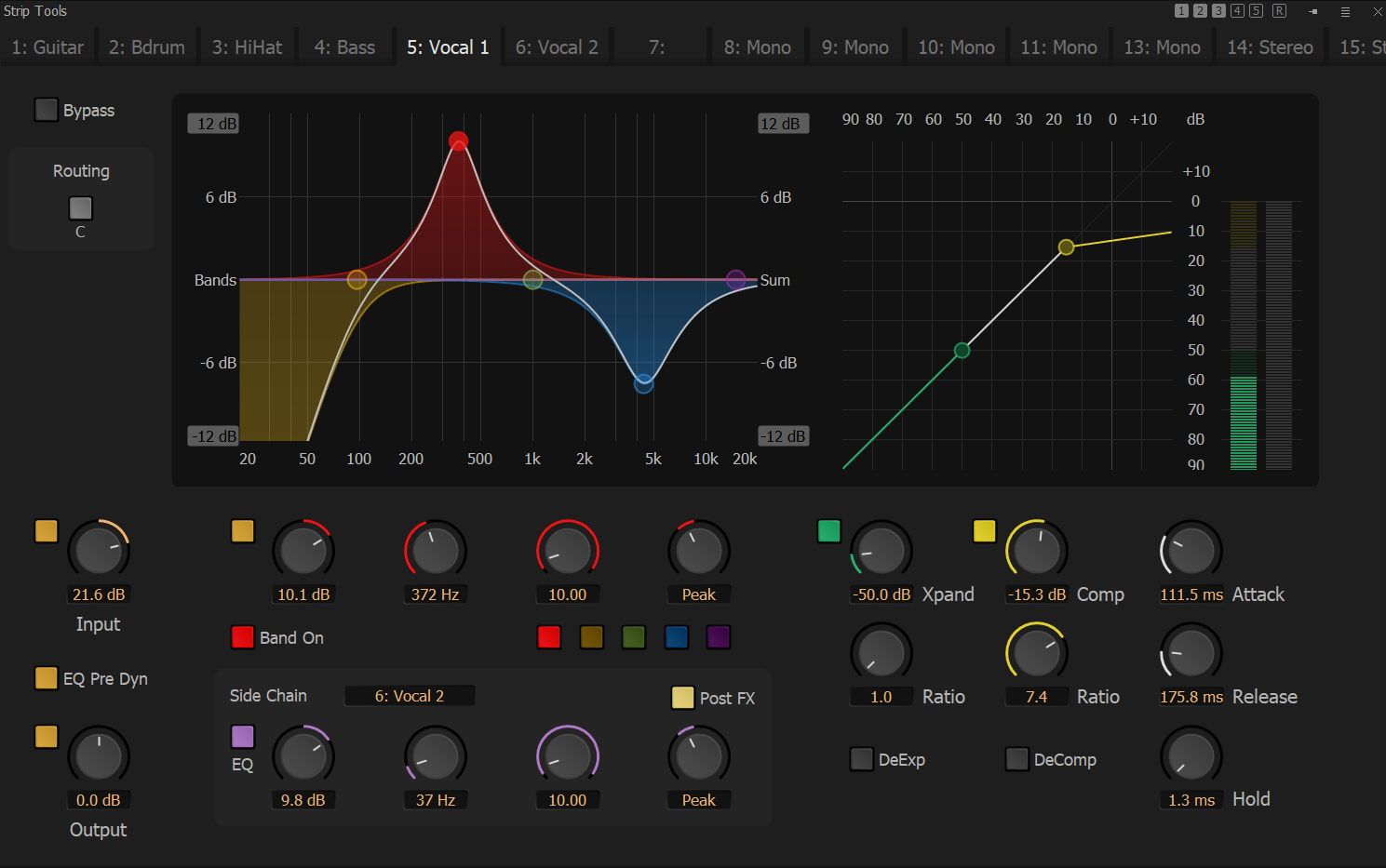

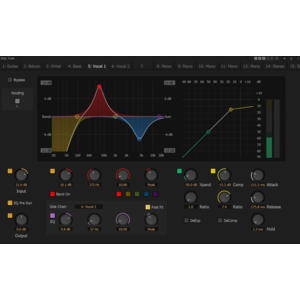

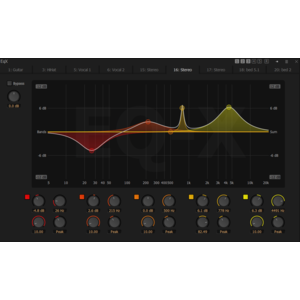

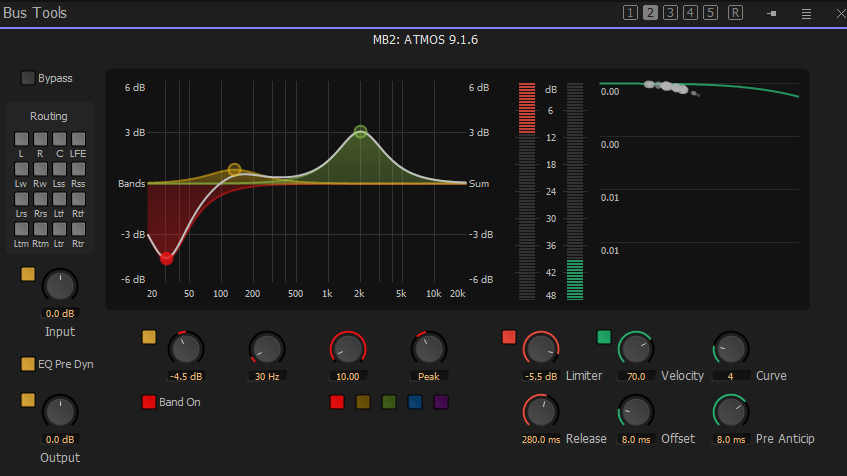

Out of the box, Ovation provides “Strip Tools” — a high-quality EQ and dynamics section. The mixer also supports VST and VS3 plugins, offering a wide array of audio processing and effects options.
Next Gen Immersive Audio

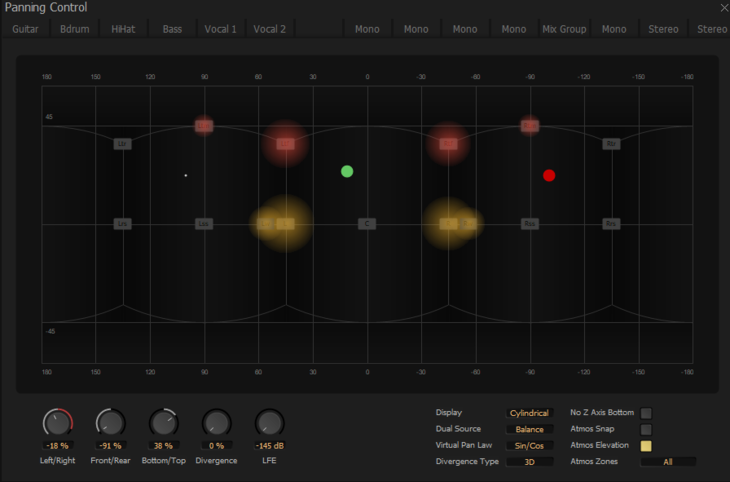

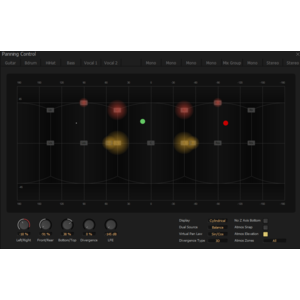

Ovation supports all forms of next-generation audio: bus-based, scene-based, and object-based.
Traditional bus formats are fully supported — from mono and stereo to 7.1 (22.2 with PRO pack, 30.2 with the PREMIUM pack).
Ambisonics is supported up to 7th order, offering full flexibility for immersive workflows.
To make it easy to import object based cues carefully crafted by creatives, Ovation supports the ADM-OSC format (PREMIUM pack only).

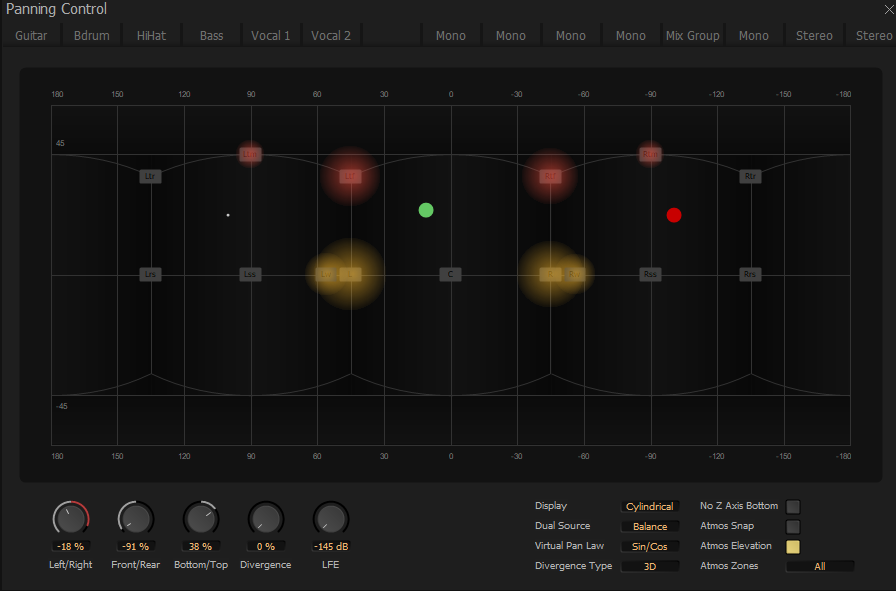

Objects can be rendered either using 3rd party renderers such as Flux Spat (PREMIUM pack only – Spat license not included) or Merging Technologies’ built-in renderer (all packs).

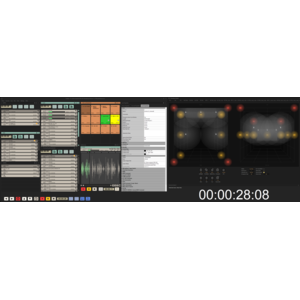

This internal engine allows users to define custom speaker layouts — supporting up to 384 discrete speaker outputs with MASSCORE.
Ovation can downmix any format to any other, making it easy to play a mix of cues in different formats (e.g., ambisonic, object-based) into a common output such as a 5.1 system.
Show Controls the way you need it and where you need it

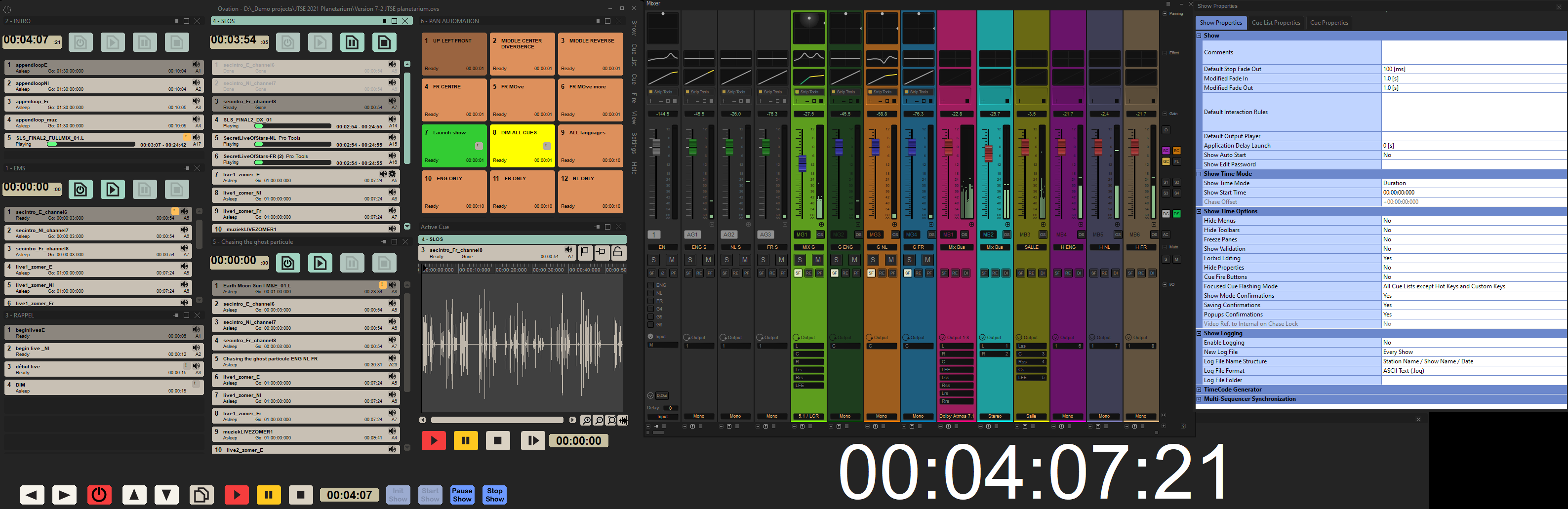

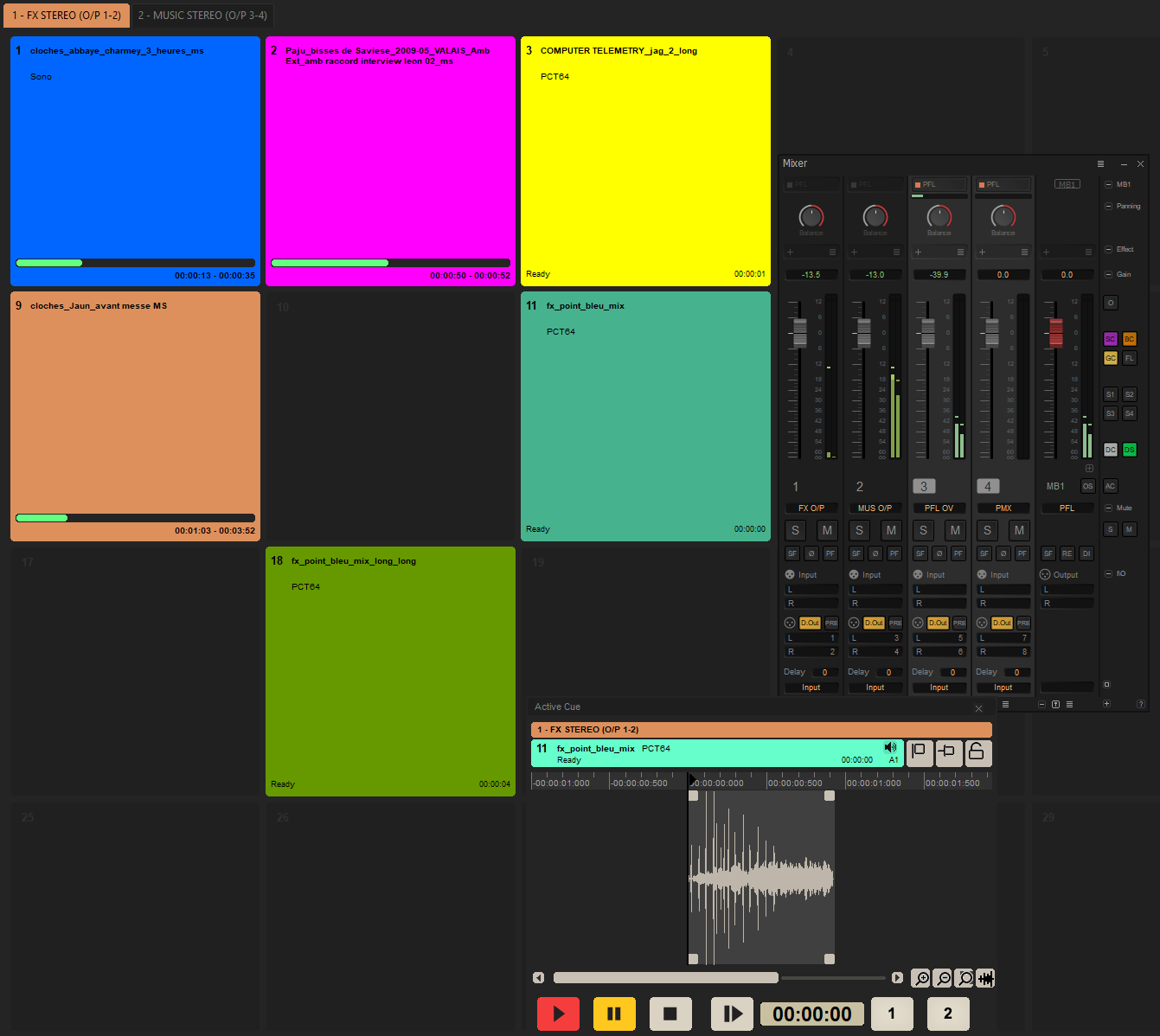

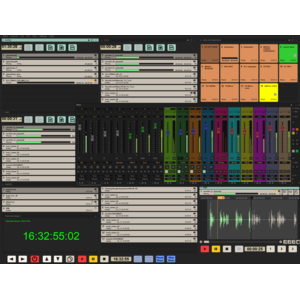

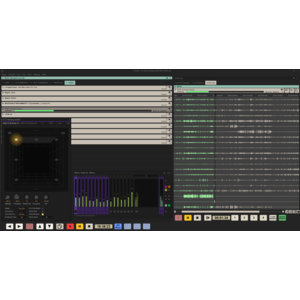

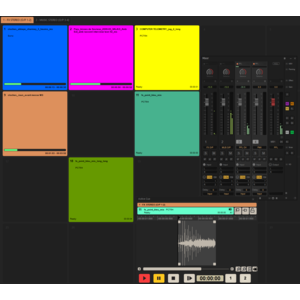

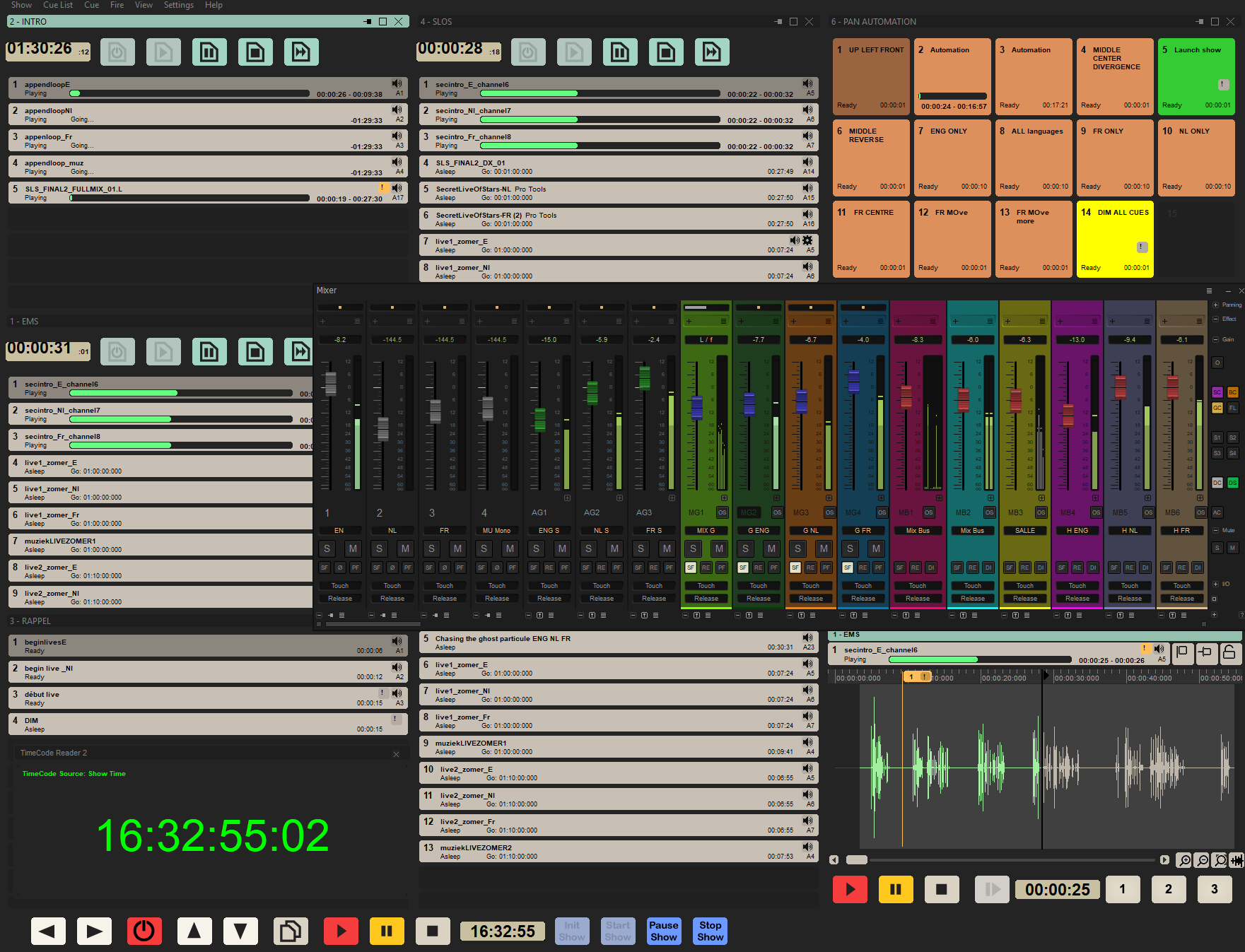

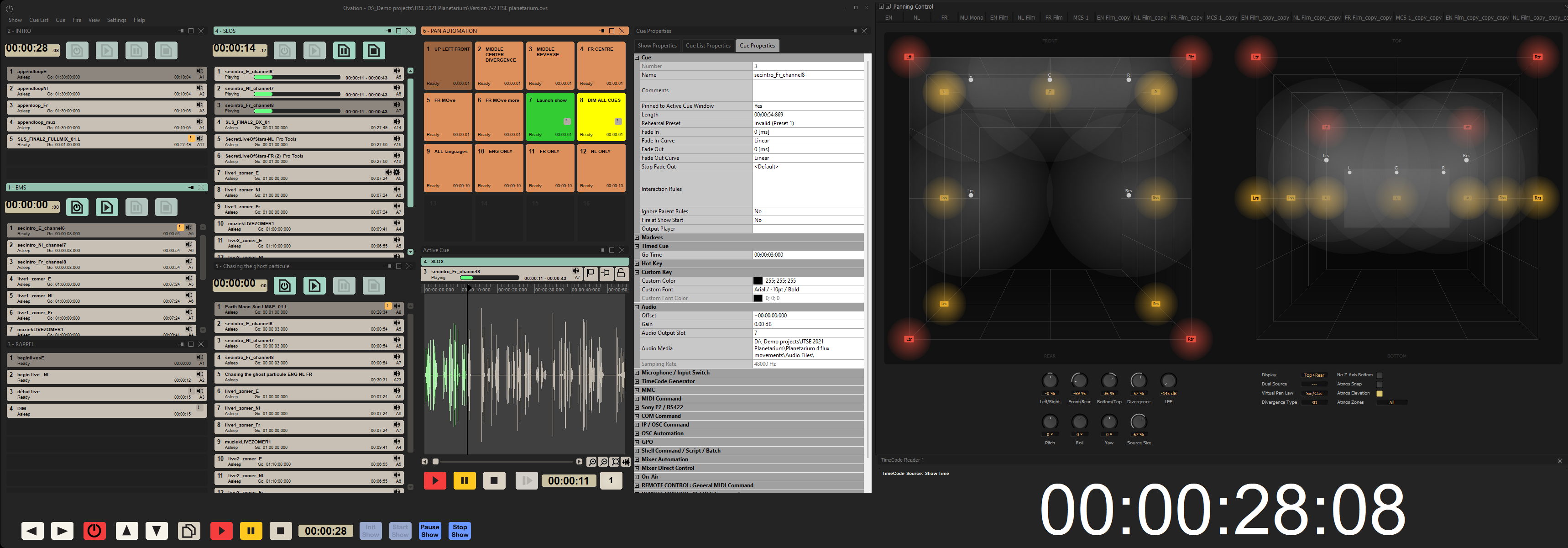

Ovation not only lets you build highly complex shows — it also helps you keep everything under control with a stress-free, graphical interface that displays only what you need, exactly where you need it.
The control interface is fully customizable, so you can focus only on the cues relevant to you. (PRO or PREMIUM packs only)
Ovation also runs a webserver which means that the custom user interface can be made available to a tablet or smartphone on the network. (PRO or PREMIUM packs only)
Redundancy for utmost reliability
Ovation is often the heart of a production — and as such, it's mission-critical.
To ensure continuity in case of a power loss or unexpected issue on the primary system, a secondary Ovation system can be configured to follow the main one as a failsafe.
Integration
Ovation supports HUI, Avid EUCON, Lawo and Stagetec consoles (PRO or PREMIUM packs only).
Industry standard protocols
With support for a wide range of control protocols such as MIDI, OSC, LTC/MTC, RS-422, and TCP/IP, Ovation can communicate seamlessly with all devices running the show. (ELEMENTS pack supports only MIDI send/receive)
Ultra-high Resolution
Staying true to Merging Technologies’ design philosophy, Ovation supports ultra-high-resolution audio formats such as DSD256, DXD, and 384 kHz.
When paired with Merging Technologies interfaces and the MASSCORE engine, Ovation provides the perfect signal chain with ultra-low latency and no compromise on audio quality.
