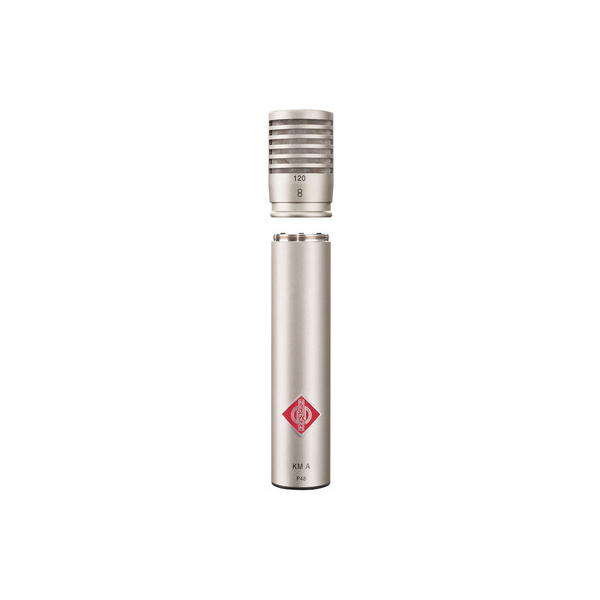

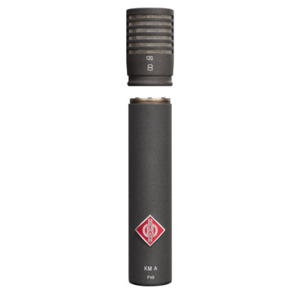

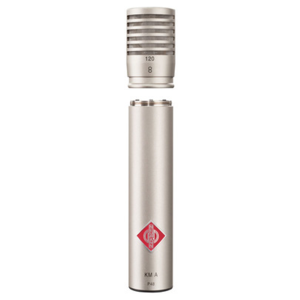

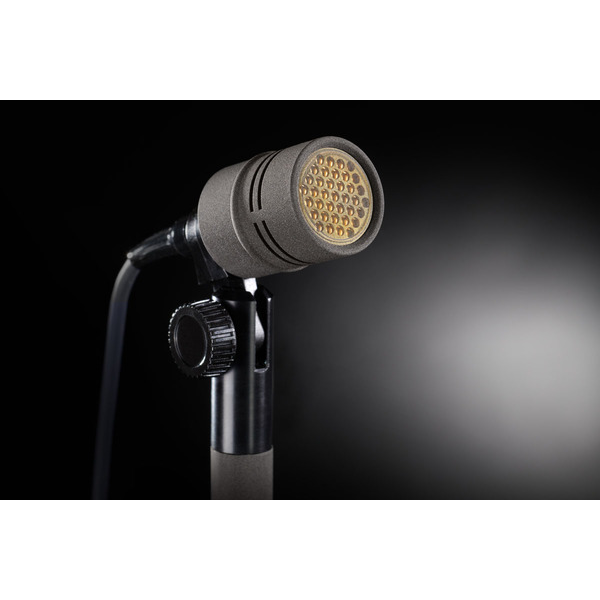

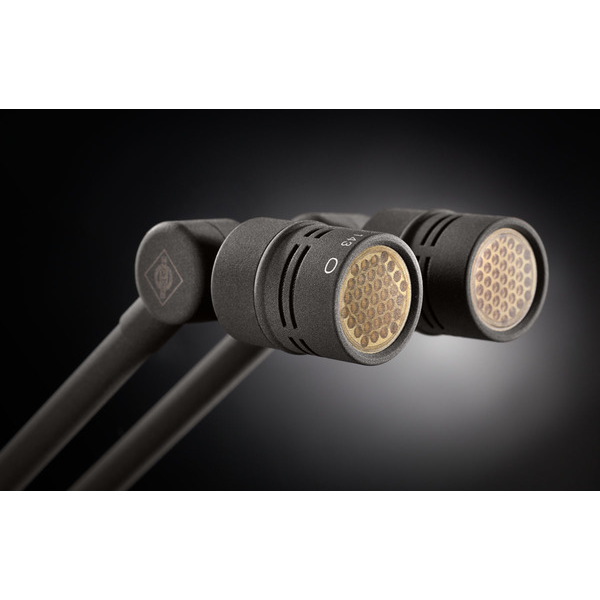

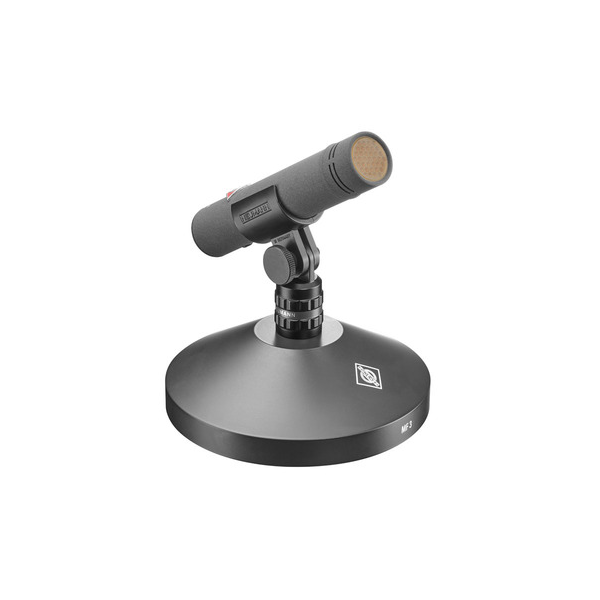

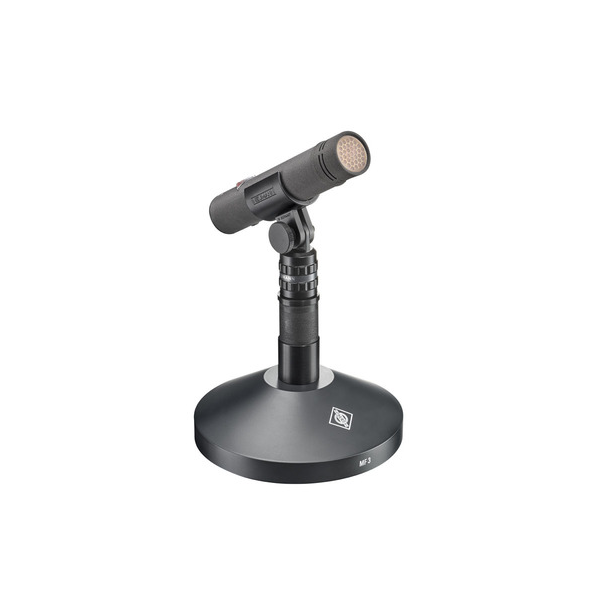

The combination of the capsule KK 120 with the output stage KM A is only one of the numerous options within the Neumann KM A/D small diaphragm microphone system.

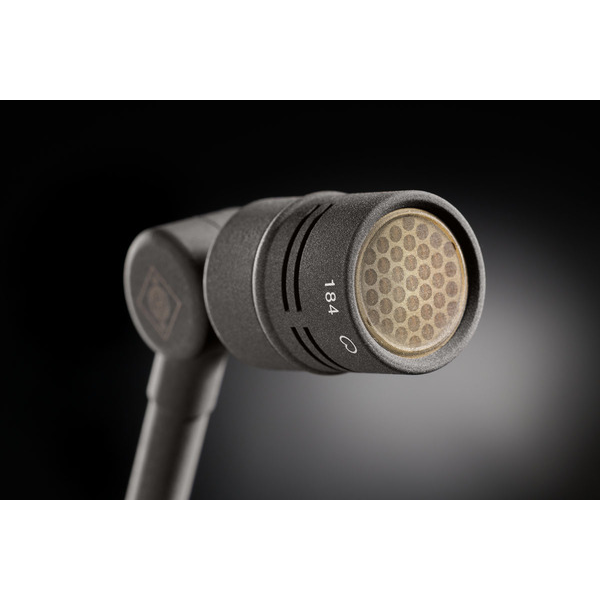

The Neumann system KM A/D is a modular microphone system for even the most demanding applications. Eight different small diaphragm capsules (KK 120 … KK 185) may be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). All components are available in nickel or Nextel black (nx). A comprehensive range of accessories ensures adaptability to the most diverse fields of application.
Compared to its predecessor, the Series KM 100, the new system KM A/D works with passive capsules, which are considerably smaller while retaining the proven acoustic design. New and advanced electronic components allow for many electroacoustic and operational advantages, such as reduced self-noise, an extended dynamic range, and very high electromagnetic immunity.

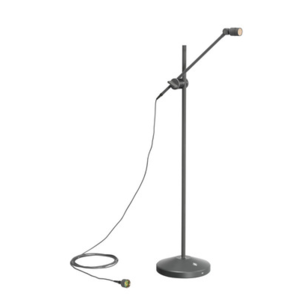

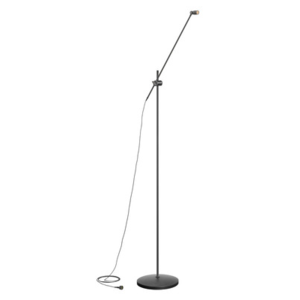

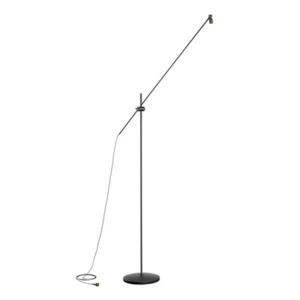

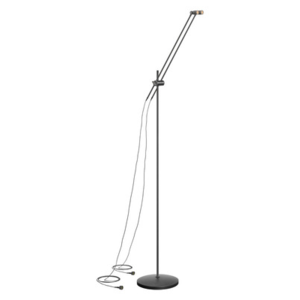

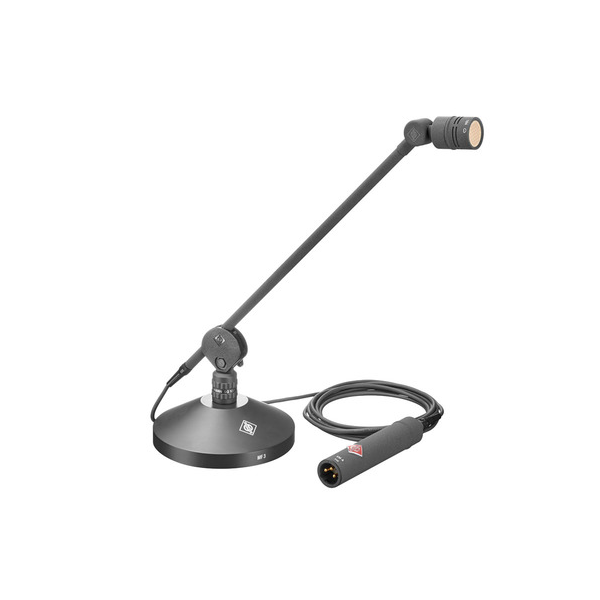

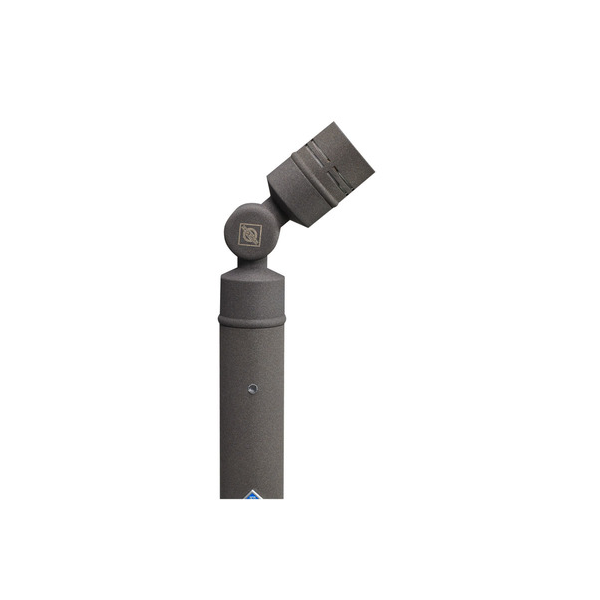

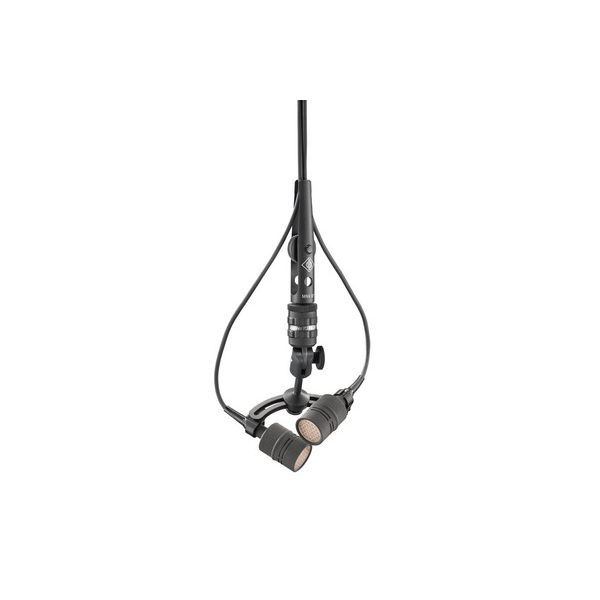

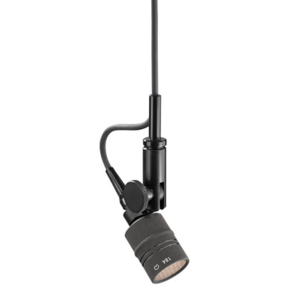

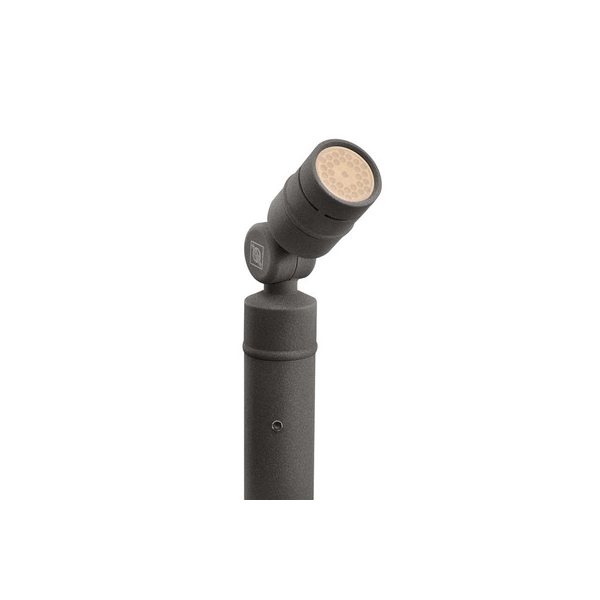

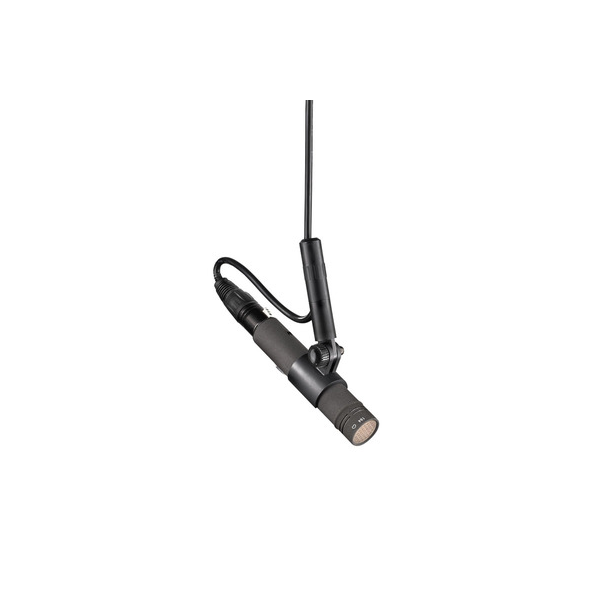

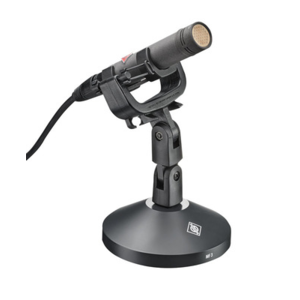

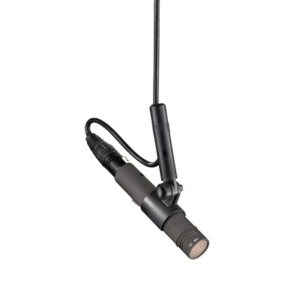

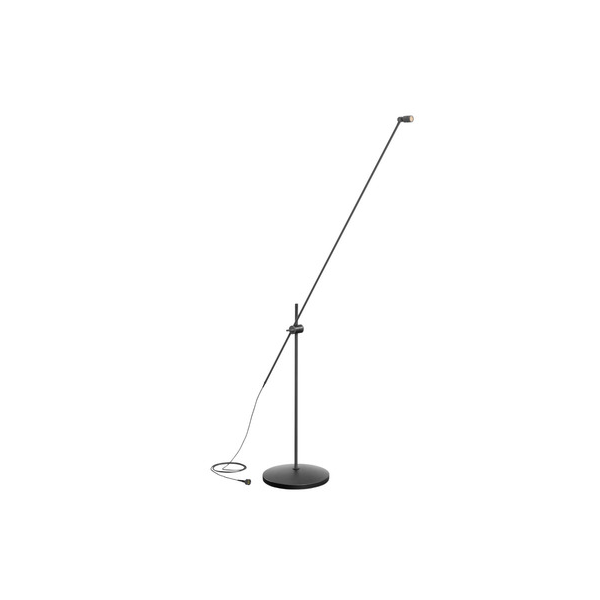

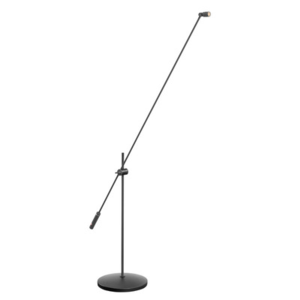

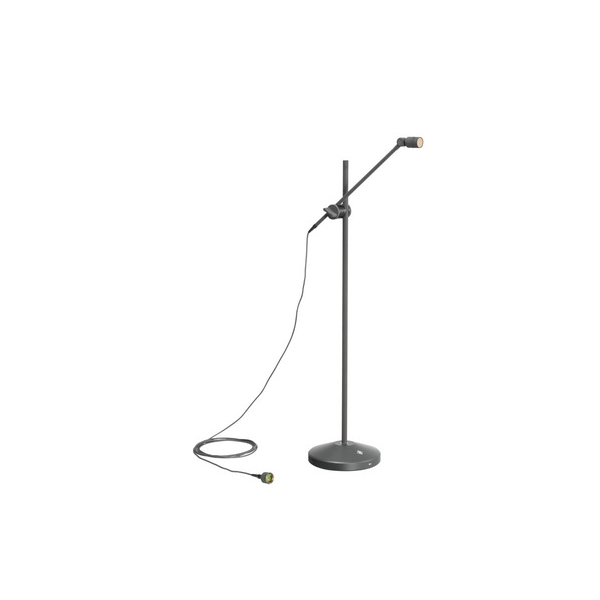

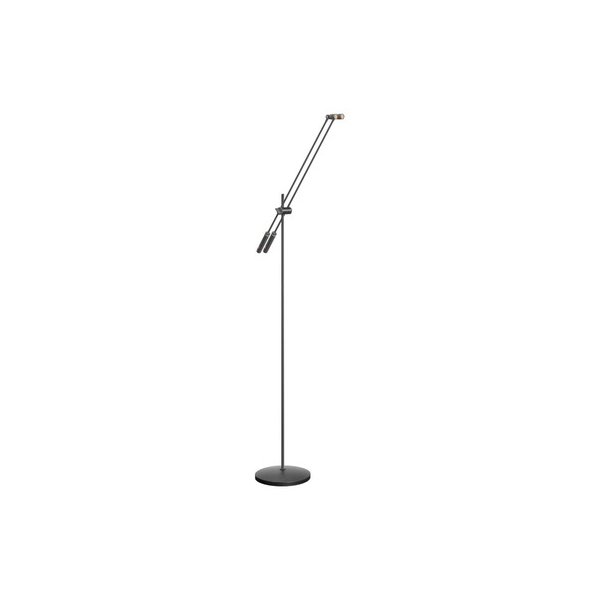

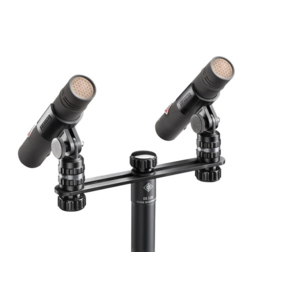

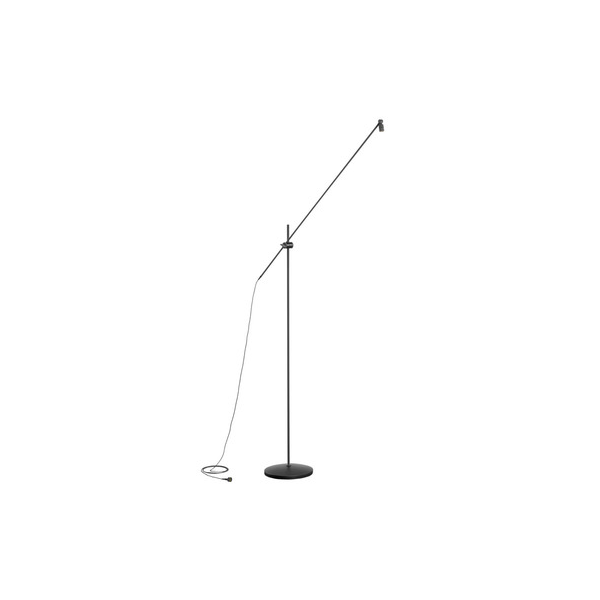

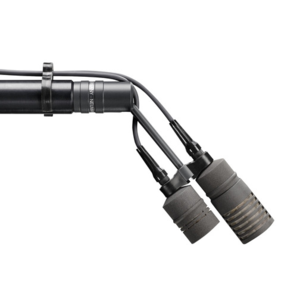

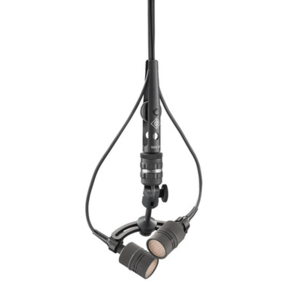

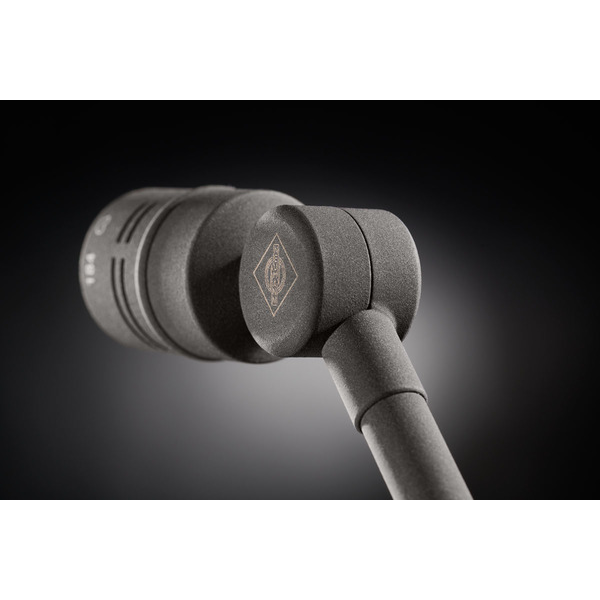

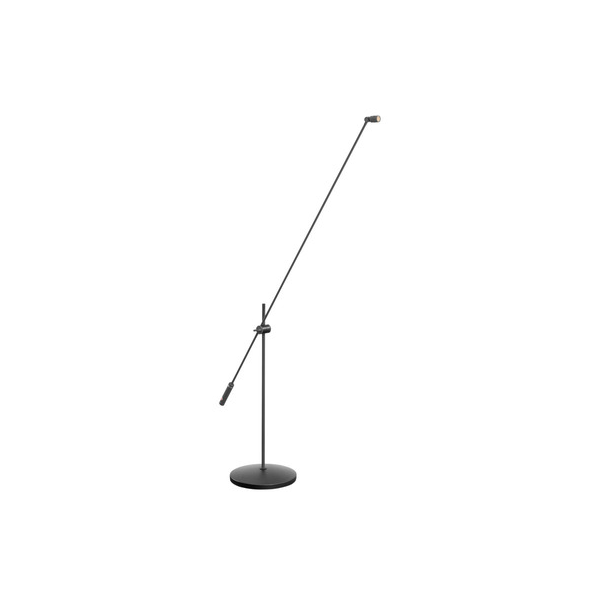

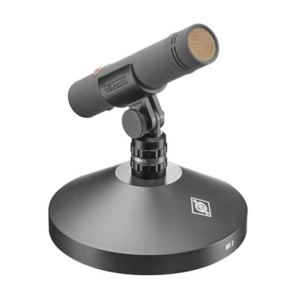

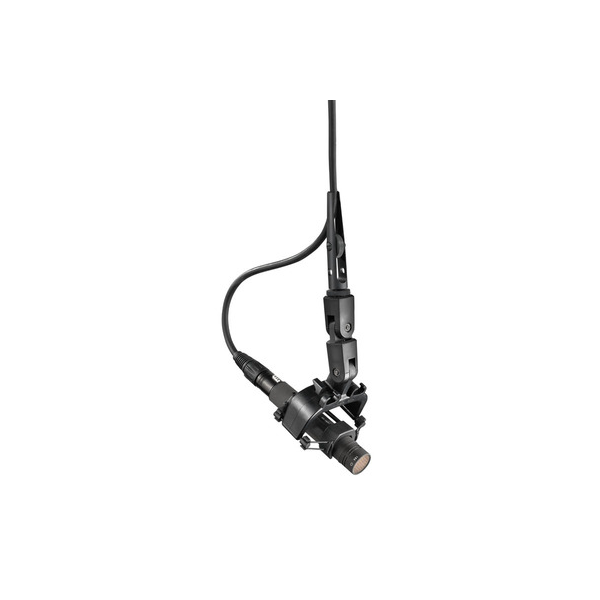

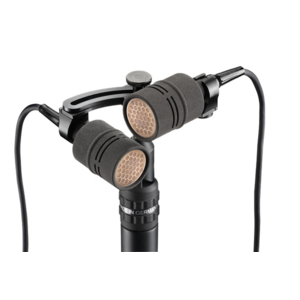

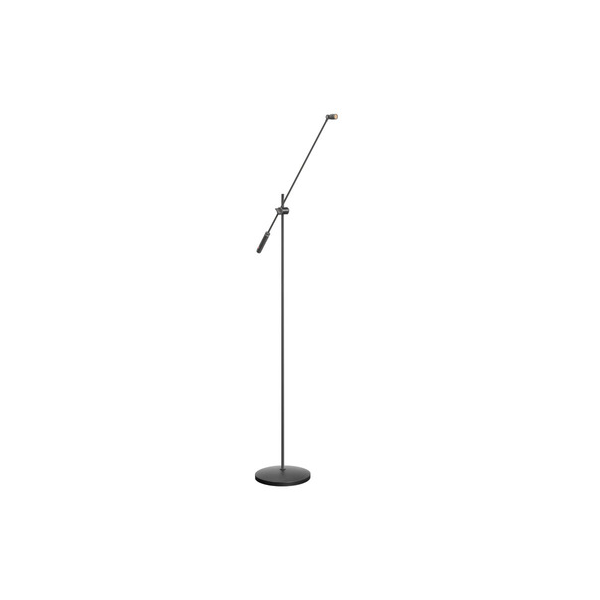

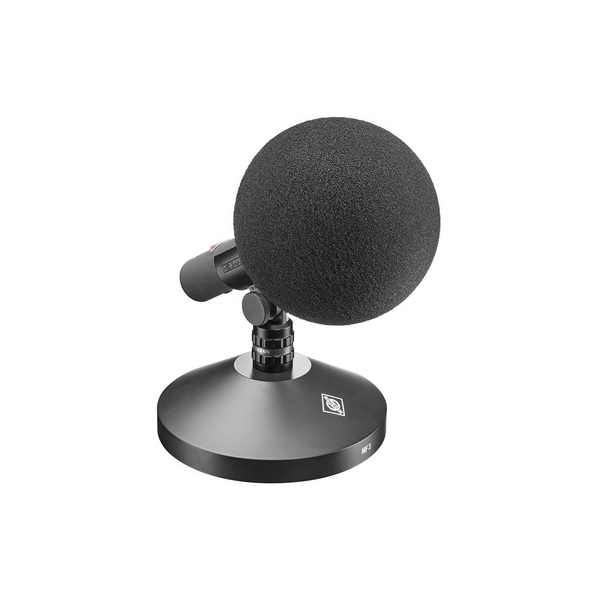

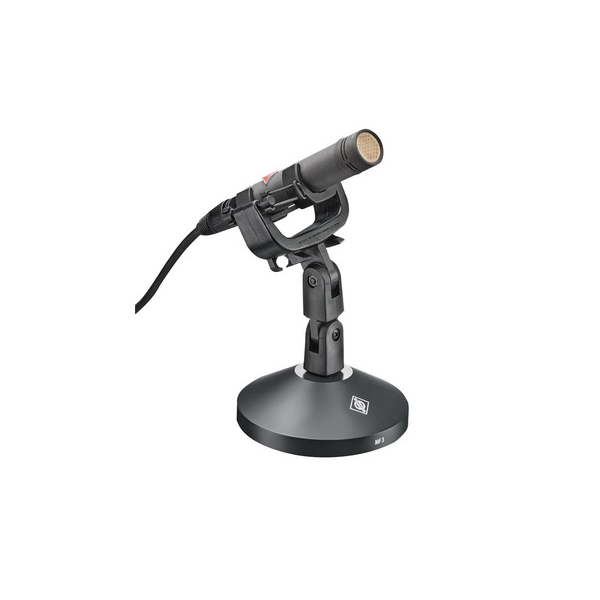

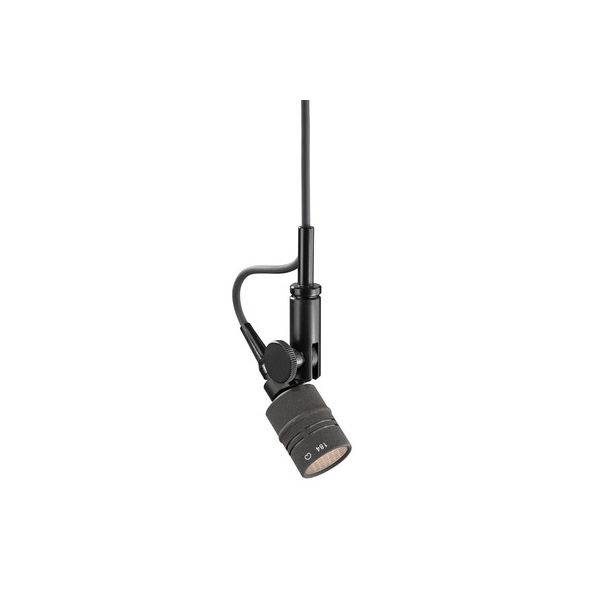

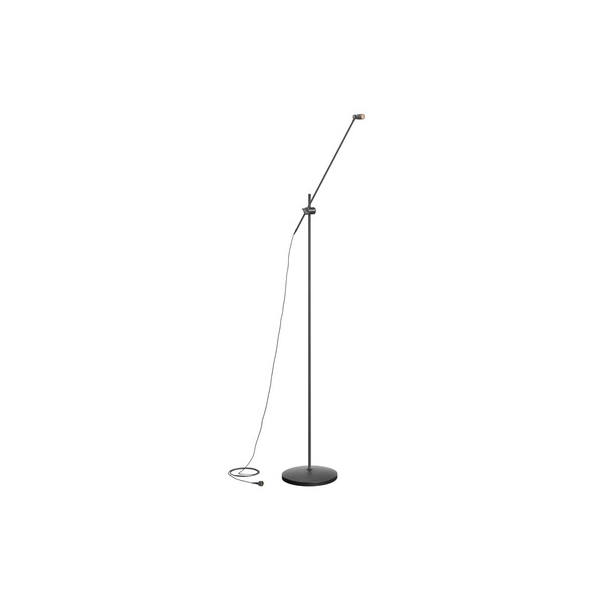

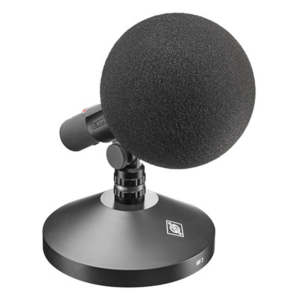

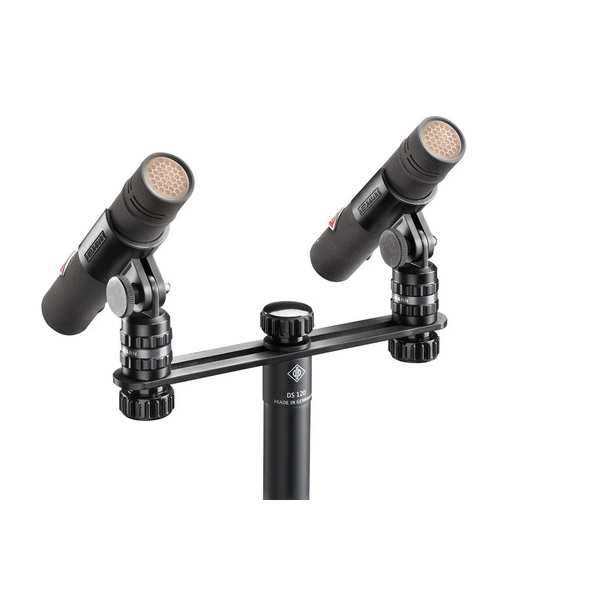

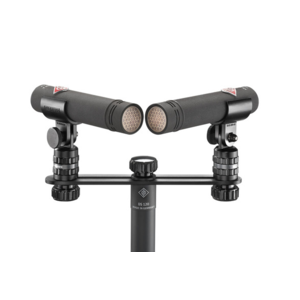

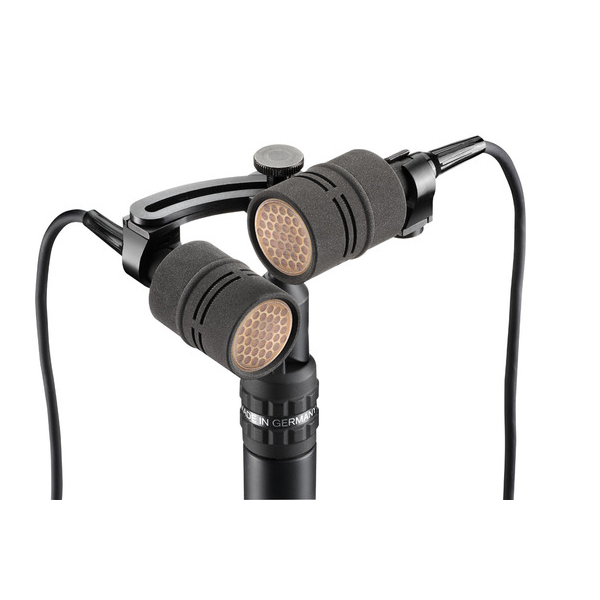

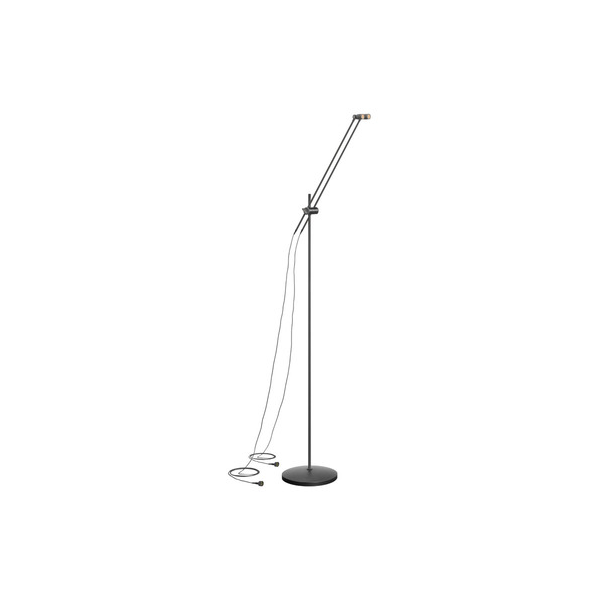

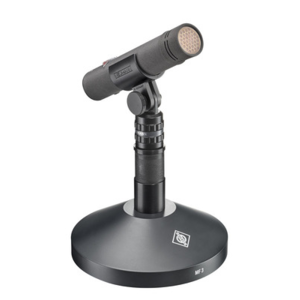

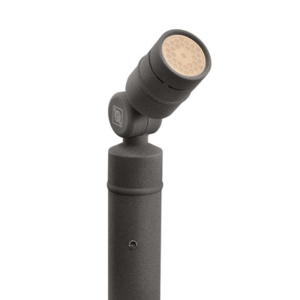

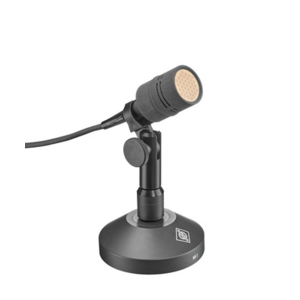

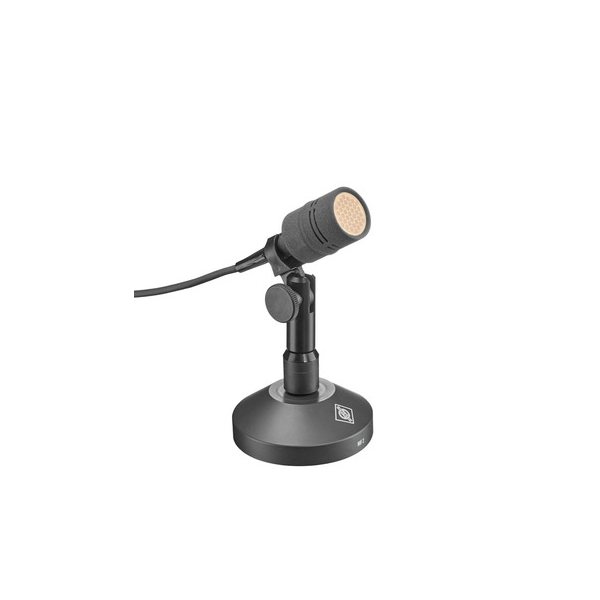

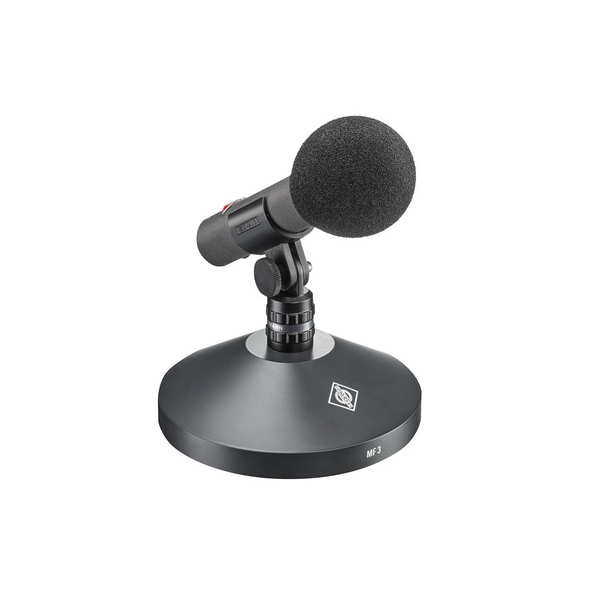

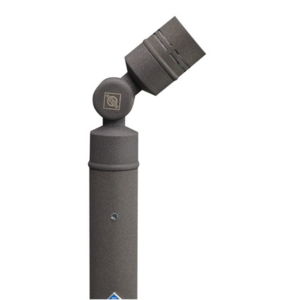

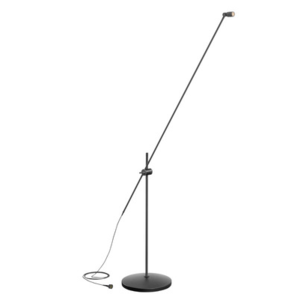

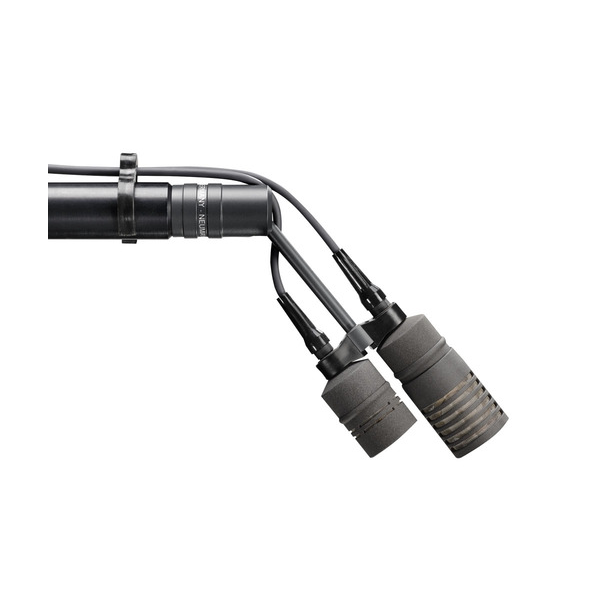

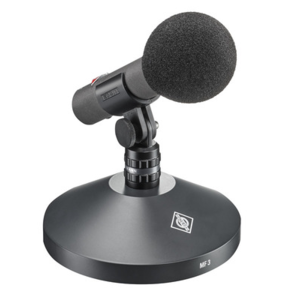

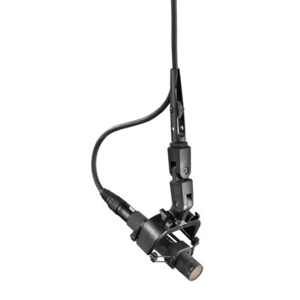

The modular concept permits the capsule to be detached and used at a distance from the output stage of up to 100 m (330 ft), connected via a special cable. For usual applications, the LC 4 cable is available with a length of 5 or 10 meters (ca. 16½ or 33 ft.). Alternatively, capsule extensions of various lengths, swivel capsule joints, and swivel stand mounts, etc. may be used for a flexible microphone setup. The analog and digital output stages have identical dimensions (diameter: 22 mm, length: 93 mm). All accessory parts may thus be combined with both output stages.
A lot of examples for using the accessory portfolio can be found here.
The analog, transformerless output stage KM A operates with P48 phantom power. A switchable -10 dB preattenuation allows for sound pressure levels of up to 152 dB (depending on capsule type) without distortion artifacts.
The digital output stage KM D is compliant to the AES 42 standard and opens entirely new possibilities, unattainable in the analog domain. The integrated DSP permits remote control of microphone parameters, such as digital gain, preattenuation (6, 12, 18 dB) and low cut (0, 40, 80, 160). An integrated peak limiter and a compressor/limiter with an additional de-esser function protect the audio signal from overload. Neumann’s patented A/D-converter technology ensures a very high dynamic range of up to 122 dB-A across the entire digital production chain.
At any time the user may opt to work in the analog or digital domain, without the expense of a complete system change, simply by using the KM A or KM D output stage. More information on Neumann’s digital microphone technology is available here.
Two popular combinations are available as complete sets with capsule, output stage and swivel mount: KM 183 A nx and KM 184 A nx. Any other components are offered separately.
On special request, a mechanical adapter (AR 100 KA) can be supplied for use of older KM 100 capsules (AK series) with the KM A and KM D output stages.

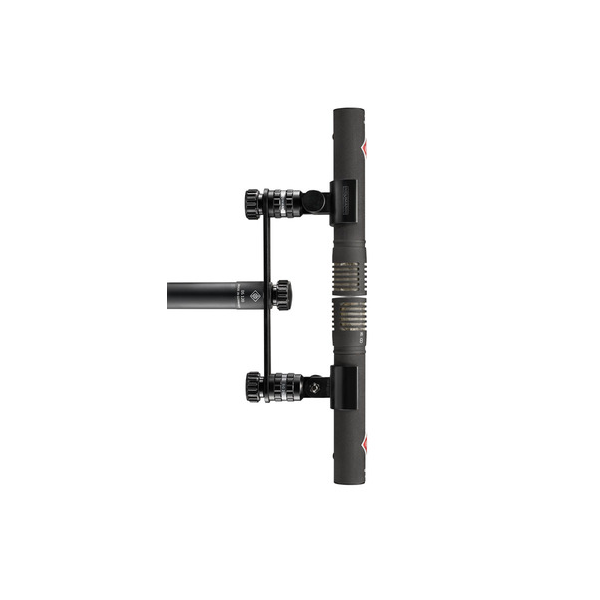

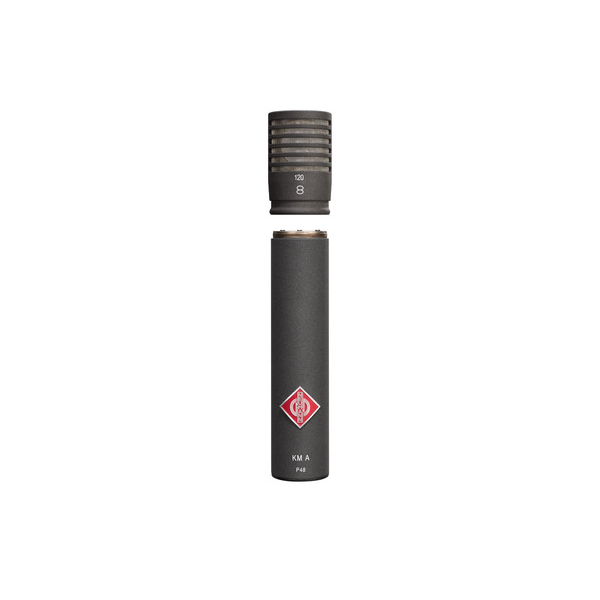

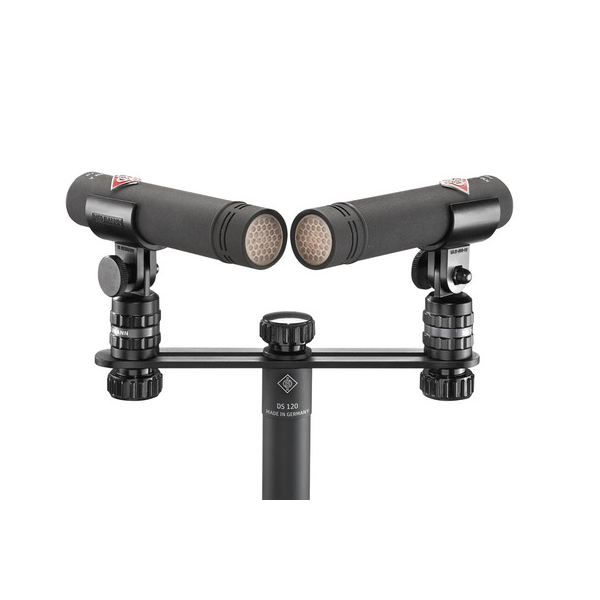

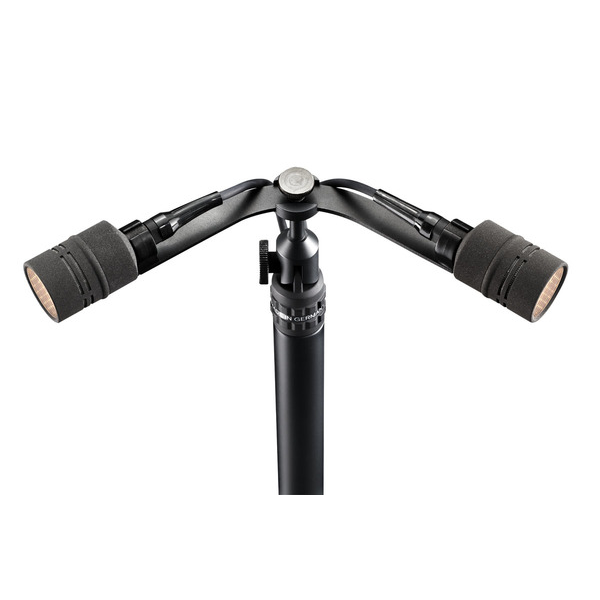

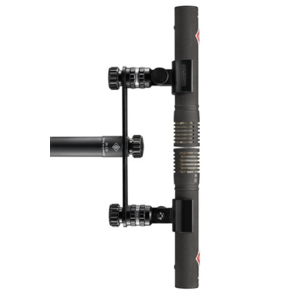

The KK 120 is a pressure gradient transducer with figure-8 characteristic, side-addressed. The figure-8 pattern is realized with a single 16 mm diaphragm. Thus, all sound field components reach the diaphragm directly. As a result, the frequency response curves and sensitivities for 0° and 180°are identical. The KK 120 capsule may be combined with other capsules/microphones for MS-stereo recording.
The digital Neumann microphone technology (Solution-D) will no longer be part of the Neumann product portfolio from 2021. Last order date for dealers will be 31 July 2020. After that, the products will be available as long as stock lasts. Service for all Solution-D hardware products is guaranteed until 31 Dec 2030.
The Remote Control Software (32 Bit, available also as VST plug-in) for the digital Neumann microphones is compatible with Windows 98SE – Windows 10 and Mac OS 8.6 – Mac OS X 10.14.6. There will be no further updates of the RCS software.
|Acoustical operating principle||Pressure gradient transducer|
|Directional Pattern||Figure-8, side-fire|
|Frequency Range||20 Hz...20 kHz|
|Sensitivity at 1 kHz into 1 kohm||12 mV/Pa|
|Rated Impedance||50 ohms|
|Rated load impedance||1000 ohms|
|Equivalent noise level, CCIR¹⁾||25 dB|
|Equivalent noise level, A-weighted¹⁾||15 dB-A|
|Maximum SPL for THD 0.5%²⁾||140 dB|
|Maximum SPL for THD 0.5% with preattenuation²⁾||150 dB|
|Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾||69 dB|
|Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾||79 dB|
|Supply voltage (P48, IEC 61938)||48 V|
|Current consumption (P48, IEC 61938)||max. 3.5 mA|
|Matching connector||XLR 3 F|
|Weight (output stage)||70 g|
|Weight (capsule only)||37 g|
|Length (capsule only)||40 mm|
|Length (microphone)||130 mm|
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
3) measured as equivalent el. input signal
