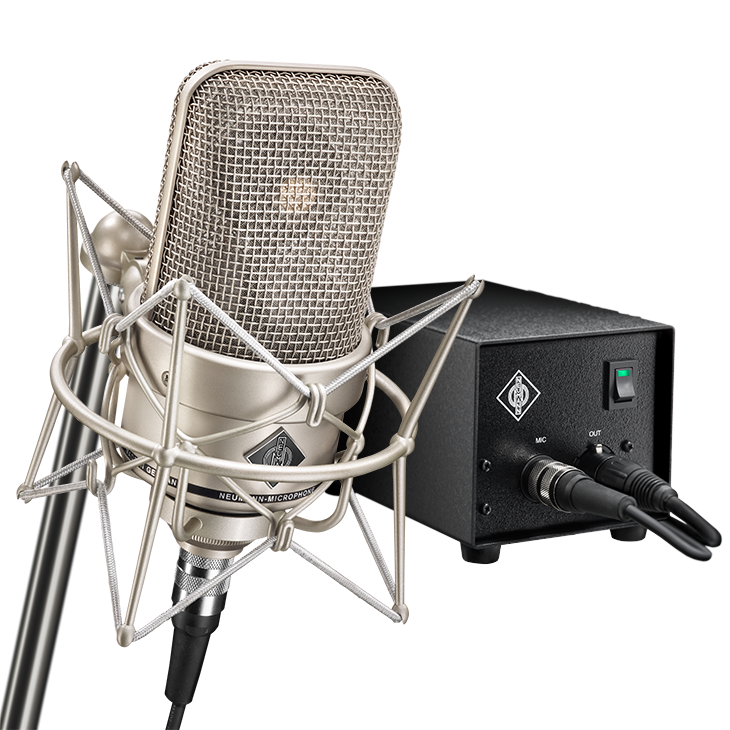

Studio Tube Microphone

M 150 Tube (117 V US)

A unique tube microphone, specially designed for superior orchestral recordings.

  • Recreates the sound of the legendary Neumann M 50
  • Titanium capsule with unique directional characteristic
  • Perfect for orchestral recording

COLORS AND VARIANTS

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

Suited for:

Max. SPL
134 dB
S/N Ratio
79 dB
Sensitivity
20 mV/Pa
Error displaying content.
Acoustical operating principle Pressure transducer
Directional Pattern Omnidirectional
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm 20 mV/Pa
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR¹⁾ 28 dB
Equivalent noise level, A-weighted¹⁾ 15 dB-A
Typical SPL (tube characteristic) for K<0.5%²⁾ 114 dB
Typical SPL (tube characteristic) for K<5%²⁾ 134 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 66 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 79 dB
Maximum output voltage 8 dBu
Dynamic range of the amplifier, DIN/IEC 651, for THD < 0.5%²⁾ 99 dB
Dynamic range of the amplifier, DIN/IEC 651, for THD < 5%²⁾ 119 dB
Power supply N 149 A
Matching connector Microphone: DIN 8 F, Power Supply: XLR 3 F
Weight 800 g
Diameter 78 mm
Length 165 mm

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Omni M 150 Tube

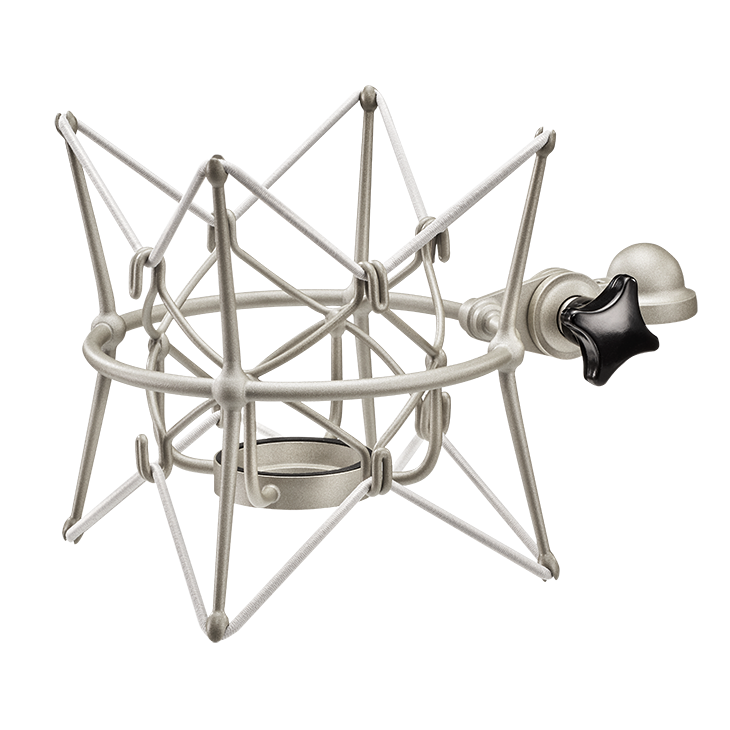

EA 170

Shock Mount

PS 15

Popscreen

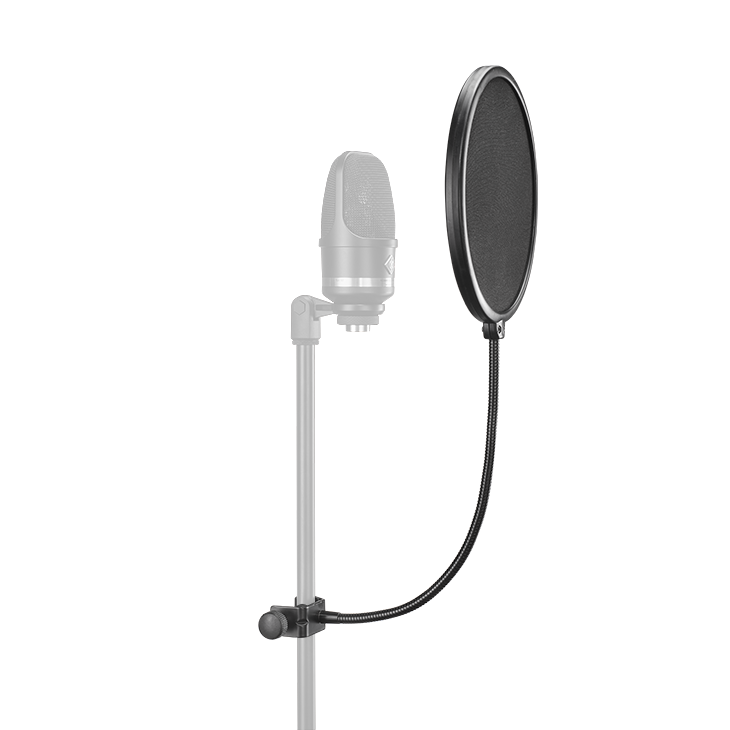

PS 20 a

Popscreen

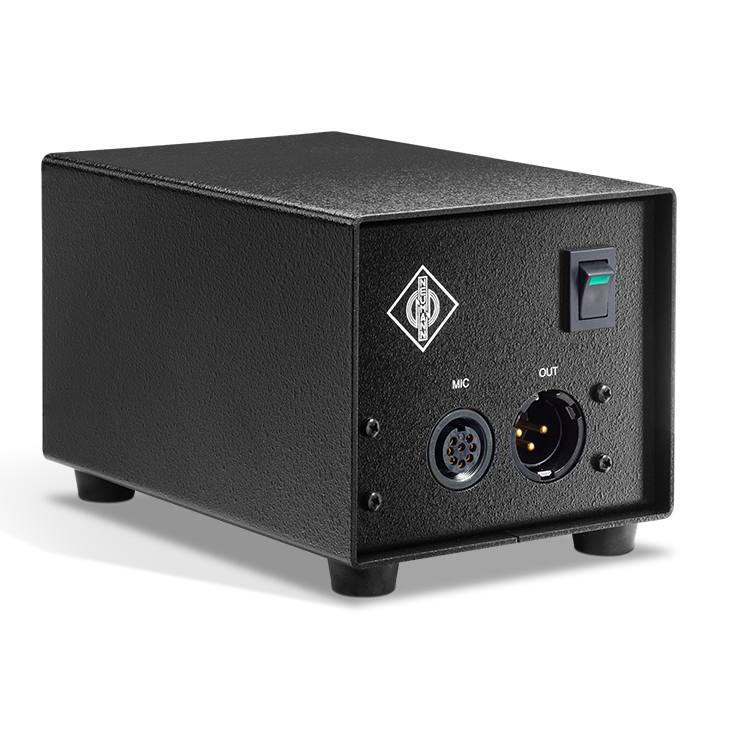

N 149 A

Power Supply

MF 3

Table Stand

MF 4

Floor Stand

MF 5

Floor Stand

STV 4

Stand Extension

STV 20

Stand Extension

STV 40

Stand Extension

STV 60

Stand Extension

Z 26 mt

Shock mount

MNV 87

Auditorium Hanger

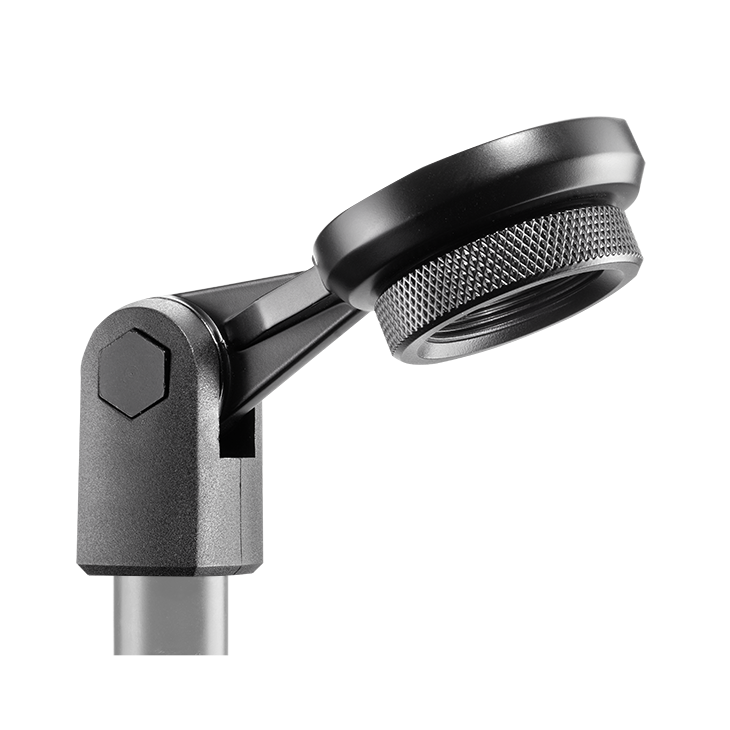

SG 2

Stand Mount

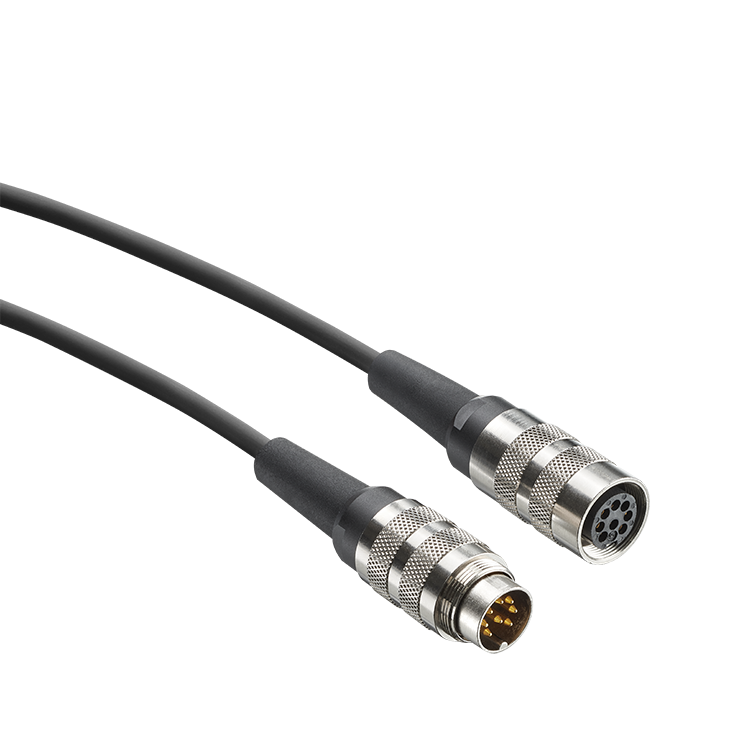

KT 8

Microphone Cable

DOWNLOADS

M 150 Tube (230 V EU)

Color nickel

CAT. NO. 008456

  • M 150 Tube Microphone
  • N 149 A Power Supply
  • EA 170 Shock Mount
  • KT 8 Connecting Cable

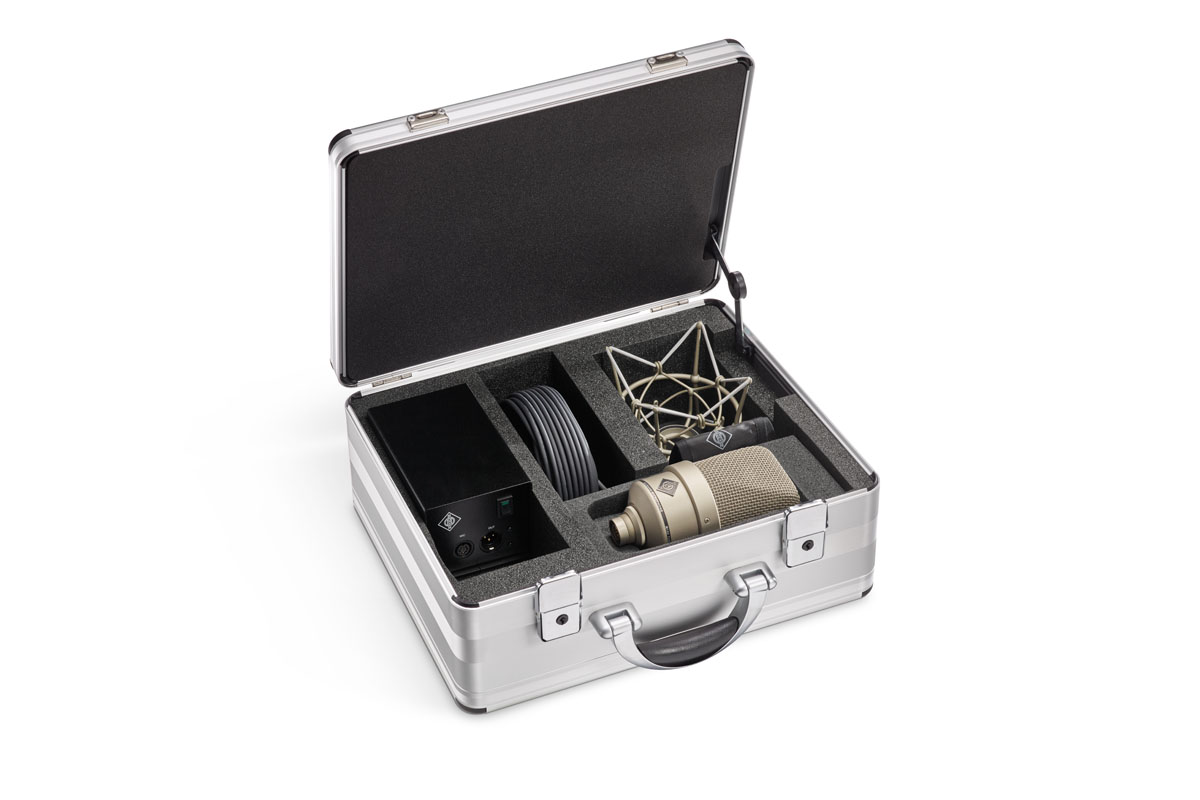

  • Aluminium Case

M 150 Tube (230 V UK)

Color nickel

CAT. NO. 008458

  • M 150 Tube Microphone
  • N 149 A Power Supply
  • EA 170 Shock Mount
  • KT 8 Connecting Cable
  • Aluminium Case

M 150 Tube (117 V US)

Color nickel

CAT. NO. 008457

  • M 150 Tube Microphone
  • N 149 A Power Supply
  • EA 170 Shock Mount
  • KT 8 Connecting Cable
  • Aluminium Case

Suited for:

Max. SPL
134 dB
S/N Ratio
79 dB
Sensitivity
20 mV/Pa

Awards

TEC Award 2002

WARNING (for California residents only): This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects and other reproductive harm. For more information go to: www.p65warnings.ca.gov.
