Network Audio Interface

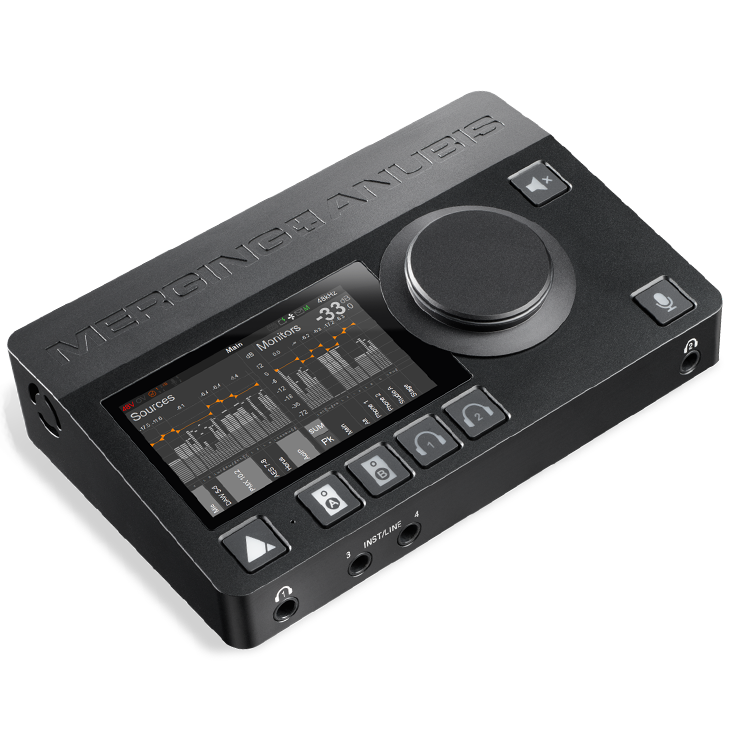

Merging Anubis Premium

Anubis is a powerful and versatile audio interface with state-of-the-art technology. It offers switchable Missions for different audio applications, internal signal processing, and redundant network connectivity for I/O expansion via RAVENNA/AES67 or Dante.

  • Cutting-edge converter technology with unparalleled dynamic range
  • Dedicated Missions for optimal workflow in various key applications
  • Advanced digital signal processing (EQ, dynamics, reverb) and routing capabilities
  • Redundant AES67 connectivity enables seamless I/O expansion and complete control
  • Intuitive touchscreen GUI, allows for stand-alone operation

COLORS AND VARIANTS

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

Error displaying content.
MICROPHONE INPUTS 1-2 (COMBO)
Dynamic Range Mic / Mic Boost 137 dB / 128 dB (A-weighted, typ.)
Equivalent Input Noise Mic / Mic Boost (150Ω Source) < -125 dBu / -128 dBu (A-weighted, typ.)
Input Impedance (Differential) ~ 10kΩ
Gain Range (Software controlled) 0 dB to +66 dB
Phantom Power (Software Switchable Per Channel) +48V
Phase Reverse (Software Switchable Per Channel) Yes
Low Cut filter (Software Switchable Per Channel) -12 dB/octave, 80 Hz
LINE INPUTS 1-2 (COMBO)
Dynamic Range, ref +24 dBu 139 dB (A-weighted, typ.)
Max Line Input Level +24 dBu
Input Impedance (Differential) ~ 10kΩ
THD+N Preamp + A/D 1kHz @ 0 dBFS < - 104 dB (0.0006%)
Interchannel Crosstalk @ 1kHz < -140 dB
Sensitivity Range for 0 dBFS (Software controlled) +24 dBu to -42 dBu
INSTRUMENTS / HI-Z & LINE INPUTS 3-4
Dynamic Range, ref +18 dBu 136 dB (A-weighted, typ.)
Max Input Level +18 dBu
Input Impedance (Single ended / Differential) ~ 1MΩ / ~ 2MΩ
Gain Range (Software controlled) 0 dB to +66 dB
Sensitivity Range for 0 dBFS (software controlled) +18 dBu to -48 dBu
MAIN OUTPUTS 1-2
Dynamic Range 123 dB (A-weighted, typ.)
Output Impedance < 70Ω
THD+N 1 kHz @ 0 dBFS < - 110 dB (0.0003%)
LINE OUTPUTS 3-4
Dynamic Range 123 dB (A-weighted, typ.)
Max output Level (Differential / Single ended) +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
Output Impedance < 70Ω
HEADPHONES
Headphone Jacks 2 Independent ¼” TRS Female Stereo 6.3 mm
Dynamic Range (A-weighted, typ.) High / Low < -122 dB / - 117 dB
Max output Level High / Low 17.1 dBu / 7.8 dBu
Output Impedance < 0.035Ω
THD+N 1 kHz @ 0 dBFS High/Low < -108 dB (0.00039%) / -110 dB (0.0003%)
A/D – D/A CONVERSION
Supported Sample Rates PRO 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Supported Sample Rates PREMIUM 44.1 kHz up to 352.8 kHz (DXD), 384 kHZ, DSD 64, DSD128 & DSD256
Bit Depth Per Sample 32
COMPLEMENTARY I/O
RAVENNA/AES67 (Gigabit Ethernet) 2x Locking EtherCON compatible with standard RJ45 connectors
Built-in Talkback microphone Mono omnidirectional CMOS/MEMS membrane technology
GPI/MIDI Input ¼” TRS Female
GPO/MIDI Output ¼” TRS Female
POWER
Power Supply Voltage (DC) 9V to 15V DC
Power Supply Connector Type Barrel jack, int. 2.5mm/out. 5.5mm, with locking function
Power Consumption (Typ.) 15W
P-o-E (Power Over Ethernet) IEEE 802.3at (PoE+) class 0 Power-over-Ethernet standard
