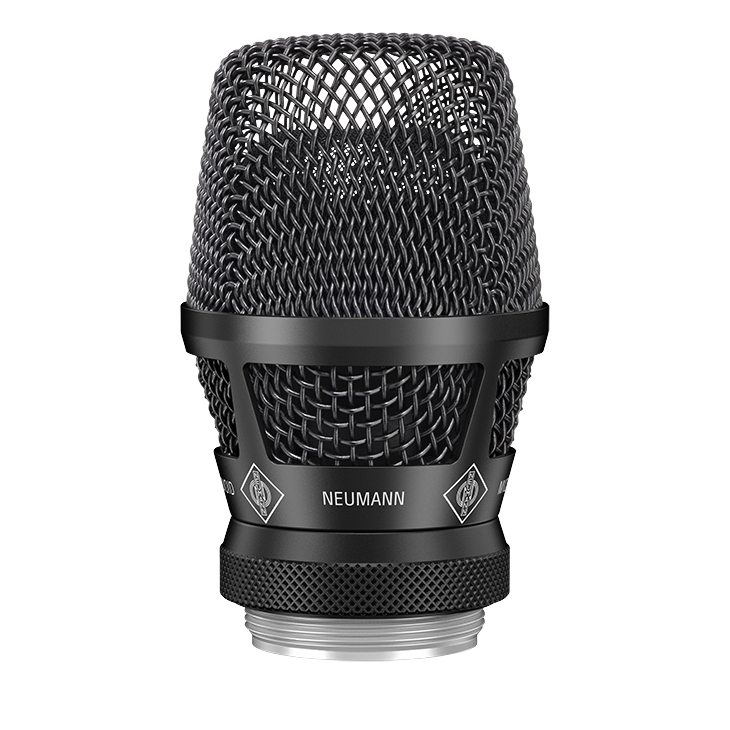

Universal Capsule Head Supercardioid

KK 105 U bk

Supercardioid condenser capsule head for 3rd party* wireless systems

  • Precise supercardioid pattern with high feedback resistance
  • Studio grade Neumann condenser capsule
  • For 3rd party handheld transmitters

COLORS AND VARIANTS

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

Suited for:

Max. SPL
152 dB
S/N Ratio
62 dB
Sensitivity
4 mV/Pa
Error displaying content.
Directional Pattern Supercardioid
Frequency Range 40 Hz – 20 kHz
Sensitivity at 1 kHz into 50 kohm 4 mV/Pa ≅–48 dBV ± 1 dB
Signal-to-noise ratio, CCIR¹⁾ (rel. 94 dB SPL) 62 dB
Signal-to-noise ratio, A-weighted¹⁾ (rel. 94 dB SPL) 73 dB
Equivalent noise level, CCIR 32 dB
Equivalent noise level, A-weighted 21 dB-A
Maximum SPL for THD < 0.5%²⁾ 152 dB
Weight approx. 183 g
Diameter 48 mm
Length 80 mm
Operating temperature range: 0 °C - +70 °C (32 °F - 158 °F)
Storage temperature range: −20 °C - +70 °C (−4 °F - 158 °F)
Humidity range: max. 90 % at +20 °C
Compatible transmitters :
Shure: Axient Digital, ULX-D, QLX-D, SLX-D Series
Sony: all models
Mipro: ACT Series
Lectrosonics: all models

1) according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Supercardioid KK 105 U

DOWNLOADS

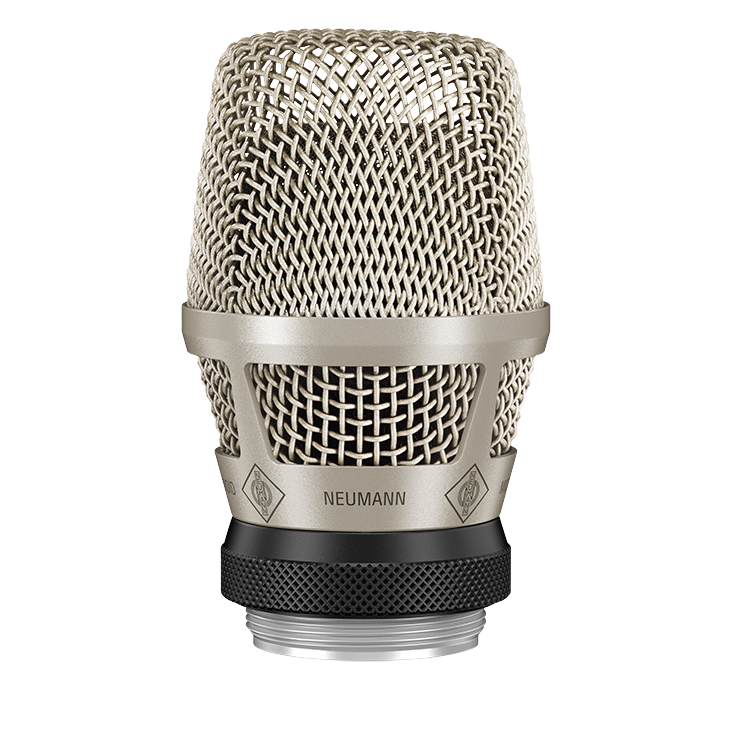

KK 105 U

Color nickel

CAT. NO. 008722

  • Padded nylon case
  • Safety guide
  • Quick Guide

KK 105 U bk

Color black

CAT. NO. 008723

  • Padded nylon case
  • Safety guide
  • Quick Guide

Suited for:

Max. SPL
152 dB
S/N Ratio
62 dB
Sensitivity
4 mV/Pa
