震撼灵魂,启用即非凡
凭借其数字内核,KH 80 DSP音箱可支持过滤功能和房间调整选项,从而将参考电平还原到任何环境。 即使采用紧凑型设计,它也具有非凡的备用功率以及诺音曼音箱理念的经典优势:清晰定义的扩散角度、无失真设计和考究的材料选择。
Free field frequency response ±6 dB | 53 Hz … 21 kHz |
---|---|
Free field frequency response ±3 dB | 57 Hz … 21 kHz |
Free field frequency linearity deviation between 100 Hz and 10 kHz | ± 0.7 dB |
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
Sine wave output with a THD < 0.5 % at 1 m in half space | 90 dB SPL (>200 Hz) |
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 108.8 dB SPL |
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 102.8 dB SPL |
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 96.8 dB SPL |
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions | 104 dB(C) SPL |
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced | ±0.26; ±0.23; ±0.17 dB |
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) | 93 dB(C) SPL |
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) | 100 dB(C) SPL |
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) | 88 / 93 dB(C) SPL |
Dynamic range A-D | 114 dB(A) |
Dynamic range A-D-A | 111 dB(A) woofer; 112 dB(A) tweeter |
Dynamic range D-A | 114 dB(A) woofer; 117 dB(A) tweeter |
Latency | 2 ms (A-D-A linear phase) |
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) | 91 / 96 dB(C) SPL |
Display Brightness | via Neumann.Control |
Bass Extension (Hz, -6 dB) | 53 |
Maximum output level (dB SPL) | 108.8 |
Max. Listening Distance up to (m) | 3 |
Analog input(s) | XLR / 6.3 mm (¼”) Jack: analog electronically balanced |
Analog input impedance | 14k Ohms |
Max. input level | +24 dBu for 94 dB SPL setting; +18 dBu for 100 dB SPL setting; +10 dBu for 108 dB SPL setting; +4 dBu for 114 dB SPL setting |
Common mode rejection ratio (CMRR) | >56 dB @ 15 kHz |
Volume control | via Neumann.Control software |
Volume control range; resolution | 0 … -∞ dB; 0.1 dB |
Digital converter: resolution; design | 24-bit DAC; Δ∑ |
Digital converter: sampling rate | 48 kHz |
Digital internal sampling rate | 48 kHz |
Delay: User adjustable delay range | 0 … 70 ms |
Delay: Resolution: time; distance | 0.1 ms; 3.44 cm (1 3/8”) |
Delay: Max. frames Audio-video synchronisation (lip sync) | 1.75 (40 ms frames); 2.1 (33 ms frames) |
Delay: Time-of-flight maximum distance | 24 m (79 ft) |
Input gain control (sensitivity) | 0 dB ... -15 dB |
Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
Equalization: Low-Mid | 0; -1.5; -3; -4.5 dB |
Controller design | Digital; active |
Crossover frequency | 1.8 kHz |
Crossover slope | 48 dB/oct; 8th order with phase correction |
Equalization: via Neumann.Control software | 8 x full parametric IIR + low / high shelf global balance |
FIR phase correction | Linear phase (170 Hz ... 16 kHz; +/- 45°) |
Protection circuitry | Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers |
Infrasonic filter: frequency; slope | 61 Hz; 12 dB/Okt. |
Remote control | Neumann.Control software via an RJ45 connector carrying standard IP data |
Display: On; Normal Operation | Neumann logo “White” |
Display: Identification | Neumann logo “Rosé” |
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Neumann logo “Red” |
Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 120 W |
Output power tweeter amplifier (THD+N with limiter deactivated: 10%) | 70 W |
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) | 90 W |
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) | 50 W |
Mains Power Supply: input voltage; frequency | 100-240 V; 50/60 Hz |
Power consumption (230 V / 100 V): Standby | <330 / <50 mW |
Power consumption (230 V / 100 V): Idle | 9 / 8 W |
Power consumption (230 V / 100 V): Full output | 180 W |
In-rush current (Peak) | 20 A |
Standby | Disabled; 90 mins (default); user defined in software |
Cabinet material | Composite polycarbonate |
Cabinet surface finish; color (front / back) | Painted; metallic anthracite (RAL 7021) / Black (RAL 9005) |
Operating conditions | +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing |
Transport/storage conditions | -25° C to +60° C (-13° F to 158° F); <90% RH; non-condensing |
Woofer | 100 mm (4") with protecting black metal grille |

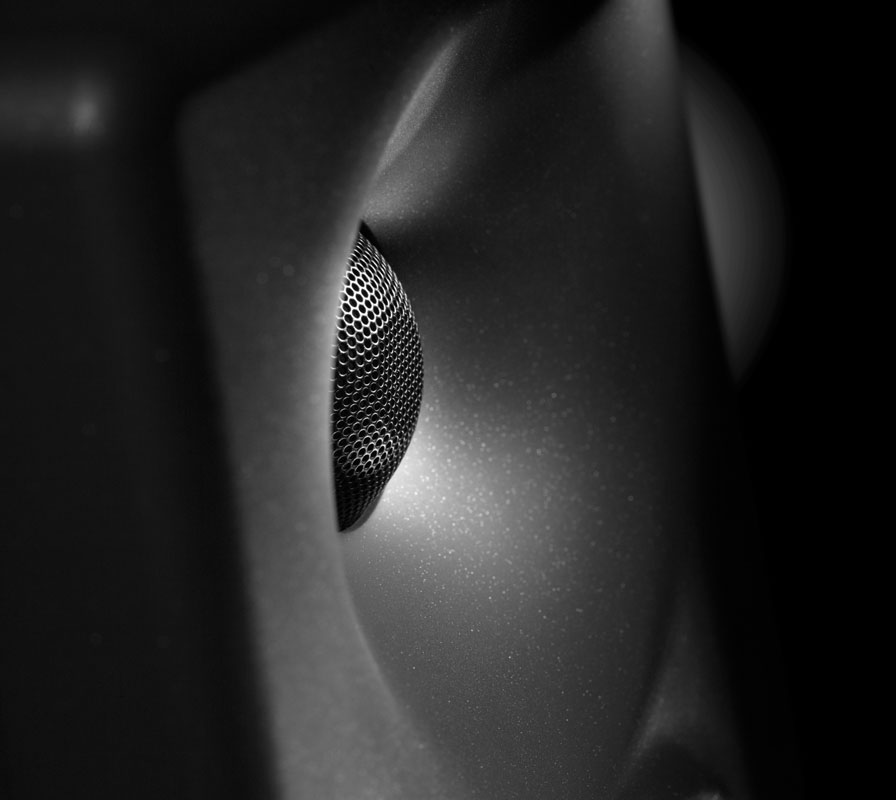

Tweeter | 25 mm (1") with protecting black metal grille |
Mounting points | 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”) |
Product dimensions (height x width x depth) | 233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8") |
External net volume | 6.7 liters |
Packed dimensions (height x width x depth), mm (inches) | 345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8") |
Product weight | 3.5 kg (7 lbs 8 oz) |
Packed weight | 4.1 kg (9 lbs 1 oz) |
Color anthracite
CAT. NO. 506834
Color anthracite
CAT. NO. 506835
Color anthracite
CAT. NO. 506836
Color anthracite
CAT. NO. 506840
