Studio Microphone

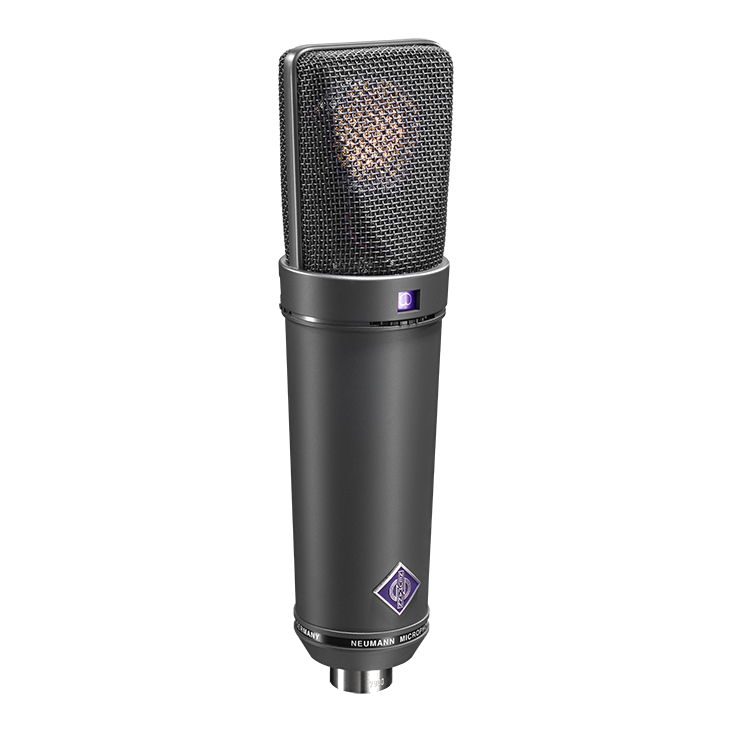

U 89 i mt

Classic sound with enhanced clarity and linearity plus modern flexibility.

Even frequency response in 5 directional patterns
Very low distortion
High SPL capabilities
Transformer balanced circuit

COLORS AND VARIANTS

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

Suited for:

Max. SPL

140 dB

S/N Ratio

77 dB

Sensitivity

8 mV/Pa

DATA & DIAGRAMS

Acoustical operating principle	Pressure gradient transducer
Directional Pattern	Omnidirectional, wide angle, cardioid, hypercardioid, figure-8
Frequency Range	20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm	8 mV/Pa = −42 dBV ± 1 dB
Rated Impedance	150 ohms
Rated load impedance	1 kohms
Equivalent noise level, CCIR¹⁾	28 dB
Equivalent noise level, A-weighted¹⁾	17 dB-A
Maximum SPL for THD 0.5%²⁾	134 dB
Maximum SPL for THD 0.5% with preattenuation²⁾	140 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾	66 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾	77 dB
Maximum output voltage	0.3 dBu
Supply voltage (P48, IEC 61938)	48 V ± 4 V
Current consumption (P48, IEC 61938)	0.8 mA
Matching connector	XLR 3 F
Weight	400 g
Diameter	46 mm
Length	185 mm

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Omni U 89 i

Cardioid U 89 i

Hypercardioid U 89 i

Figure 8 U 89 i

Wide cardioid U 89 i

ACCESSORIES

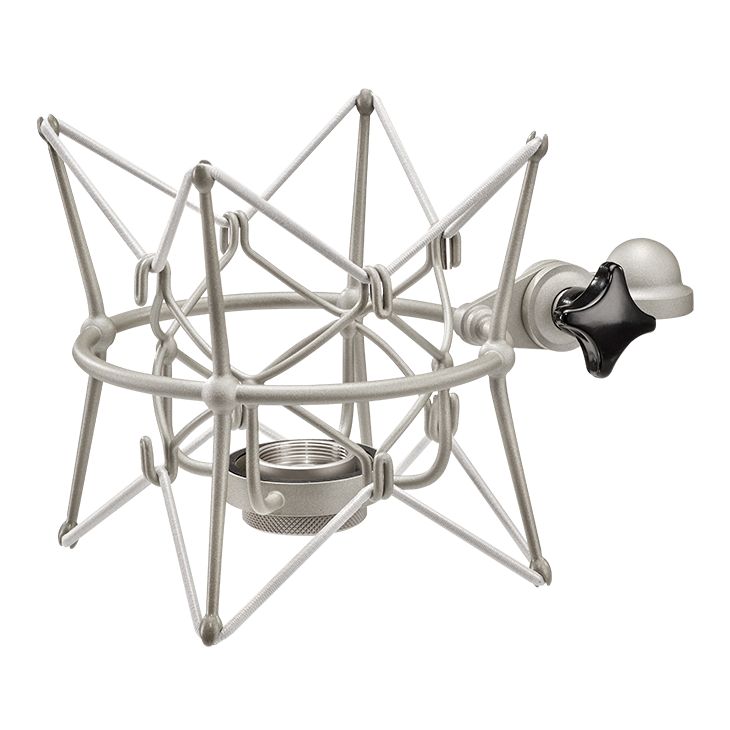

EA 89 A

Shock Mount

PS 15

Popscreen

PS 20 a

Popscreen

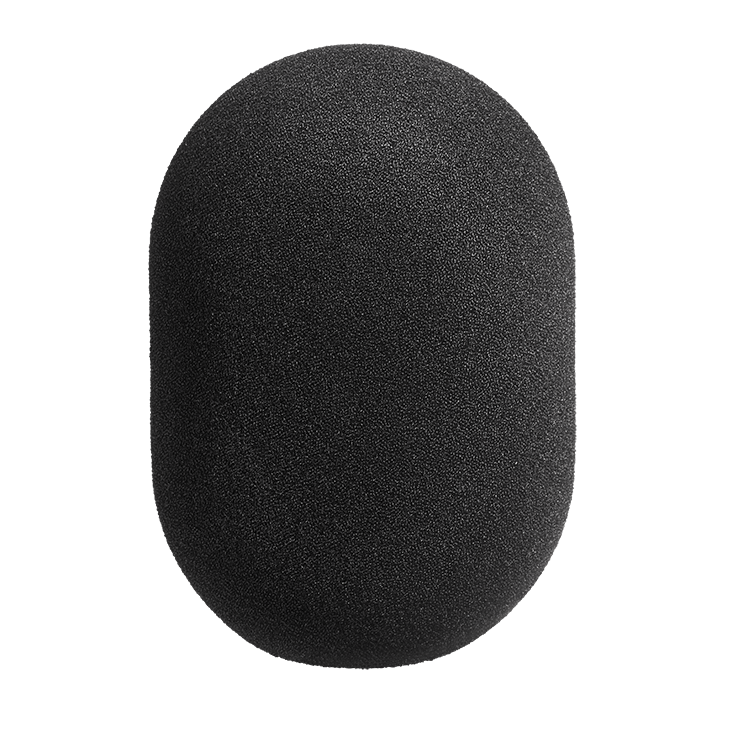

WS 89

Windscreen

N 248

Power Supply

MF 3

Table Stand

MF 4

Floor Stand

MF 5

Floor Stand

STV 4

Stand Extension

STV 20

Stand Extension

STV 40

Stand Extension

STV 60

Stand Extension

Z 26 mt

Shock mount

MNV 87

Auditorium Hanger

DS 120

Double Mount

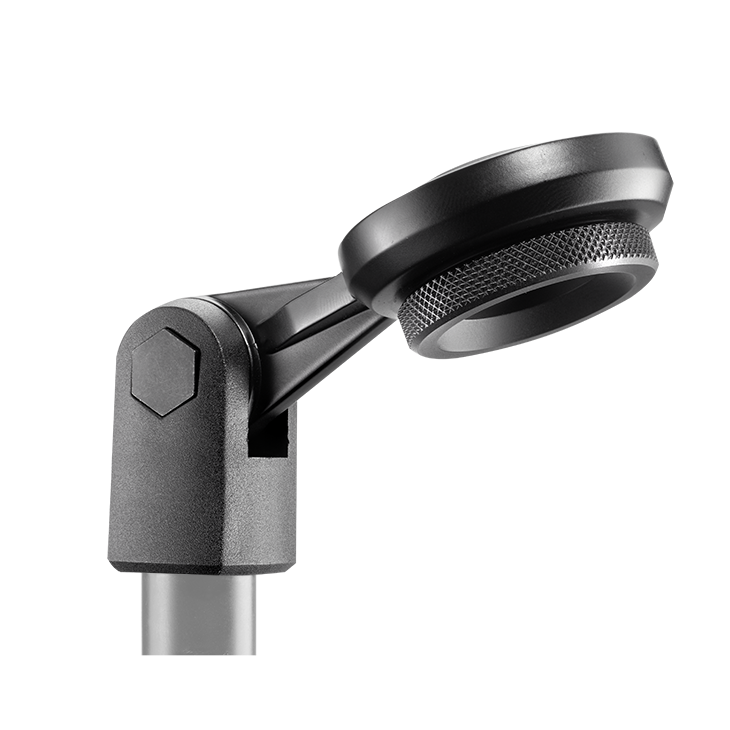

SG 289

Stand Mount

IC 3 mt

Microphone Cable

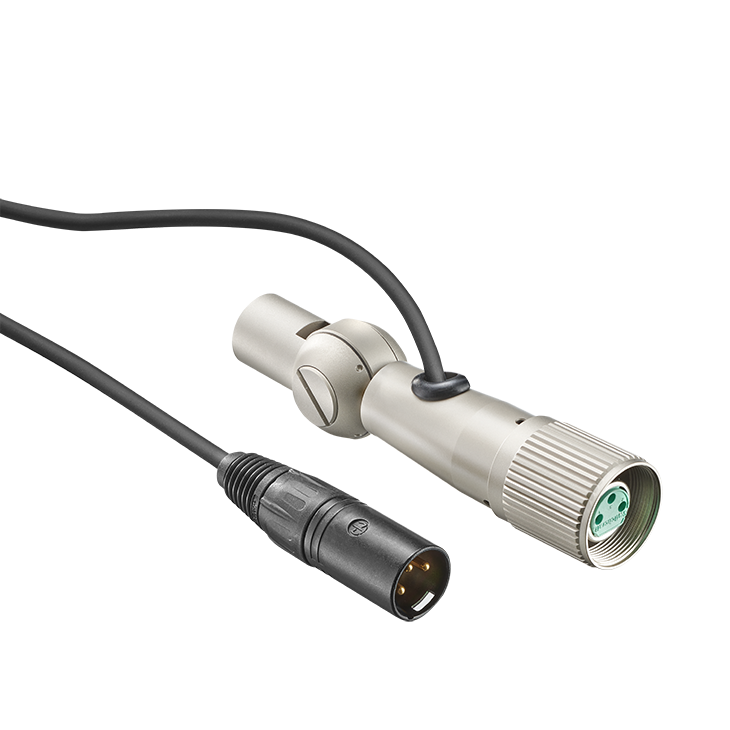

IC 4

Microphone Cable

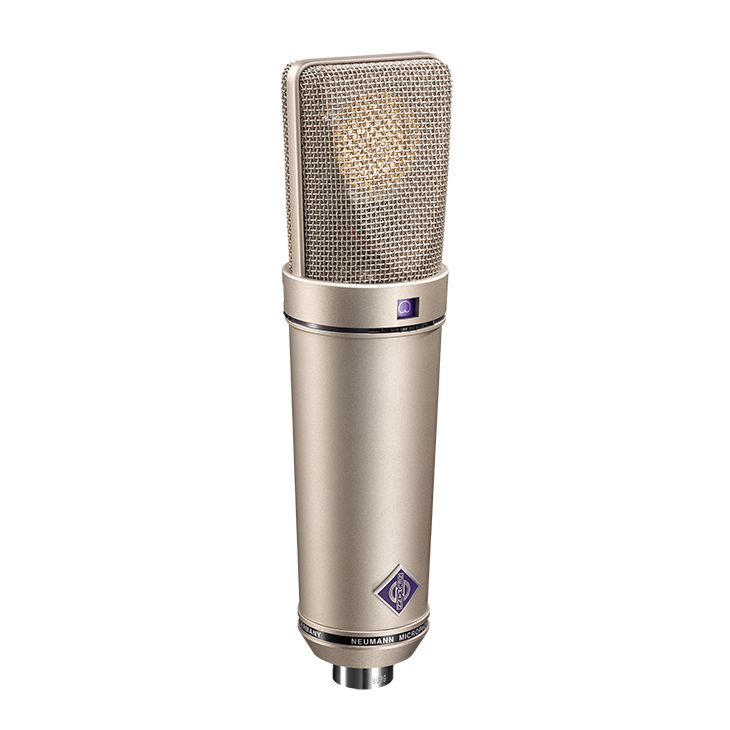

U 89 i

Color nickel

CAT. NO. 006449

U 89 i Microphone
Wooden Box

U 89 i mt

Color black

CAT. NO. 006450

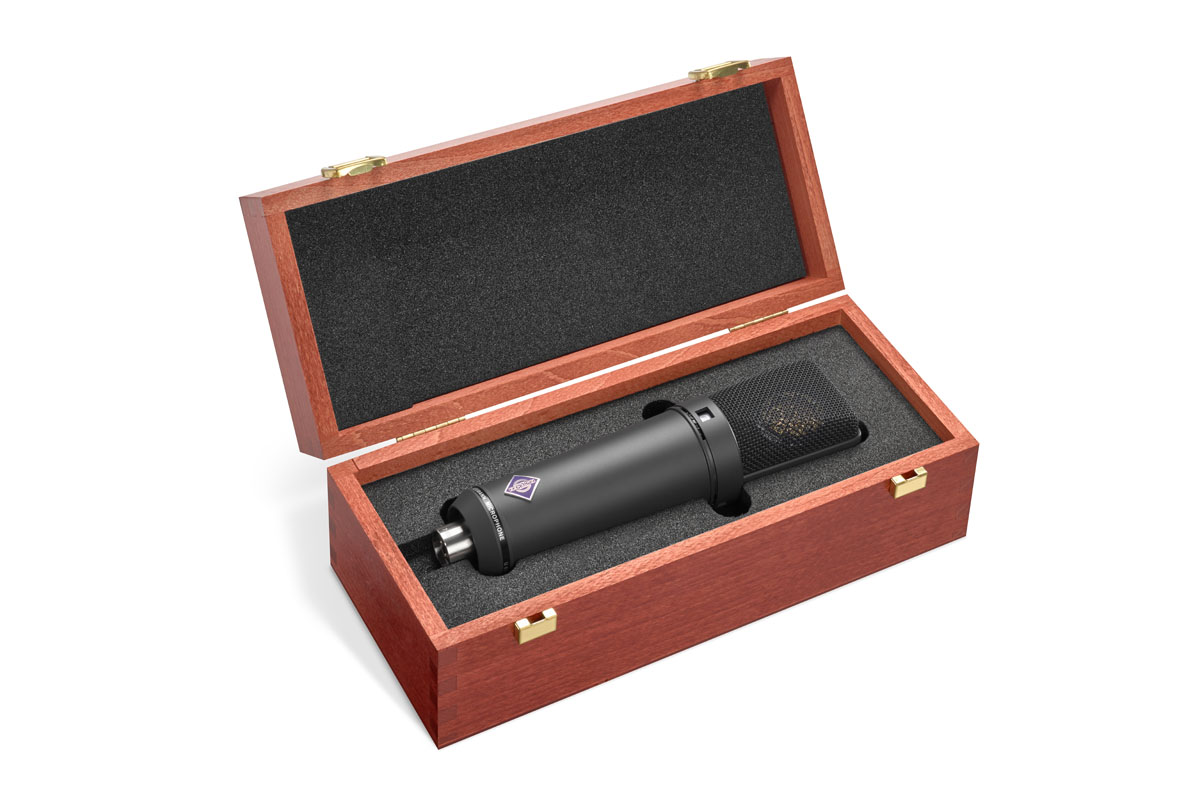

U 89 i mt Microphone
Wooden Box
