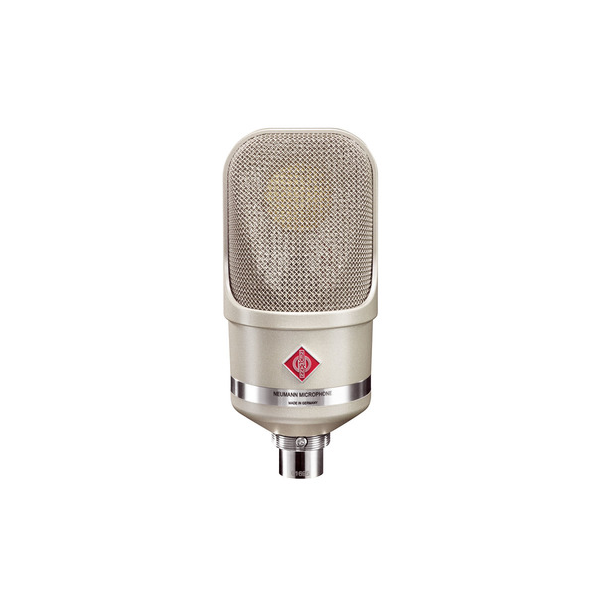

Studio Microphone

TLM 107 Studio Set

Our new state of the art microphone: extremely versatile and surprisingly affordable!

  • Highly defined sound in 5 directional patterns
  • Variable pad and low cut settings
  • All-new capsule design
  • Outstanding transient response

CORES E VARIANTES

Adequado para::

Max. SPL
153 dB
S/N Ratio
84 dB
Sensitivity
11 mV/Pa

The Modern Studio Workhorse

The TLM 107 is a reference class microphone for vocals and instruments with breathtaking realism. Five polar patterns plus variable pad and low cut settings make the TLM 107 exceptionally flexible. And with a dynamic range of 131 dB the TLM 107 captures anything from a slight whisper to massive drums without unwanted noise or distortion.

Dealer Description

21st Century Microphone

The TLM 107 offers true high definition sound quality at an affordable price. Neumann developed this microphone for project and home studio users who prefer to capture an uncolored sound image, true to the original source, in order to retain all options for post processing and mixing. The TLM 107, in turn, offers all the flexibility required to make a high quality recording of any source in any situation.

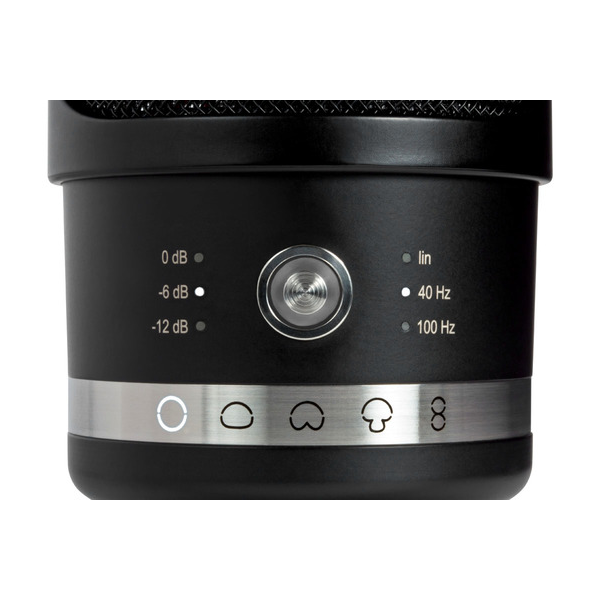

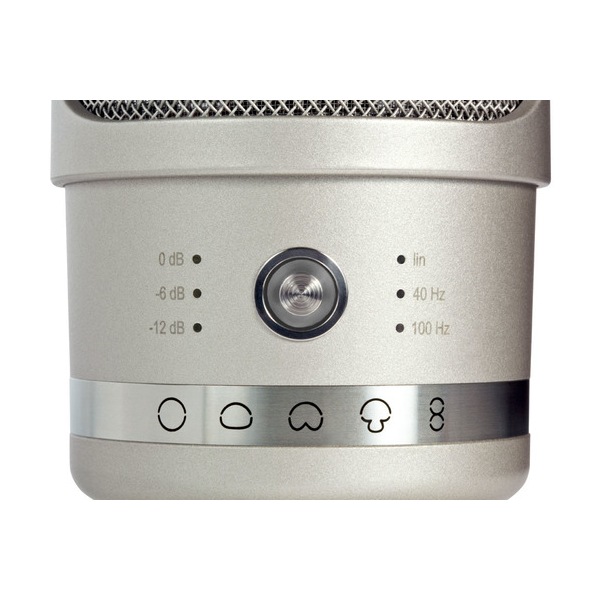

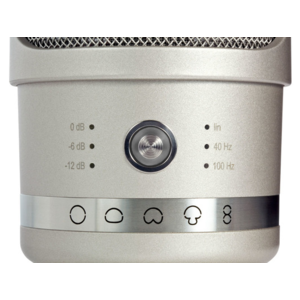

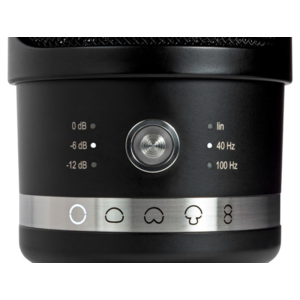

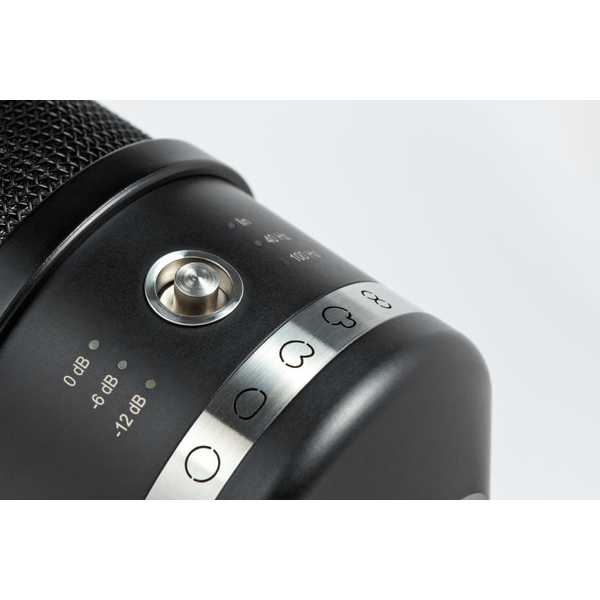

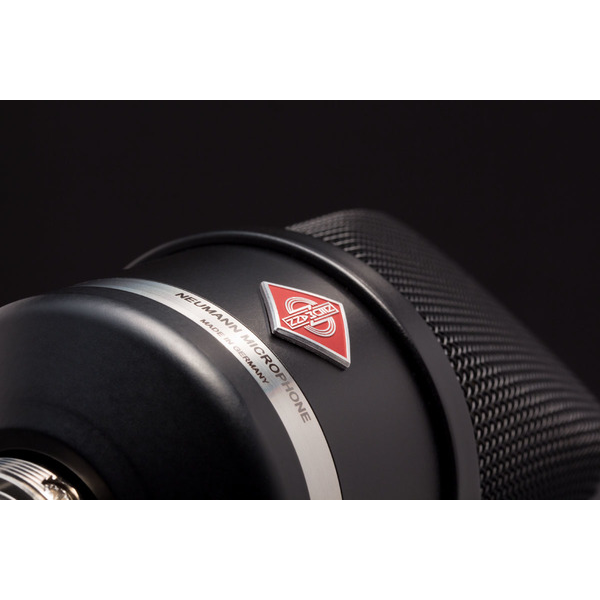

Neumann decided to give the TLM 107 a modern look, although the large tapered headgrille does echo the iconic design of such Neumann classics as the M 49 tube microphone. The stylish navigation toggle on the back of the microphone is a joy to use as it controls all settings in one place: pad (0/–6 /–12 dB), low cut (lin/40 Hz/100 Hz) and polar patterns (omni/wide cardioid/-cardioid/¬hyper¬cardioid/¬figure-8).

The newly developed dual diaphragm condenser capsule is specially designed for the TLM 107 to offer outstanding transient response and an extended, carefully balanced frequency response for all polar patterns. This means, you can adjust the directional pattern according to the recording situation without affecting the overall sound balance. Which is quite extraordinary for a large diaphragm microphone! And, needless to say, the TLM 107 offers true Neumann quality in any setting.

Acoustical operating principle Pressure gradient transducer
Directional Pattern Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm 11 mV/Pa
Rated Impedance 50 ohms
Rated load impedance 1000 ohms
Equivalent noise level, CCIR¹⁾ 22 dB
Equivalent noise level, A-weighted¹⁾ 10 dB-A
Maximum SPL for THD 0.5%²⁾ 141 dB
Maximum SPL for THD < 0.5% with pre-attenuation -6 dB²⁾ 147 dB
Maximum SPL for THD < 0.5% with pre-attenuation -12 dB²⁾ 153 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 72 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 84 dB
Maximum output voltage 10 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3.2 mA
Matching connector XLR 3 F
Weight 445 g
Diameter 64 mm
Length 145 mm

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagramas

Cardioid TLM 107

Cardioid TLM 107 Cardioid TLM 107

Figure 8 TLM 107

Figure 8 TLM 107 Figure 8 TLM 107

Omni TLM 107

Omni TLM 107 Omni TLM 107

Wide Cardioid TLM 107

Wide Cardioid TLM 107 Wide Cardioid TLM 107

Hypercardioid TLM 107

Hypercardioid TLM 107 Hypercardioid TLM 107
TLM 49 Set

EA 1

Shock Mount

EA 1
TLM 49 Set

EA 4

Shock Mount

EA 4
TLM 49 Set

PS 15

Popscreen

PS 15
TLM 49 Set

PS 20 a

Popscreen

PS 20 a
TLM 49 Set

WS 47

Windscreen

WS 47
TLM 49 Set

N 248

Power Supply

N 248
TLM 49 Set

MF 3

Table Stand

MF 3
TLM 49 Set

MF 4

Floor Stand

MF 4
TLM 49 Set

MF 5

Floor Stand

MF 5
TLM 49 Set

STV 4

Stand Extension

STV 4
TLM 49 Set

STV 20

Stand Extension

STV 20
TLM 49 Set

STV 40

Stand Extension

STV 40
TLM 49 Set

STV 60

Stand Extension

STV 60
TLM 49 Set

Z 26 mt

Shock mount

Z 26 mt
TLM 49 Set

MNV 87

Auditorium Hanger

MNV 87
TLM 49 Set

DS 120

Double Mount

DS 120
TLM 49 Set

SG 2

Stand Mount

SG 2
TLM 49 Set

IC 3 mt

Microphone Cable

IC 3 mt
TLM 49 Set

IC 4

Microphone Cable

IC 4

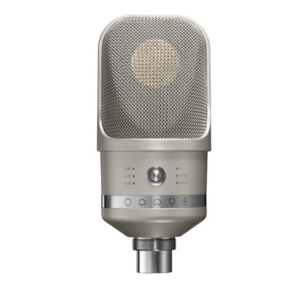

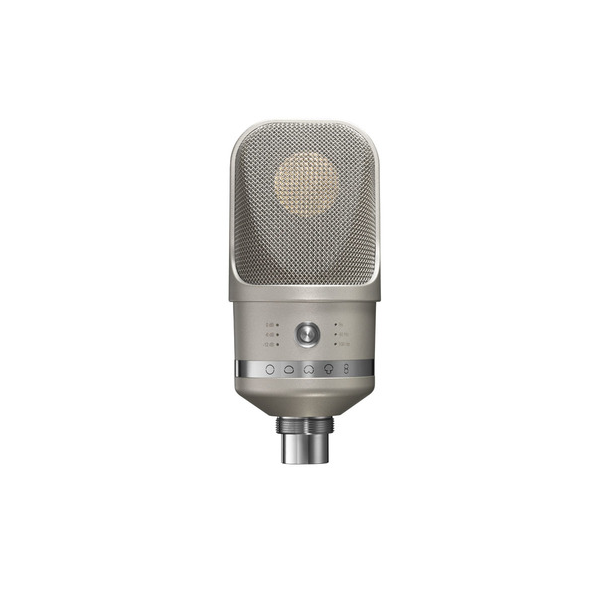

TLM 107

Color nickel

N.º CAT. 008666

TLM 107
  • TLM 107 Microphone
  • SG 2 Swivel Mount
  • Wooden Box

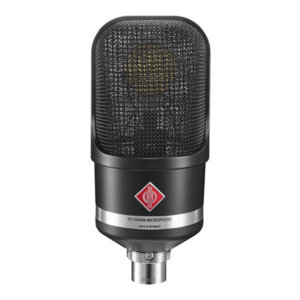

TLM 107 bk

Color black

N.º CAT. 008667

TLM 107 bk
  • TLM 107 bk Microphone
  • SG 2 Swivel Mount
  • Wooden Box

TLM 107 Studio Set

Color nickel

N.º CAT. 008673

TLM 107 Studio Set
  • TLM 107 Microphone
  • EA 4 Shock Mount

TLM 107 bk Studio Set

Color black

N.º CAT. 008674

TLM 107 bk Studio Set
  • TLM 107 bk Microphone
  • EA 4 bk Shock Mount
