Cable Material K 3 x 0,08

Our cable material has been developed by Neumann and is exclusively produced for Neumann by highly qualified manufacturers. All microphone cables have a counter wound double helix copper shielding, assuring a particularly high degree of coverage (95%). HF rejection is exceptionally good, flexibility of the cable excellent.

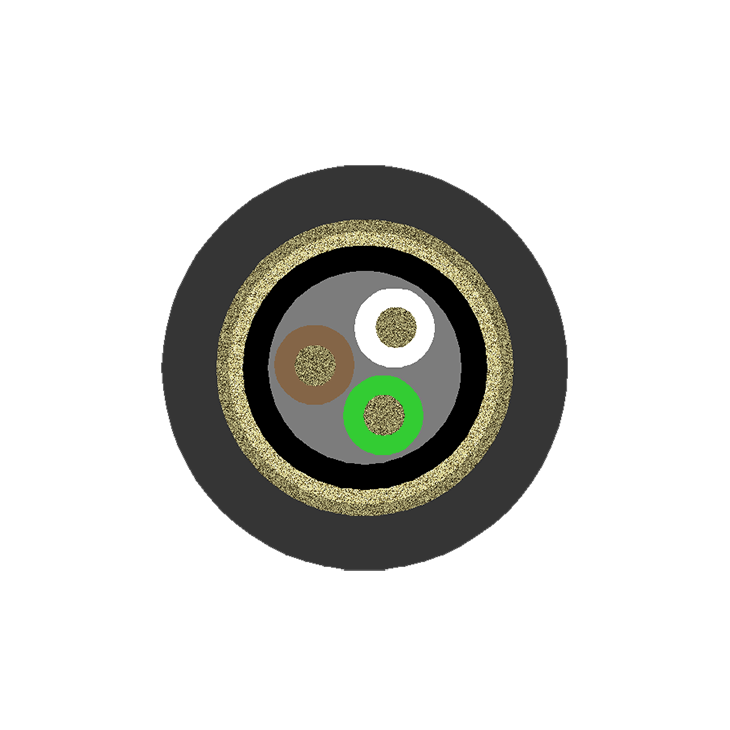

Construction:

  • 3 conductors 0.08 sqmm copper wire 41 x 0.05 mm
  • Insulation: special thermoplastic
  • Shielding: 2 layers of counter wound bare copper wire
  • Jacket: special PVC matte charcoal-gray and round
  • Printing "Georg Neumann GmbH Berlin - Made in Germany"
  • Overall diameter: 3.4 mm

Price on request.

Technical Data
Conductor resistance: < 240 Ohms/km
Insulation resistance: > 20 MOhms x km
Capacitance core/core: 105 nF/km (1 kHz)
Test voltage core/core: 1.2 kV
Test voltage core/shield: 0.6 kV
Temperature range: - 20° C to + 70° C

K 3 x 0,08

Couleur black

CAT. NON. 062728
