Power Supply

NU 67 V

Power supply for all U 67 Tube Microphones

NU 67 V
NU 67 V

We need your consent to display this content

By clicking on "Accept" you agree to the data processing to. Further information on data processing can be found under "More information".

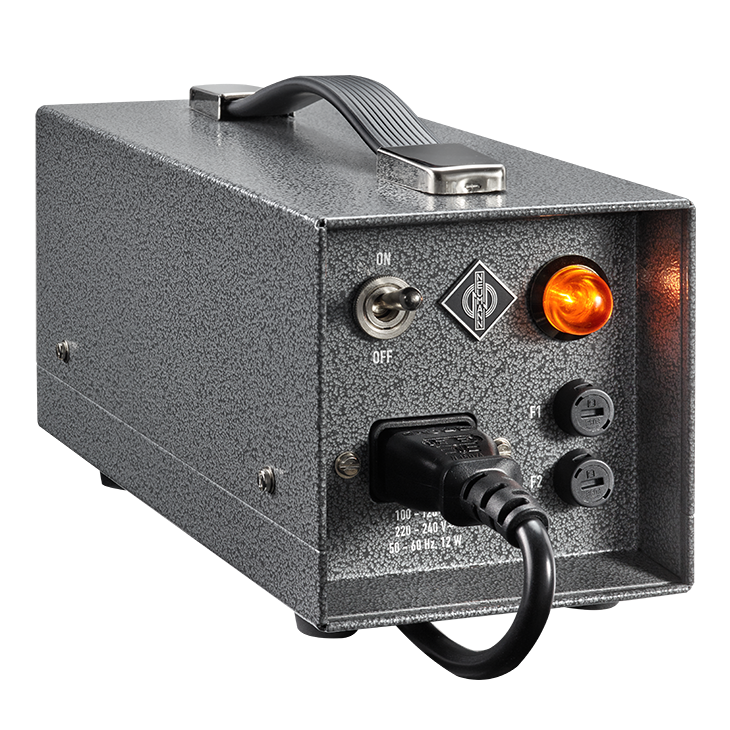

Power Supply NU 67 V

The NU 67 V power supply generates the operating voltages for all U 67 tube microphone. This classical power supply unit contains a mains transformer. It automatically switches between the 100-120 V and 220-240 V ac mains voltage ranges. Mains power is connected through a standard IEC 320 C14 socket. The microphone connects via a UC 5 cable. The microphone signal is fed to a XLR 3 M connector. The modulation output is transformer balanced.

The unit works with current limiting, effecting a soft start of the tube. The UC 5 cable between microphone and power supply can be up to 50 m long. Modulation cable lengths up to approx. 300 m in total are allowed. Three mains power cables enclosed, for EU, UK, and US sockets.

Technical Data:

Mains voltage: 100-120 V and 220-240 V / 50-60 Hz

Output voltages: for U 67

Power plug: Euro/US/UK H x W x D: 120 x 100 x 220 mm

Weight approx.: 2 kg

NU 67 V

Couleur grey

CAT. NON. 008679

  • NU 67 V Power Supply
