Studio Tube Microphone
カラーとバリエーション
適しています:

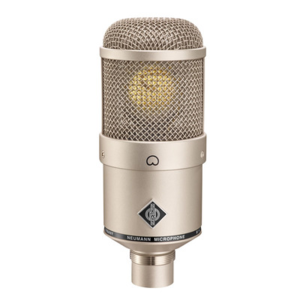

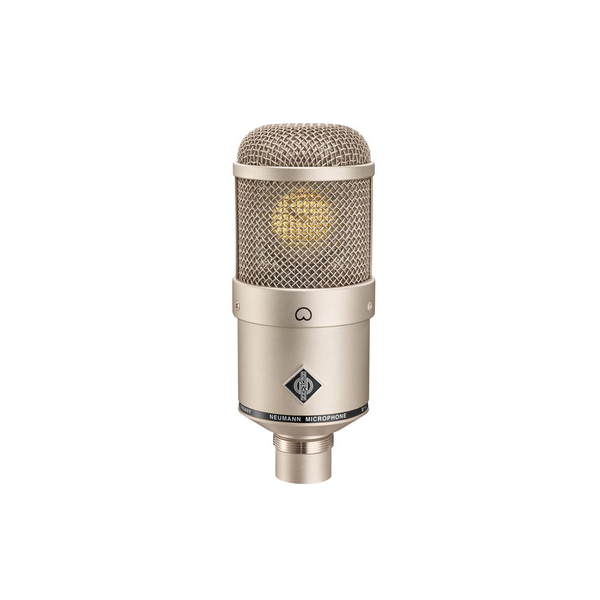

The M 147 Tube brings back the classic sound of Neumann’s famous tube microphones of the 1950s. The M 147 tube is a cardioid microphone using the same large diaphragm capsule as the legendary U 47 but combines it with an innovative tube circuit for lowest noise. Its transformerless output stage ensures superb performance at an attractive price.
With digital recording and ultra-clean processing, many engineers find themselves looking for tube microphones to reinstate a more “analogue” sound character. The Neumann M 147 is a tube microphone specially designed for 21st century recording chains. Its acoustic design is inspired by the legendary U 47, which revolutionized studio recording in the 1950s with its superior sound quality and is still used daily in top studios around the world. The head amplifier of the M 147 combines classic tube circuitry with an advanced solid state output stage for vintage sound with a modern punch.

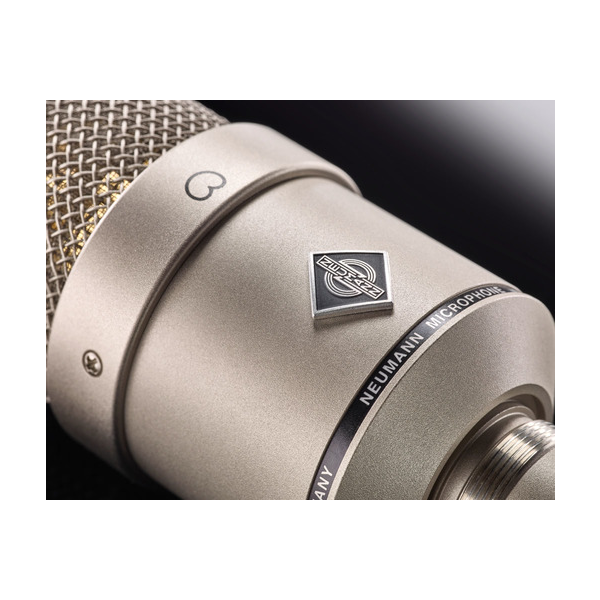

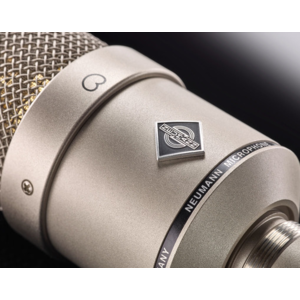

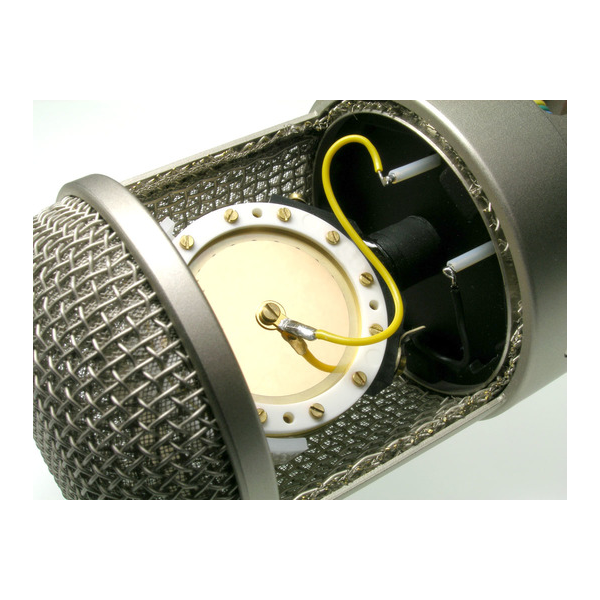

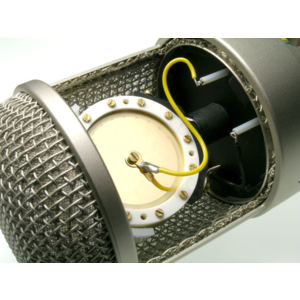

The headgrille of the M 147 is more than a visual statement: It is a slightly more compact version of the iconic U 47 capsule head, partly responsible for its legendary sound. Even more importantly, it shares the same sound transducer, the classic K 47 large diaphragm condenser capsule, known for its exceptional combination of warmth and presence. The capsule signal is amplified by a classic tube circuit using a specially selected subminiature triode. While vintage microphones relied on large and expensive audio transformers for the final impedance conversion, the M 147 uses a state-of-the-art transformerless solid state output stage, which allows for long cable runs up to 300 m without transmission losses and ensures a very direct sound with unrestricted bass response.

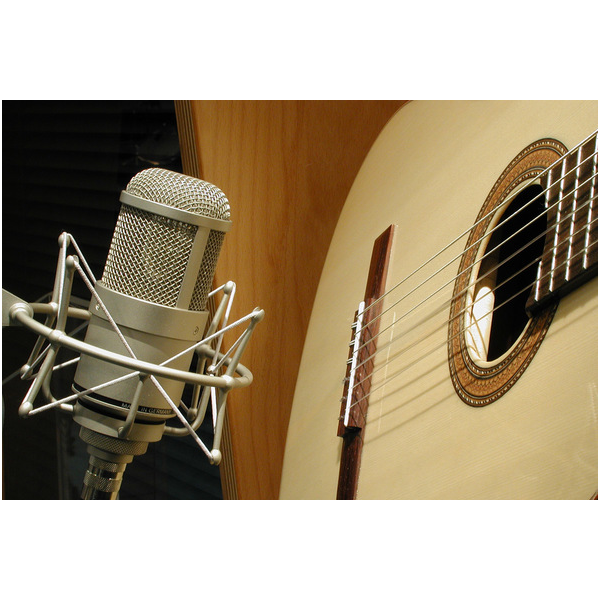

The M 147’s unique sound character with unsurpassed presence and a distinctive midrange focus is ideally suited for vocals, both male and female, as well as speech applications such as voice-over and film dubbing. The M 147 is also an excellent spot mic for any solo instruments. Unlike many other tube microphones, the M 147 can be used for quiet sources, due to its exceptionally low self-noise of only 12 dB-A. Although its max SPL figure of 114 dB appears low, the M 147 works well with louder sources, too, as distortion rises very slowly to 5% THD for 134 dB SPL. This behavior is intentional: The M 147 creates a sense of elevated loudness by means soft saturation – just like in the days of analog recording.
Acoustical operating principle | Pressure gradient transducer |
---|---|
Directional Pattern | Cardioid |
Frequency Range | 20 Hz ... 20 kHz |
Sensitivity at 1 kHz into 1 kohm | 20 mV/Pa |
Rated Impedance | 50 ohms |
Rated load impedance | 1 kohms |
Equivalent noise level, CCIR¹⁾ | 24 dB |
Equivalent noise level, A-weighted¹⁾ | 12 dB-A |
Typical SPL (tube characteristic) for K<0.5% 3²⁾ | 114 dB |
Typical SPL (tube characteristic) for K<5% 4²⁾ | 134 dB |
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ | 70 dB |
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ | 82 dB |
Maximum output voltage | 8 dBu |
Dynamic range of the amplifier, DIN/IEC 651, for THD < 0.5%²⁾ | 102 dB |
Dynamic range of the amplifier, DIN/IEC 651, for THD < 5%²⁾ | 122 dB |
Power supply | N 149 A |
Matching connector | Microphone: DIN 8 F, Power Supply: XLR 3 F |
Weight | 460 g |
Diameter | 57 mm |
Length | 142 mm |
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
3) measured as equivalent el. input signal
Color nickel
CAT. NO. 008435
適しています:
"... With the lowest self- noise of any tube mic, it is fully compatible with today´s ultra-quiet digital systems."
MIX 8/1999
"The M 147 Tube is a thoroughly recommendable product."
Production Partner 11/1998
"I have to say that the M 147 did impress on voice from the start... "
LINE UP 8/9 1999
"Reproduction of the nuances of the speaker´s voice and its smoky timbre is outstanding; very nice also the proximity effect even with nearly inaudible whispering." "The Neumann team has really done its homework. The M 147 puts an excellent tube mic into the hands of the recording community - at a price that is incredible for Neumann."
Solo 1/1999
"For Diana Krall´s vocal, the M 147 Tube was crystal clear. Diana sings softly, and there´s a breathiness and an air to her voice that the M 147 really captured."
EQ Magazine 3/1999
"Any audio engineer worth his salt would sell his own grandmother for this mic. Why if Granny knew her audio engineering, she would even feel flattered!"
Soundcheck 12/1999
