D-01

UMA NOVA ERA

O D-01 é o microfone digital AES 42 de ponta da Neumann, possuindo uma nova cápsula de grande diafragma com resposta linear em todos os padrões direcionais. A faixa dinâmica completa de 130 dB é transferida para o mundo digital sem perda de qualidade. As funções DSP incluem ganho digital, corta-baixas, limitador de pico, compressor/limitador e de-esser.

Dealer Description

The Final Frontier

In the past decades, sound recording and the entire processing chain went digital. Digital technology offers many advantages, such as lossless transmission, copying, and storage. While analog processing is characterized by signal degradation, accumulating with every step, there is no loss of information in an all-digital system. However, in audio environments, digitization begins only after the microphone and preamp. Advances in sound fidelity can be made by implementing the A/D conversion earlier in the signal chain, i.e. by digitizing the capsule signal.

A Milestone

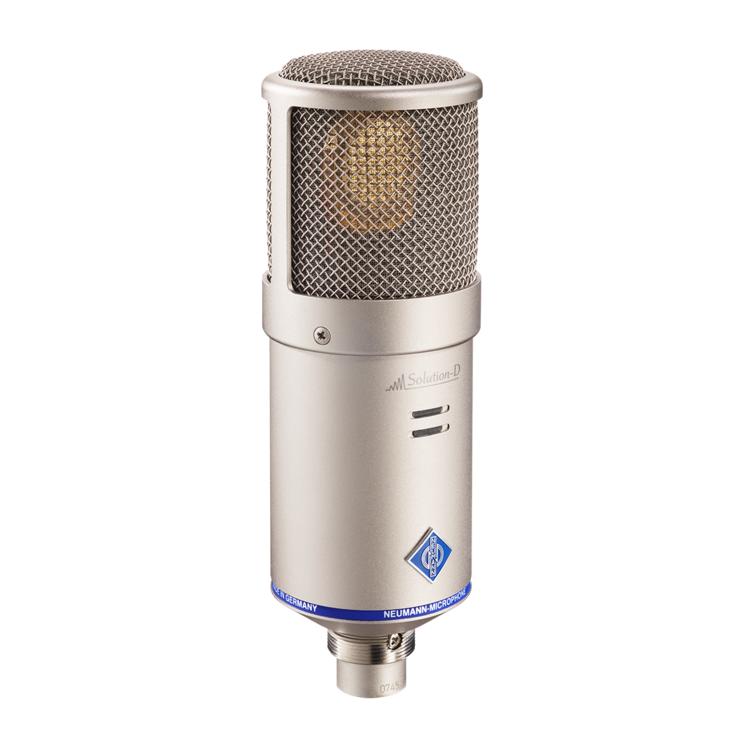

The D-01 is the flagship of Neumann’s “Solution-D” line of digital microphones. Its custom designed A/D converter covers the entire dynamic range of the condenser capsule: 130 dB – that’s roughly 10 dB more than even mastering grade converters are capable of. Additionally, the D-01 offers internal DSP processing, such as digital gain, a variable low cut, a compressor/limiter/de-esser, and a peak limiter. All parameters may be stored in the microphone and are remote controlled using the RCS software (which may run on the DAW host computer). The D-01 supports sample rates up to 192 kHz (24 bit), the microphone output is compliant to the AES 42 standard for digital microphones.

Uncolored Sound with Maximum Flexibility

The D-01 is designed for highest fidelity. Its newly developed large diaphragm capsule is an advanced design with a smooth and even response in all directional patterns (omni, cardioid, figure-8, and twelve intermediate positions). Transient response is outstanding. The D-01 can handle sound pressure levels of up to 138 dB without preattenuation and has an incredibly low self-noise of only 8 dB-A, which is unprecedented for a multipattern microphone. With its uncolored sound, free from noise and distortion, the D-01 retains all options for post-processing.

Applications

The Neumann D-01 is a studio microphone for all applications. It is a superb vocal microphone with a beautifully natural sound as well as a universal microphone for all kinds of instruments. Recommended applications include piano, acoustic guitar, upright bass and other stringed instruments, wind instruments, drums, and percussion. Thanks to its enormous dynamic range, the D-01 is an ideal microphone for advanced sampling. Since all microphone parameters are remote controlled, settings may be auditioned from the listening position.

Further information on the Neumann digital microphone technology can be downloaded as PDF.

• Digital output (AES 42)
• DSP functions (e.g. overload protection, compressor/limiter, de-esser)
• All parameters may be stored in the microphone
• Remote controllable signal LEDs for communication with the artist
• Balanced sound in 15 directional patterns
• Extremely low self-noise (8 dB-A)

The digital Neumann microphone technology (Solution-D) will no longer be part of the Neumann product portfolio from 2021. Last order date for dealers will be 31 July 2020. After that, the products will be available as long as stock lasts. Service for all Solution-D hardware products is guaranteed until 31 Dec 2030.

The Remote Control Software (32 Bit, available also as VST plug-in) for the digital Neumann microphones is compatible with Windows 98SE – Windows 10 and Mac OS 8.6 – Mac OS X 10.14.6. There will be no further updates of the RCS software.
